Planet VIP-2100 [95/140] Debug info

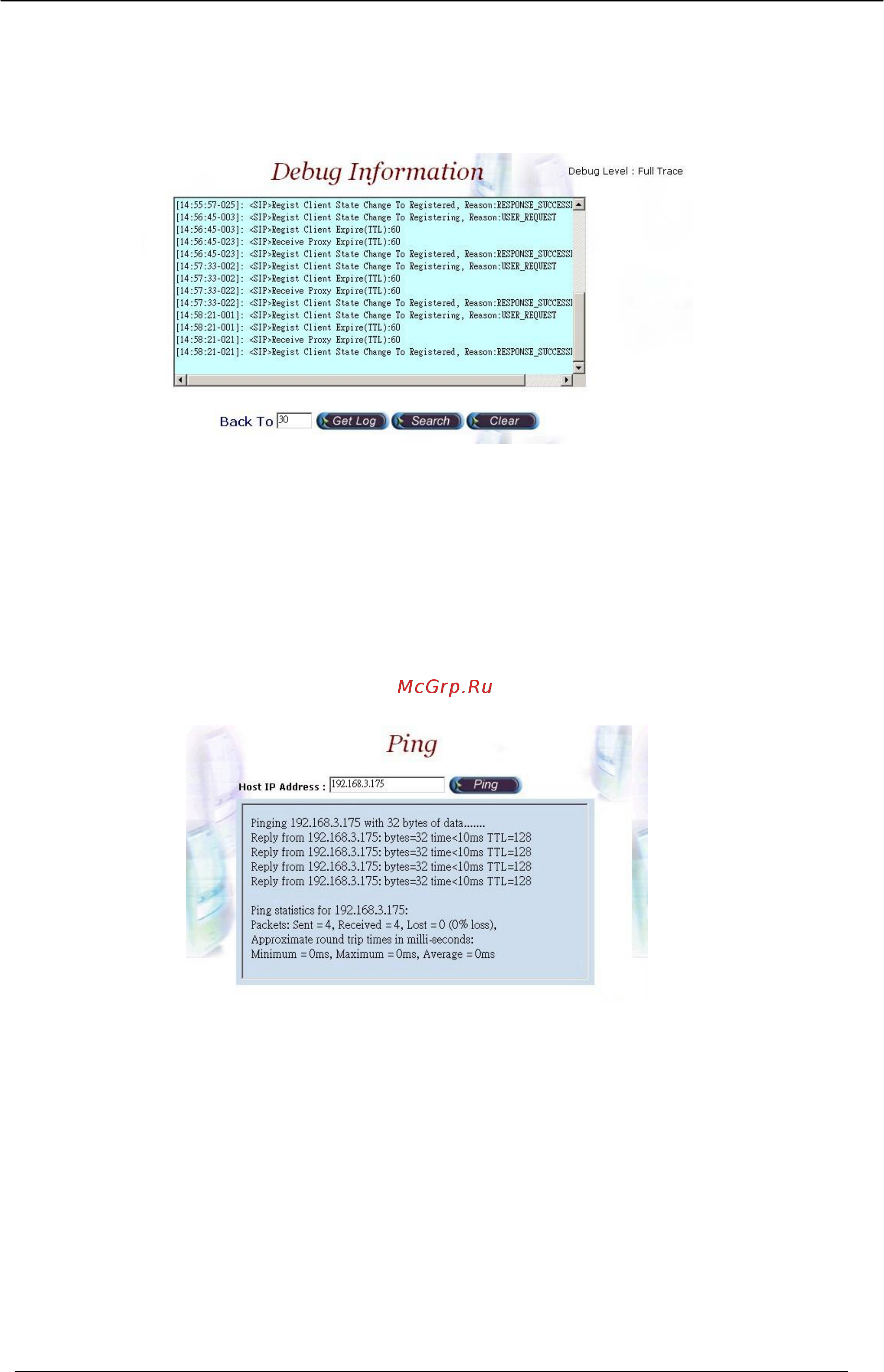

VIP-2100 User’s manual - 90 -

Debug Info

Start Path: Click “Monitor→Debug Info”

Figure 9.4-1

Filed Description:

• Get Log: Get debug log (-1~999)

• Search: Search debug logs

• Clear: Clear log

Ping

You can use the “Ping” to check an IP is active or not.

Start Path: Configuration→Ping

Figure 9.5-1

Field Description:

• Host IP Address: The IP address to ping
