VIP-2100 User’s manual - 73 -
Call Routing
The call routing can be used for hunting a PSTN trunk by prefix.
Start Path: Configuration→Routing Plan→Call Routing

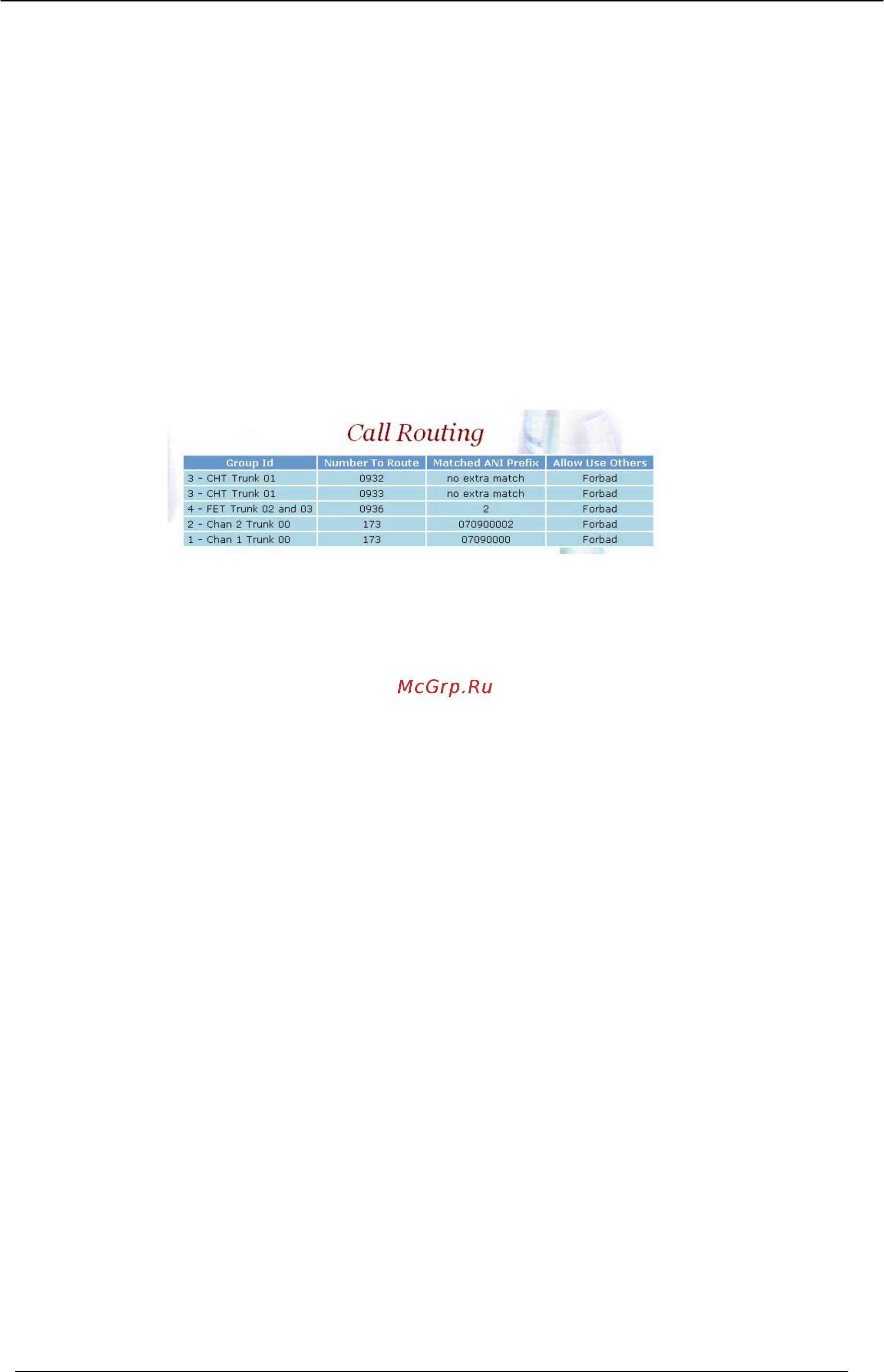

Figure 7.9-3
Parameters:
• Group ID: Select the T1/E1 according to the selection of Hunting Group
ID when dialed number is matched
• Number To Route: The dialed telephone number to be matched
• Matched ANI Prefix: Calling party number used to filter
• Allow Use Others: To select other T1/E1 trunk when all trunk are busy
at your desired Hunting Group.
o Allowed: The call will use other T1/E1 trunks which is not belong to
the selected hunting group
o Forbad: The call will be disconnected immediately
Radius Setting
When you have an external RADIUS server to do the AAA
(Authorization, Authentication and Accounting), enter the correct parameter to
the Radius setting. It must be used in call flow to take effect.
Start Path: Configuration→Radius Setting
