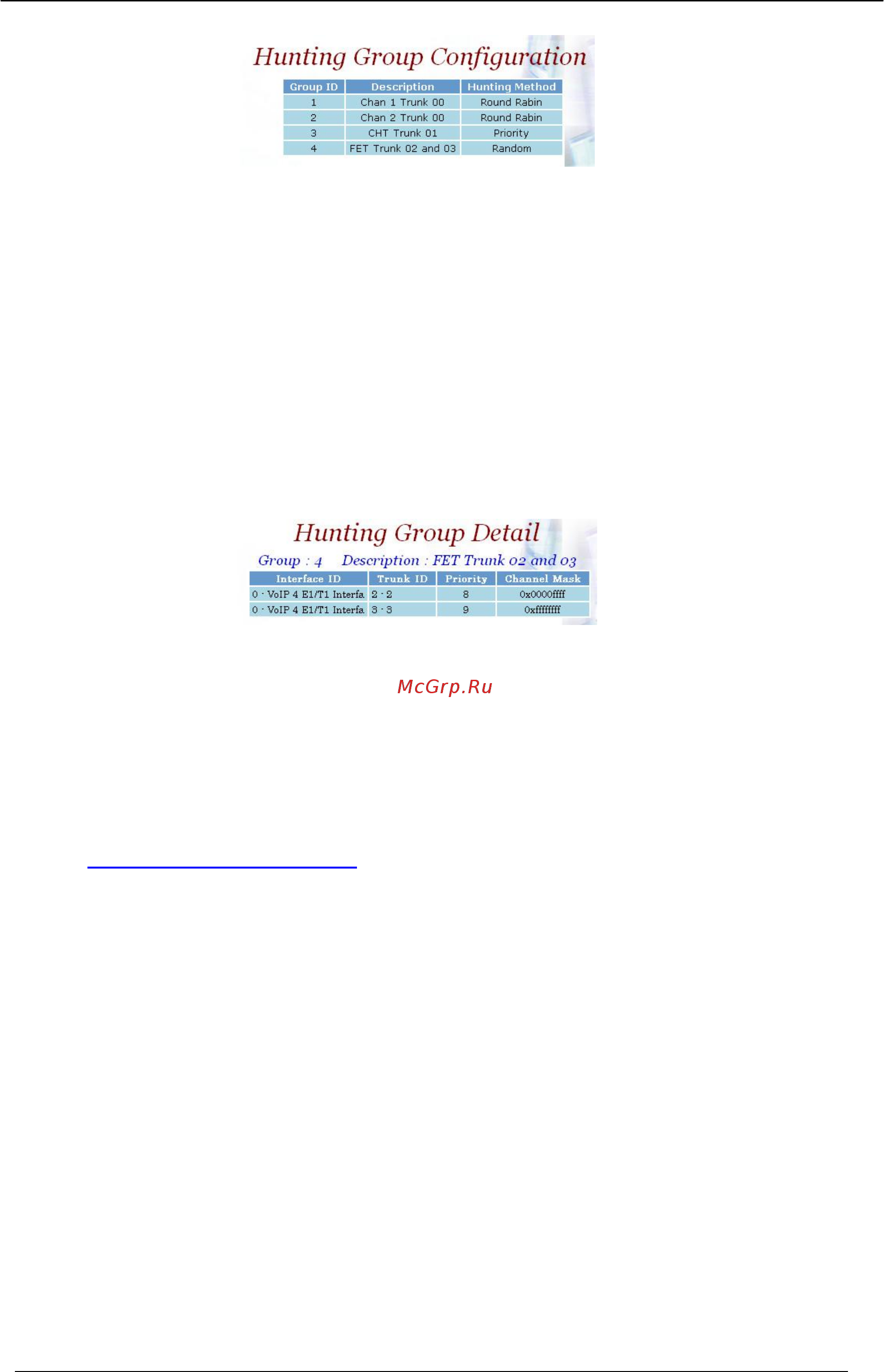

VIP-2100 User’s manual - 72 -
Figure 7.9-1
Parameters:
• Group ID: Hunting Group ID
• Description: Description of Hunting Group
• Hunting Method: Route selection
o Random: Random select a trunk within this hunting group
o Priority: Select a trunk by priority. (Priority 1 has lowest priority; 9
has highest priority)
o Round Robin: Call is hunting rotationally
Start Path: Configuration→Routing Plan→Hunting Group→Detail
Figure 7.9-2
Parameters:
Group: 4 Description: FET Trunk 02 and 03
• Interface ID: Interface ID
• Trunk ID: trunk id for group 4
• Priority: Trunk priority
• Channel Mask: Channel mask for incoming or outgoing calls (refer
T1/E1 Trunk Configuration)
J Note: When a Route Plan channels mask is cooperated to trunk
channel mask to decide the channel availity 17~31 channels are
available:
Example 1:
Trunk ID: 0 channel mask: 0xffffffff
Route Plan channel mask: 0x0000ffff
Available channel: 0x0000ffff (17~31) channels.
Example 2:
Trunk ID: 0 channel mask: 0xffff0000
Route Plan channel mask: 0xffc00000
Available channel: 0xffc00000 (1~9) channels.
