Planet VIP-2100 [92/140] Line summary status

VIP-2100 User’s manual - 87 -

Chapter 9 System Monitor

It provides a way to monitor the system status.

Line Summary Status

Show channel summary status.

Start Path: Monitor→Line Summary Status

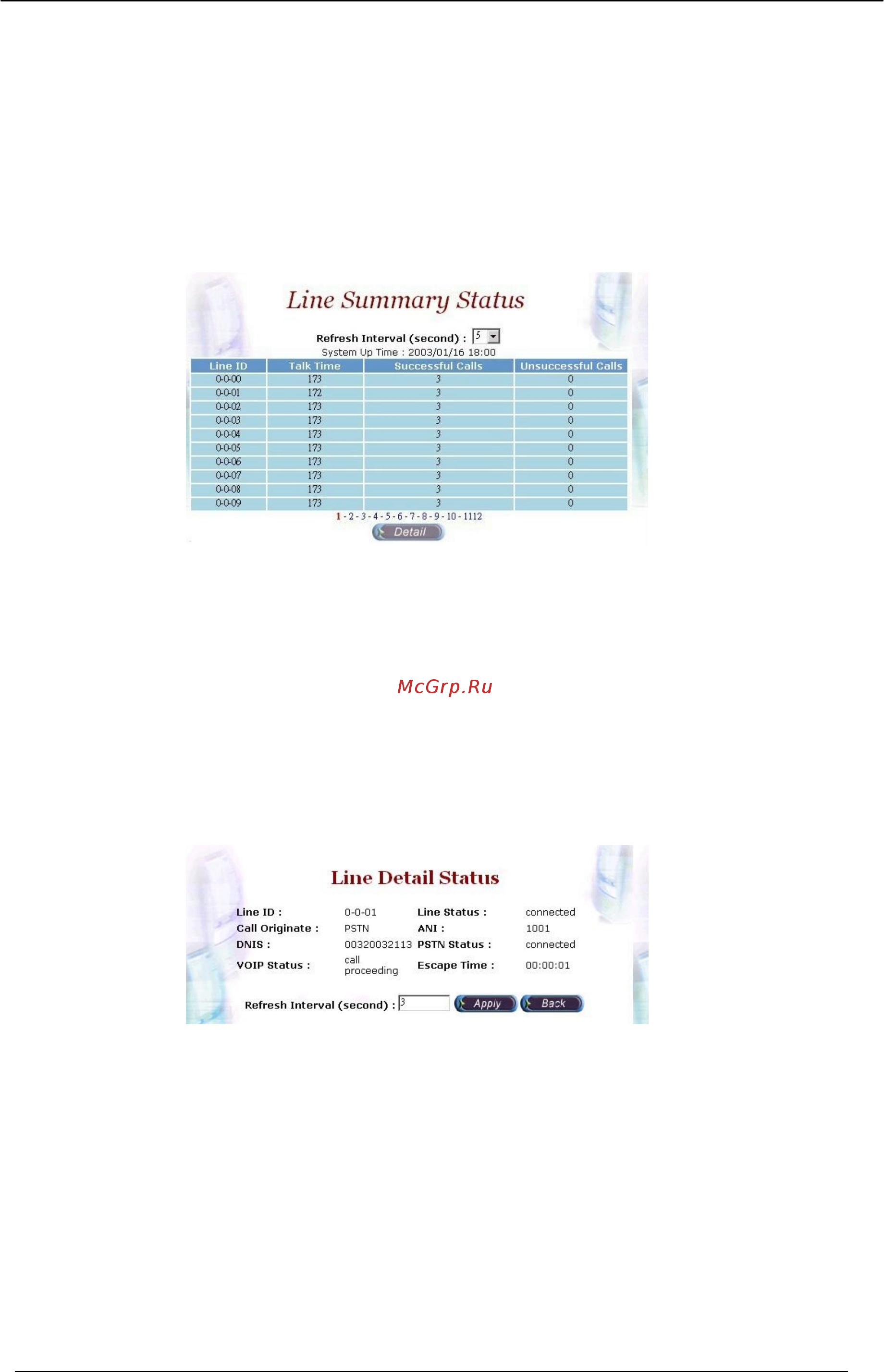

Figure 9.1-1

Field Description:

• Refresh Interval (second): Refresh interval time (1, 5, 10 seconds)

• Line ID: Line ID (format: Interface: trunk: channel)

• Talk Time: Total conversation time

• Successfully calls: Total successfully calls (connected calls)

• Unsuccessfully calls: Total unsuccessfully calls (unconnected calls)

See the line detail:

Selection the line and click Detail button as figure 9.1-2.

Figure 9.1-2

Refer to line detail for field description
