Planet VIP-2100 [49/140] H 23 configuration

VIP-2100 User’s manual - 44 -

H.323 Configuration

Step 1: Change Register To Gatekeeper to “No” to enable peer to peer

mode as

figure 5.1-1.

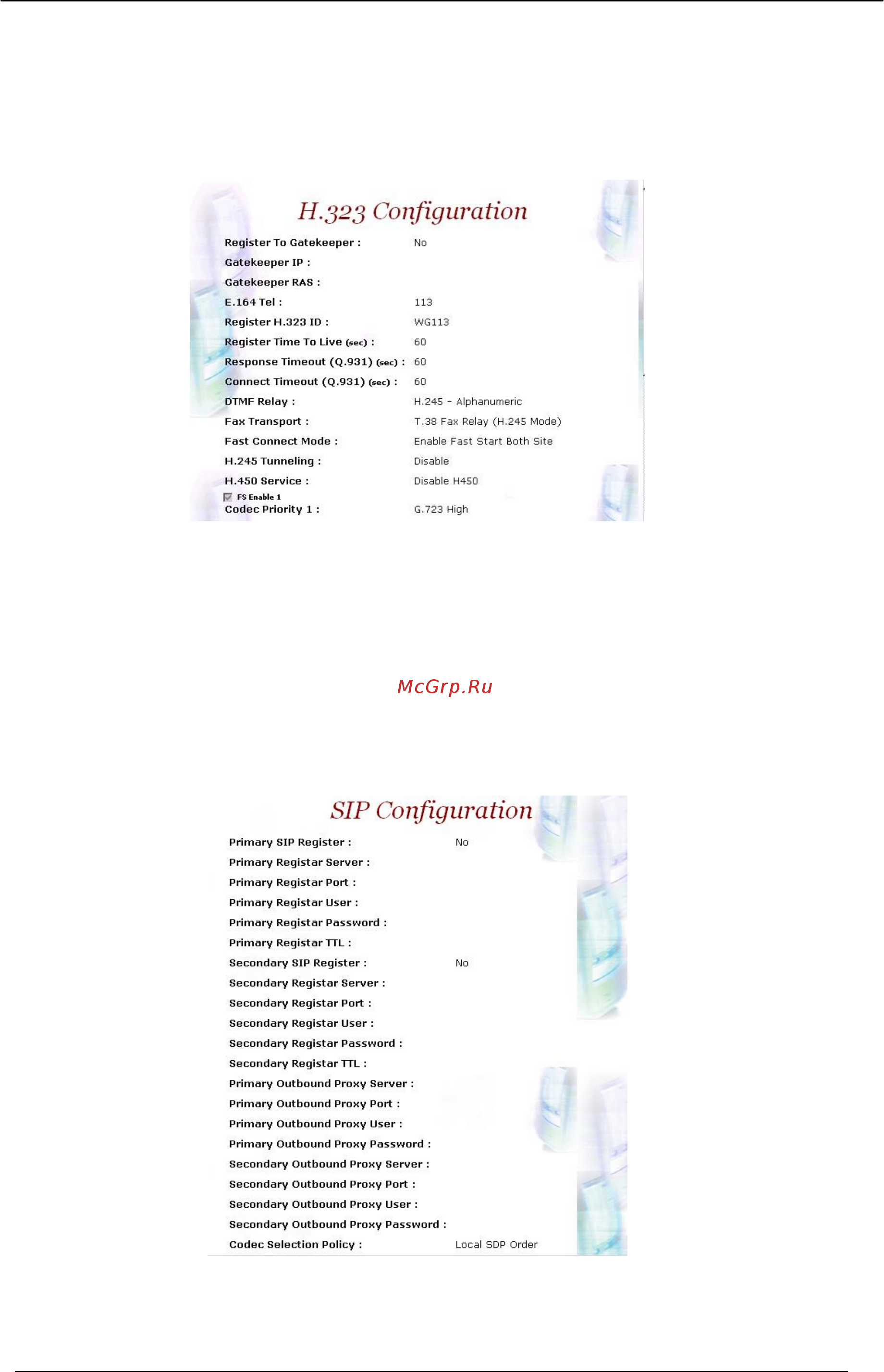

Figure 5.1-1

Frequency used parameters:

• Register to Gatekeeper: No

SIP Configuration

Step 1: Change SIP Register to “No” to enable peer to peer mode as figure

5.2-1.

Figure 5.2-1

Frequency used parameters:

• Primary SIP Register: No
