VIP-2100 User’s manual - 68 -

Access Control

Access Control list can be used to filter the calls forms the IP Network,

DNIS, and ANI. It must be used in call flow edit to take effect.

IP ACL

Start Path: Configuration→Access Control→IP ACL

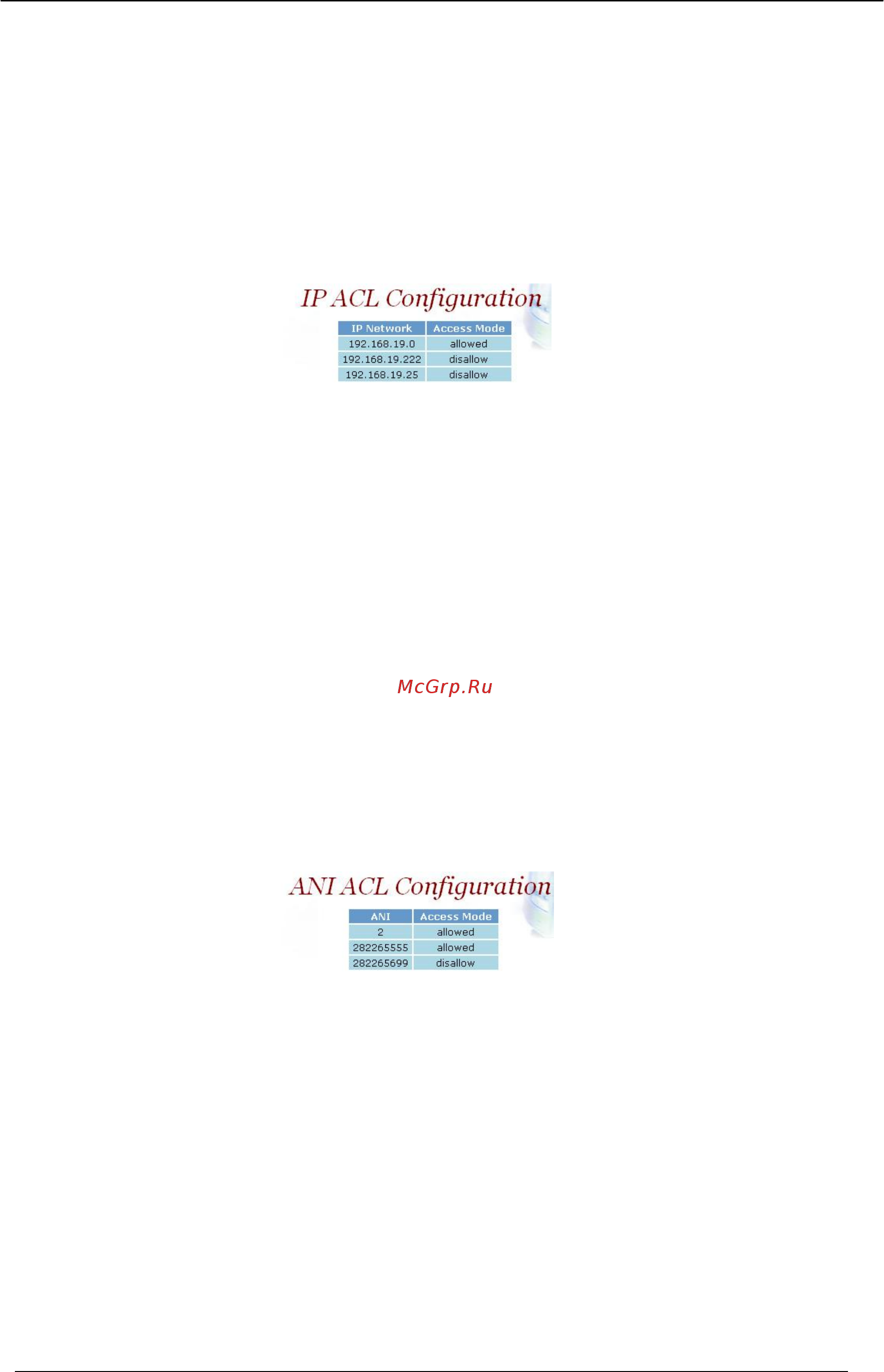

Figure 7.7-1

Parameters:

• IP Network: IP Address or prefix used to be filtered

• Access Mode:

o Allow: the inputs IP Network are allowed for calls.

o Disallow: The inputs IP Network are disallowed for calls.

☻Note: If in the system has both allowance and disallowance setup, the

system will check allowance first and disallowance later. If only

disallowance inputted all IP will allow to work except disallowed

network. If only allowance inputted, only those IP from

allowance list will work.

ANI ACL

Start Path: Configuration→Access Control→ANI ACL

Figure 7.7-2

Parameters:

• ANI: Calling party number used to filter

• Access Mode:

o Allow: the calling numbers are allowed for calls

o Disallow: The calling numbers are disallowed for calls

☻Note: If in the system has both allowance and disallowance setup, the

system will check allowance first and disallowance later. If only

disallowance inputted all ANI will allow to work except

disallowed ANI. If only allowance inputted, only those ANI from

allowance list will work.
