VIP-2100 User’s manual - 53 -

• Time Expired Notify: Seconds to be notifying caller before

communication expired. This function is used for Pre-Paid calling card

service and must cooperate with RADIUS Server.

• Almost Expired Tone: Communication expired notice tone selection

• Fast Response Timeout: The maximum times to wait for response. It’s

depended on the network speed.

• No Answer Timeout: The maximum the (in second) to wait the remote

party answer (pick up phone)

o Notify Tone#1:

o Notify Tone#2:

• Authentication Mode: Authentication by VIP-2100 or RADIUS

o Internal: Authentication building User ACL

o External: Authentication by RADIUS

o Ext. AAA Failure Opt: Bypass or disconnect incoming calls when

external

• Version: 5.1

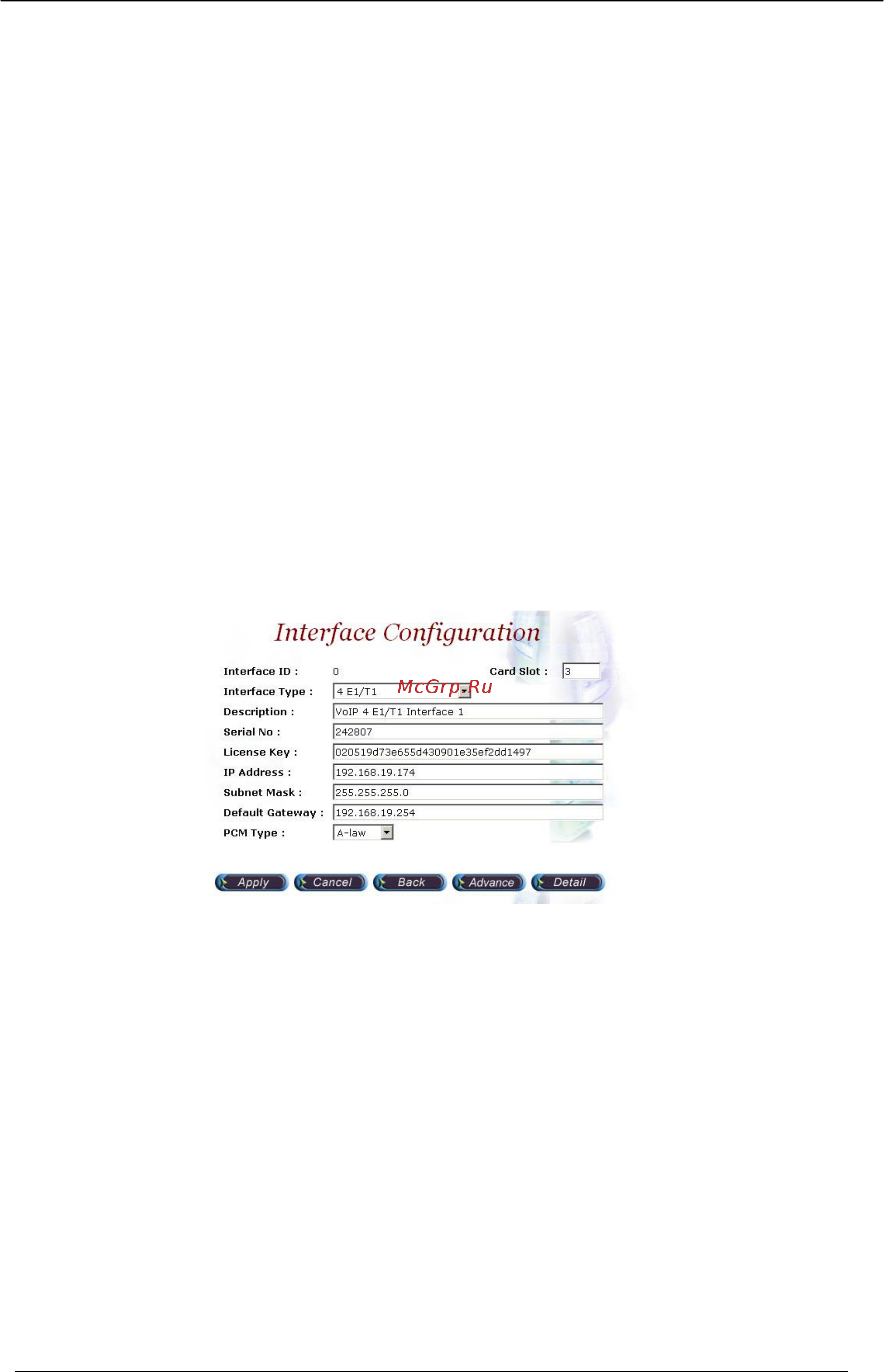

Interface Configuration

Start Path: Configuration→Interface

Figure 7.2-1

Basic Parameter Description:

• Interface ID: System parameter

• Card slot: System parameter

• Interface Type: System parameter

• Description: System parameter

• Serial No: System parameter

• License Key: System parameter

• IP Address: IP address used for voice RTP stream

• Subnet Mask: Submask (doesn’t support super class)

• Default Gateway: Default gateway for routing

• PCM Type: PCM type encoding, E1 A-law; T1 u-law
