VIP-2100 User’s manual - 54 -
Advance Interface Configuration:
Start Path: Configuration→Interface →Advance

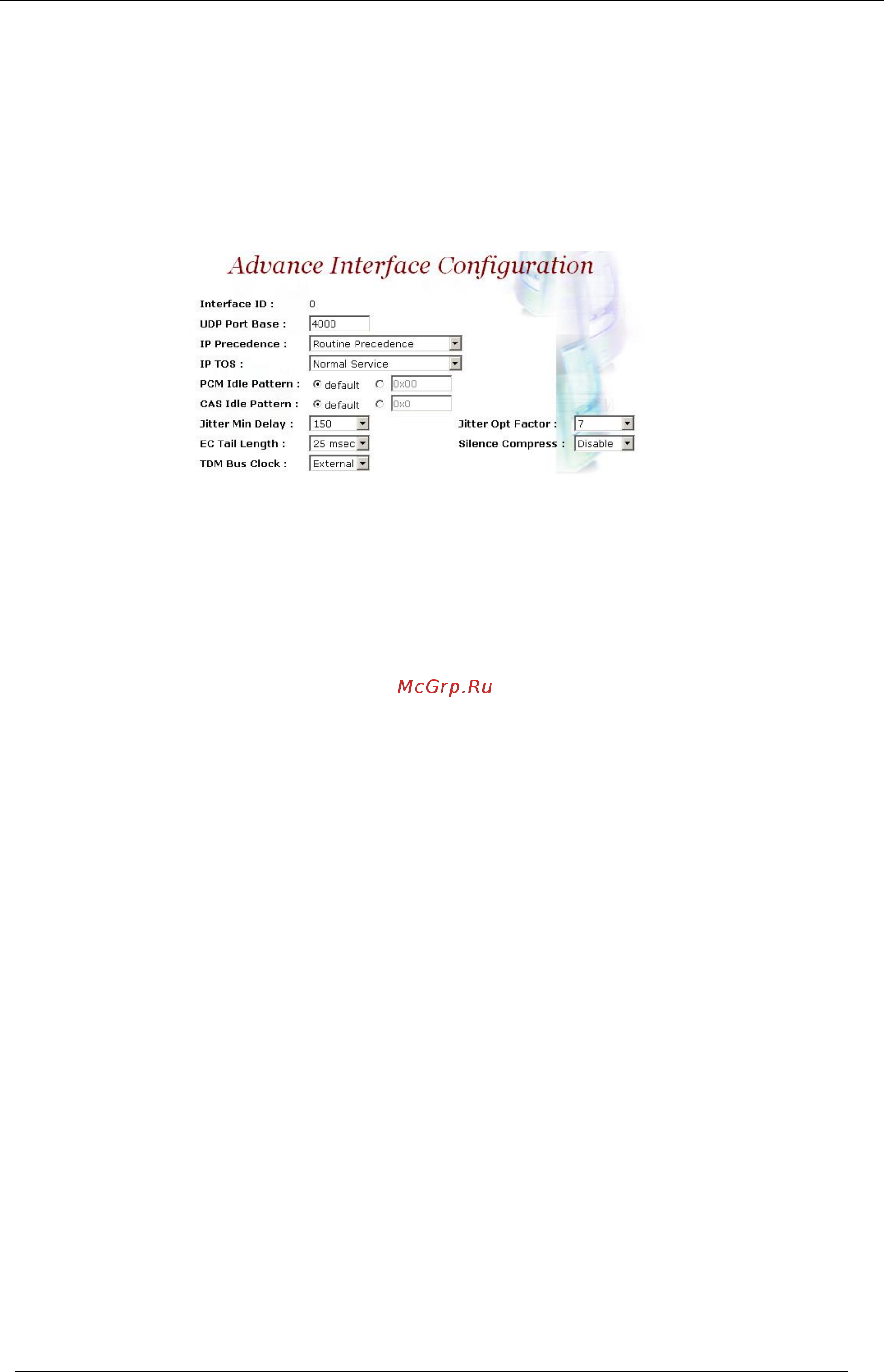

Figure 7.2-2
Advance Parameter Description:
• Interface ID: System parameter
• UDP Port Base: UDP port used for RTP stream, each channel needs 3
RTP ports and must be started by a multiple of 10
• IP Precedence: Voice package priority setting
o Routine Precedence
o Priority Precedence
o Immediate Precedence
o Flash Precedence
o Flash Override Precedence
o Critical Precedence
o Internetwork Precedence
o Network Precedence
• IP TOS: Top of Service with the following priority selection
o Normal Service
o Minimize Monetary
o Maximize Reliability
o Maximize Thought
o Minimize Delay
• PCM Idle Pattern: This pattern will be sending on each B channel PCM
time slot when the channel is idle (not connected). The default value
for A-Law is 0xff and for Mu-Law is 0x55. You only change it when
SWITCH need.
• CAS Idle Pattern: When channel is idle, ABCD (CAS) pattern to be
applied CAS signaling bus
• Jitter Min Delay: The minimum delay time of Jitter buffer. The range is 0
to 150ms. Default value is 150ms. Which has better voice quality but
the delay time will be long.
• Jitter Opt Factor: Jitter buffer optimization factor from 0 to 12. The
default value is 7. Set to 0 will have lowest voice delay but have bad
