VIP-2100 User’s manual - 25 -

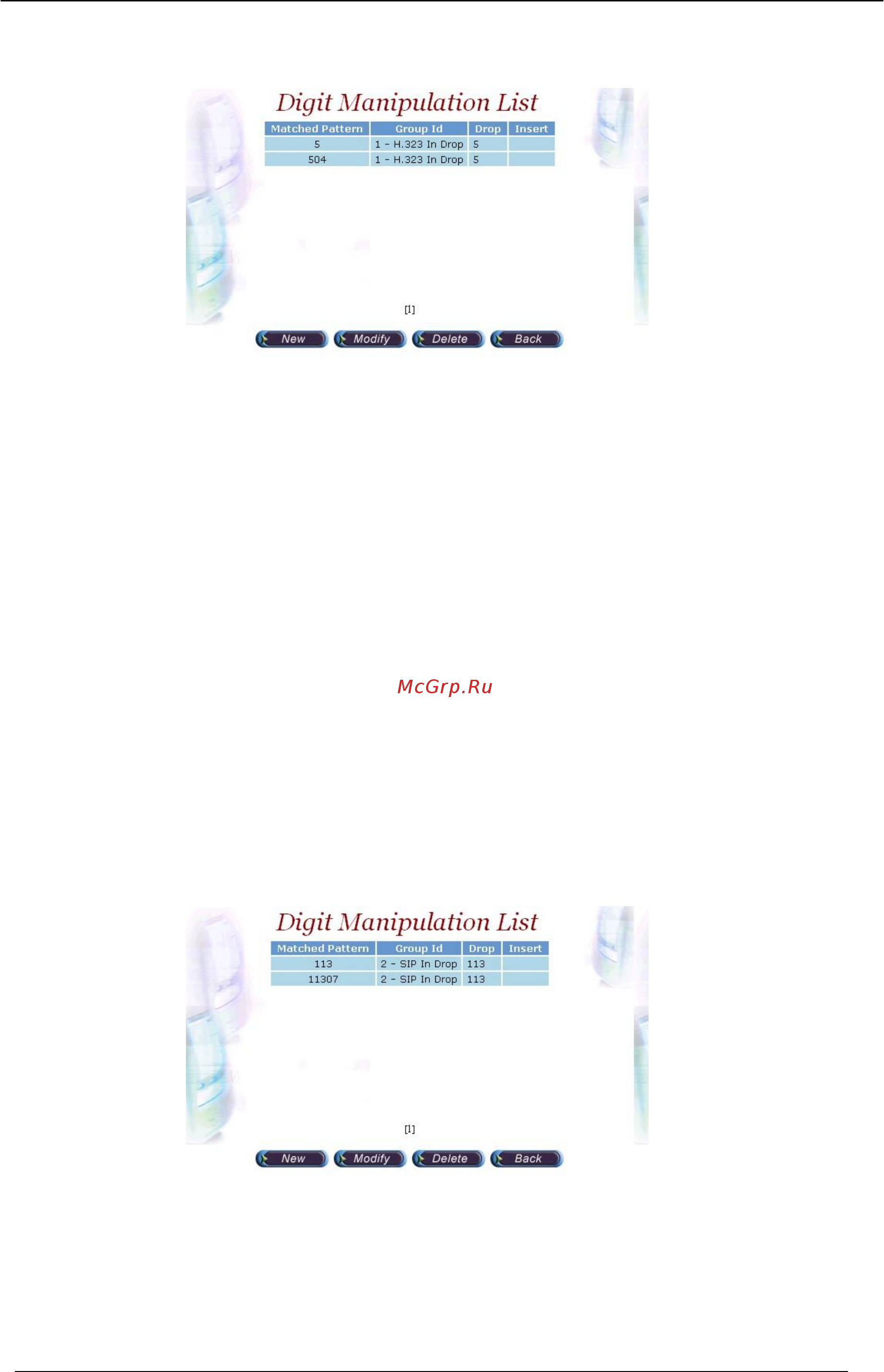

Step 5: Create a new H.323 DM Group “1” and DM detail is show as follows:

Figure 3.5-5

H.323 Incoming Call DM Setting:

• Matched Pattern: 5 (pattern to be matched)

• Group ID: 1-H323 In Drop (belong to this DM group)

• Drop: 5 (drop digits)

H.323 incoming call

↓

Dialed number: 582265699

↓

Match the pattern 5

↓

Delete 5 (Drop)

↓

New dialed number becomes 82265699

Step 5: Also create a new SIP DM Group ‘2” and DM detail is show as follows:

Figure 3.5-6

SIP Incoming Call DM Setting:

• Matched Pattern: 113 (pattern to be matched)

• Group ID: 1-SIP In Drop (belong to this DM group)
