VIP-2100 User’s manual - 35 -

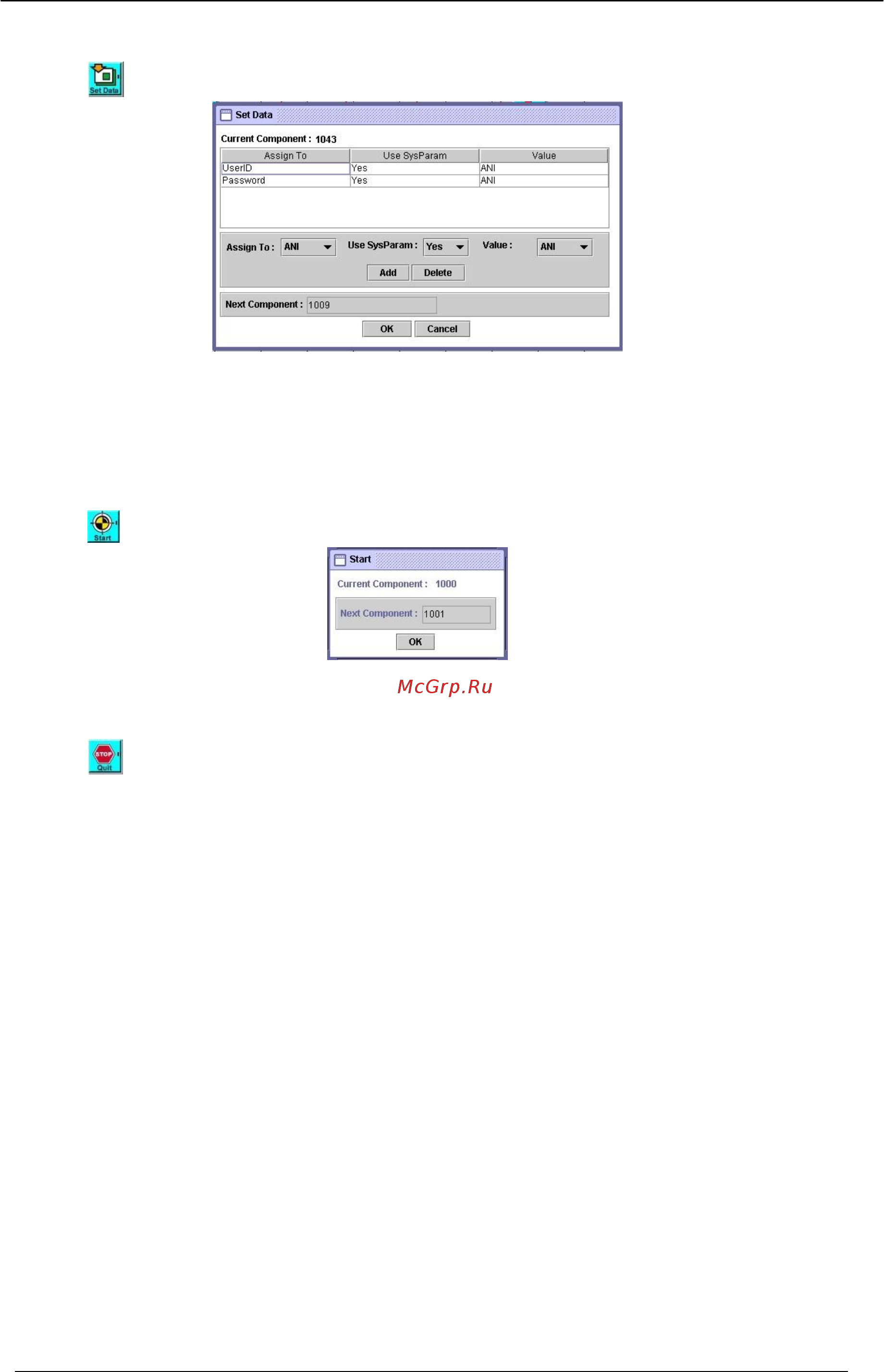

• Set Data: Assign value to a variable

o Assign To: Assigned variable

o Use SysParam: Use system parameter to replace or not

o Value: ANI, DNIS, User ID or other digits

• Start: Call flow start

o Next Component

• Quit: Disconnect calls
