VIP-2100 User’s manual - 80 -

☻Note:

1. You mast has a sound card in your PC to record the voice. You

need to set Network security in order to execute this recording.

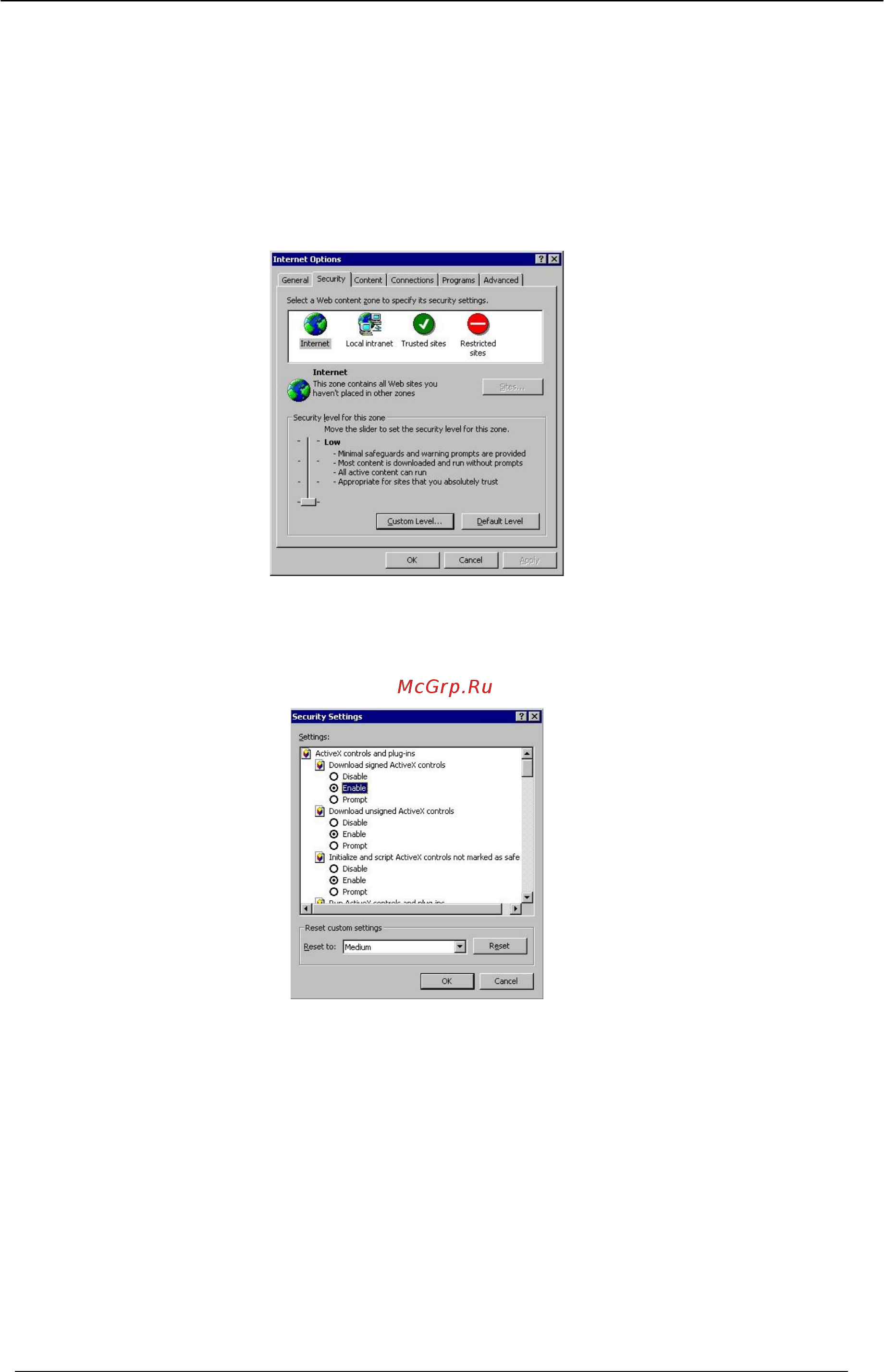

Click Tool

→

Internet Option

→

Security

→

Custom Level.

2. Enable the following security to active setting:

Voice prompt editor:

- Download unsigned ActiveX control: Enable

- Initialize and script ActiveX control not marked as safe: Enable
