Wireless Subscriber Gateway
101

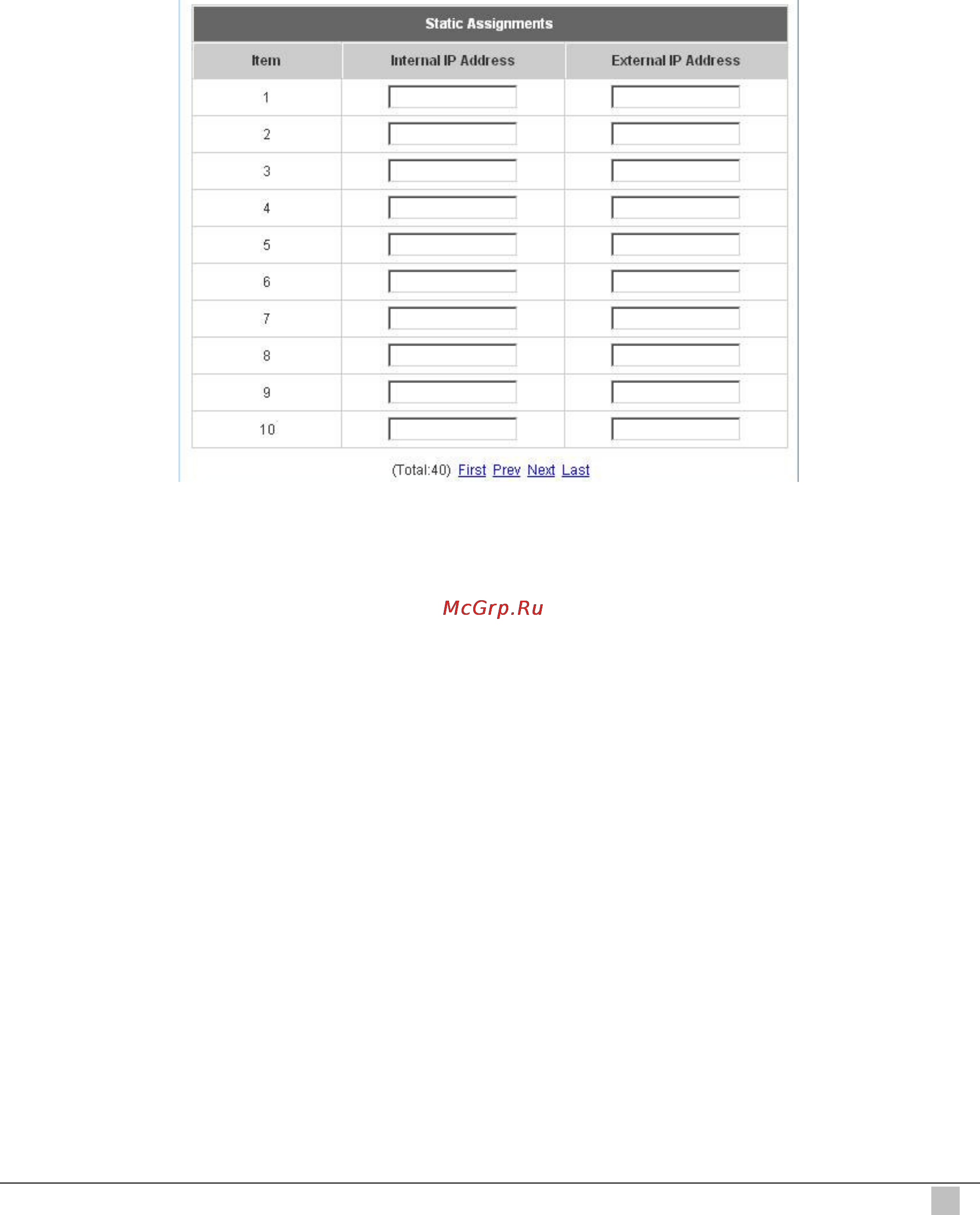

Static Assignments
A computer within the Static Assignment list is unprotected by firewall and typically all port
accesses are routed through to that computer. A router will forward all traffic to the computer
specified in the Static Assignment list if it does not otherwise have a rule for how to forward
traffic on a given port. There are 40 sets of static Internal IP Address and External IP Address
available. These static IP addresses can be set to the any host which itself needs a static IP
address to access the network through WAN port. These settings will become effective
immediately after clicking the Apply button.
