WSG-404 User Guide
36

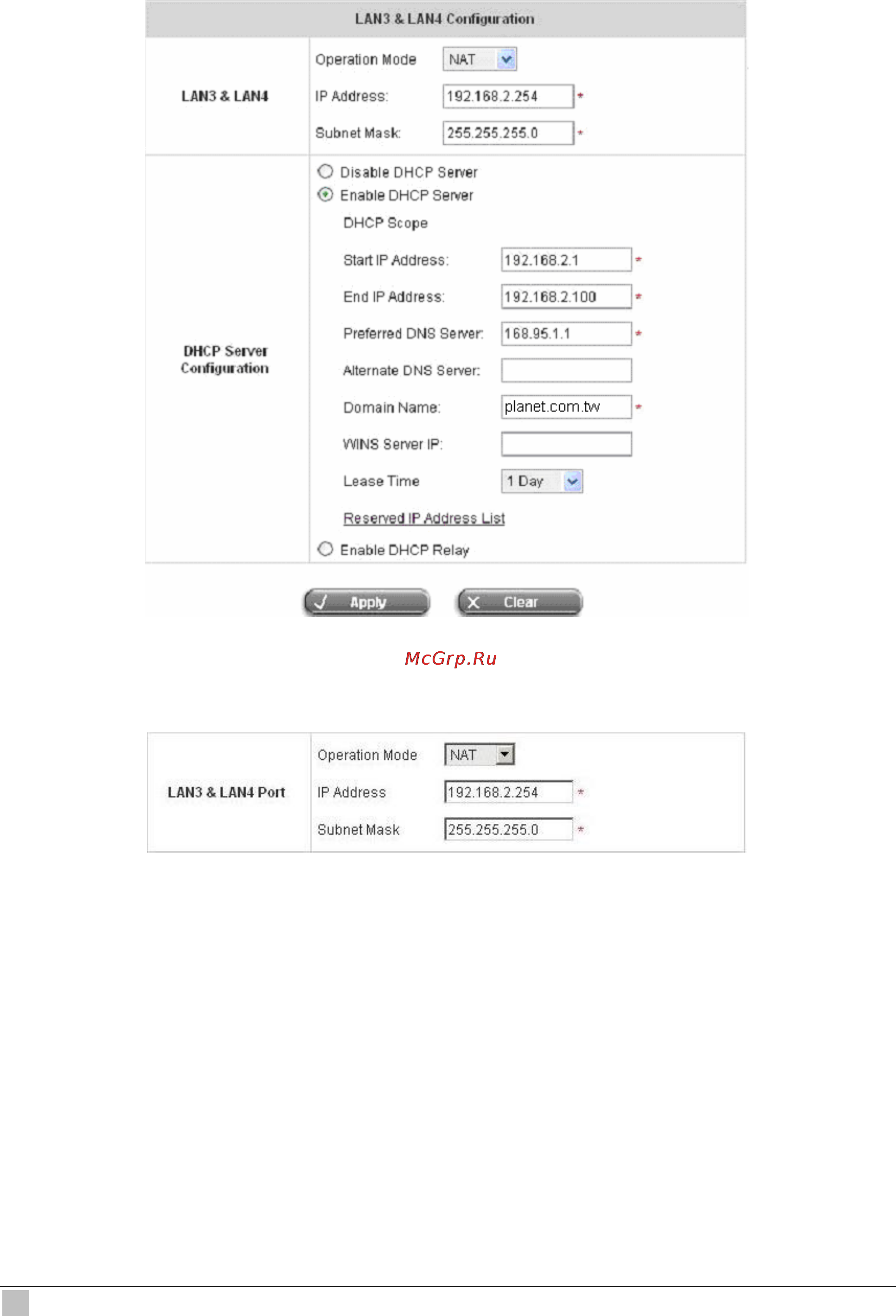

3.1.5 LAN3 & LAN4 Configuration
In this section, set the related configuration for LAN3/LAN4 port and DHCP server.
LAN3 & LAN4 Port
Operation Mode: Choose one of the two modes, NAT mode and Router mode, by the
requirements.
IP Address: Enter the desired IP address for the LAN3 & LAN4 port.
Subnet Mask: Enter the desired subnet mask for the LAN3 & LAN4 port.
