WSG-404 User Guide
74
Trans Full Name: When enabled, the ID and postfix will be transferred to the RADIUS server for
authentication. When disabled, only the ID will be transferred to RADIUS server for
authentication.
NASID: Enter the NASID of the PLANET WSG-404 for the external RADIUS authentication
server.
Server IP: Enter the IP address/domain name of the RADIUS server.
Authentication Port: Enter the authentication port of the RADIUS server and the default value
is 1812.
Accounting Port: Enter the accounting port of the RADIUS server and the default value is
1813.
Secret Key: Enter the key for encryption and decryption.
Accounting Service: Select this to enable or disable the “Accounting Service” for accounting
capabilities.
Authentication Protocol: There are two methods, CHAP and PAP for selection.
3.2.1.4 Authentication Method - LDAP

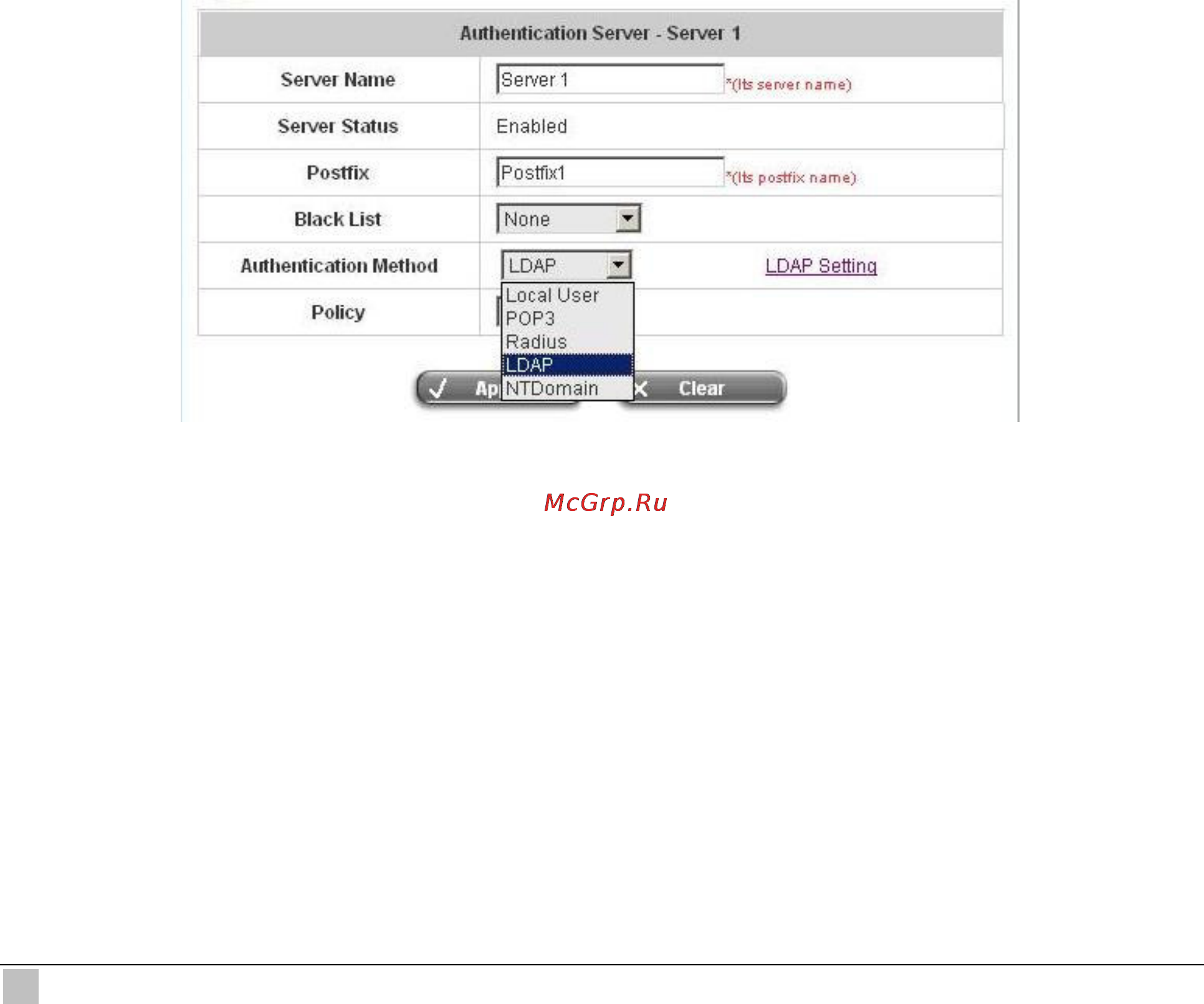

Choose “LDAP” in the Authentication Method field, the hyperlink beside the pull-down menu will
become “LDAP Setting”.
