WSG-404 User Guide
118

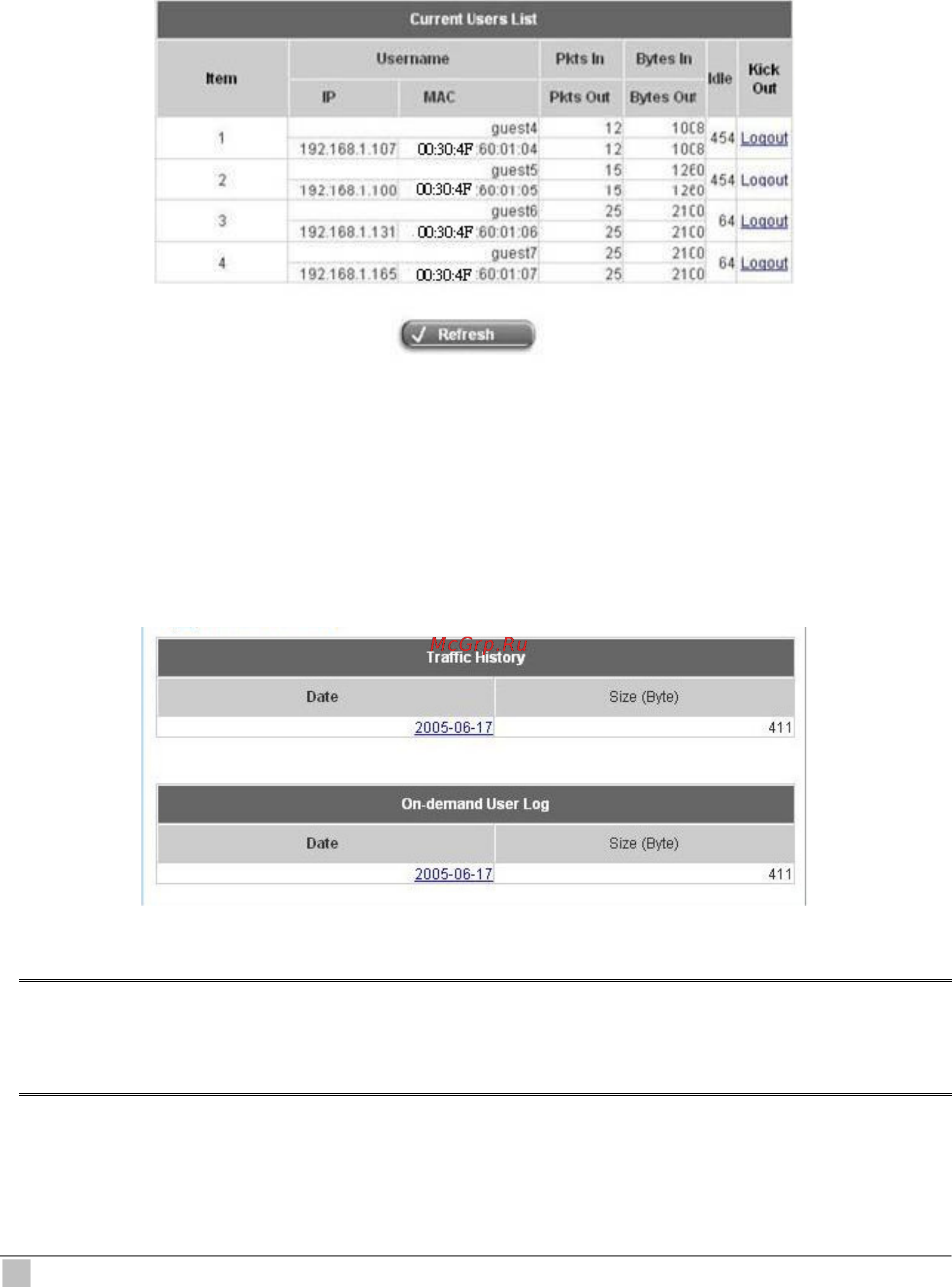

3.5.3 Concurrent Users
In this function, each online user’s information including Username, IP Address, MAC Address,
Pkts In, Bytes In, Pkts Out, Bytes Out, Idle and kick Out can be obtained. Administrator can use
this function to force a specific online user to log out. Click the hyperlink of Logout next to the online
user’s name to logout that particular user. Click Refresh to renew the current users list.
3.5.4 Traffic History
This function is used to check the history of PLANET WSG-404. The history of each day will be
saved separately in the DRAM for 3 days.
Note:
Since the history is saved in the DRAM, if you need to restart the system and also keep the
history, then please manually copy and save the information before restarting.
