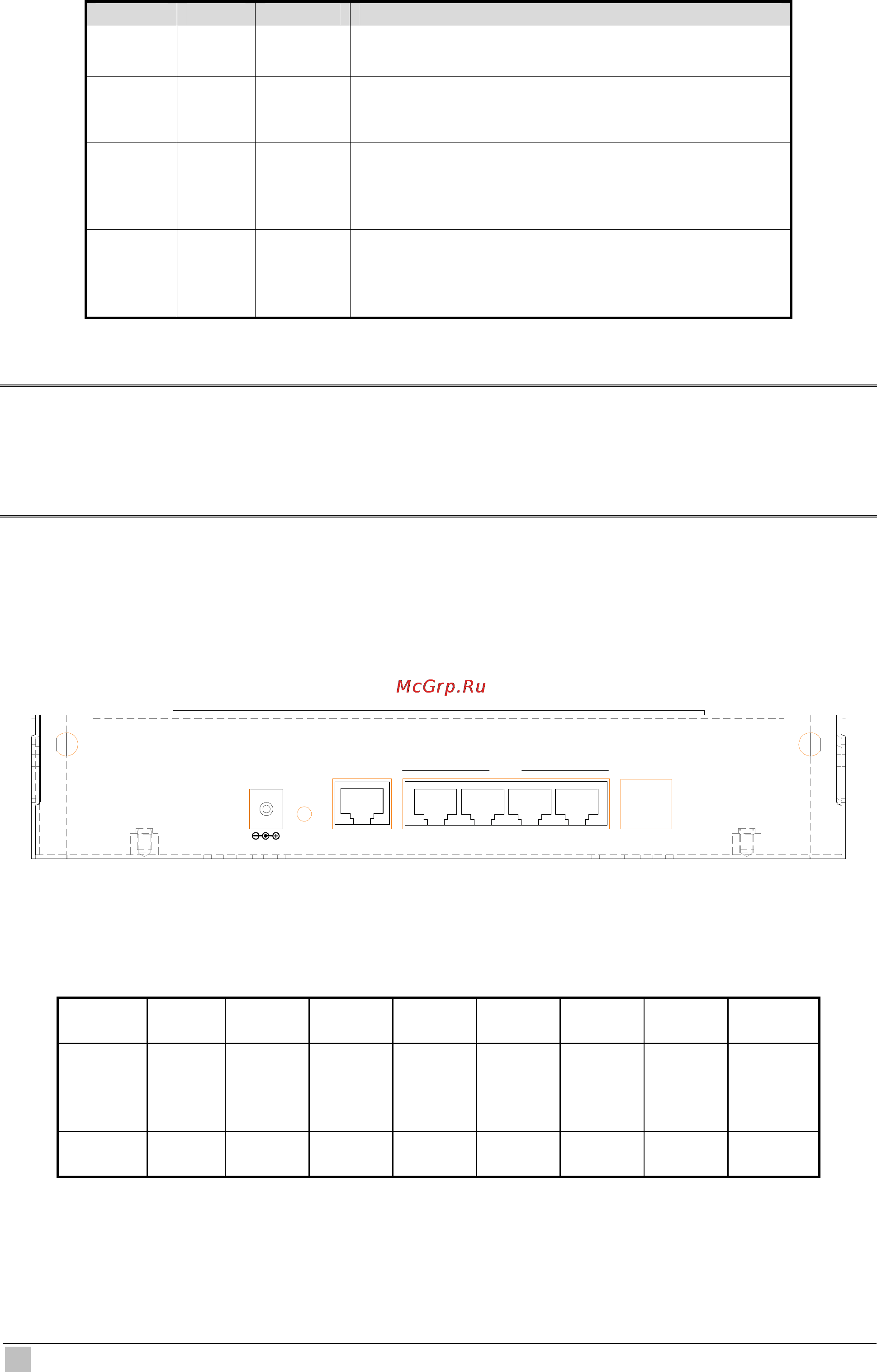

![Planet WSG-404 [8/146] Rear panel](/views2/1071665/page8/bg8.png)
WSG-404 User Guide
8
LEDs Indication
LED Color
Status Description
PWR Green
Off
On
The device is turned off
The device is turned on
WLAN Green
Off
On
Flashing
The wireless is not ready
The wireless is ready
The wireless data transmission
WAN Green
Off
On
Flashing
The WAN is not connected
The WAN has a successful (10/100Mbps)
Ethernet connection
The WAN is sending or receiving packet
LAN
1~4
Green
Off
On
Flashing
The LAN is not connected
The LAN has a successful (10/100Mbps)
Ethernet connection
The LAN is sending or receiving packet
Note:
1. Use only the bundled DC adapter for the power system, other power adapter could damage the
device permantly.
2. During the firmware upgrade process, please do not power off the device, otherwise it could
damage the device permantly.
1.4.2 Rear Panel
The rear panel of the WSG-404 is shown below.
12V DC
RESET
WAN ConsoleLAN
1 2 3 4
Figure 1-4 WSG-404 Rear Panel
Port Indication
Powe
r
Reset
WAN LAN 1
LAN 2
LAN 3
LAN 4
Consol
e
Printed
on
Housin
g
12V
DC
RESE
T
WAN 1 2 3 4
Consol
e
Interfac
e
Power
Button
RJ-45
RJ-45
RJ-45
RJ-45
RJ-45
RJ-11
