WSG-404 User Guide
28

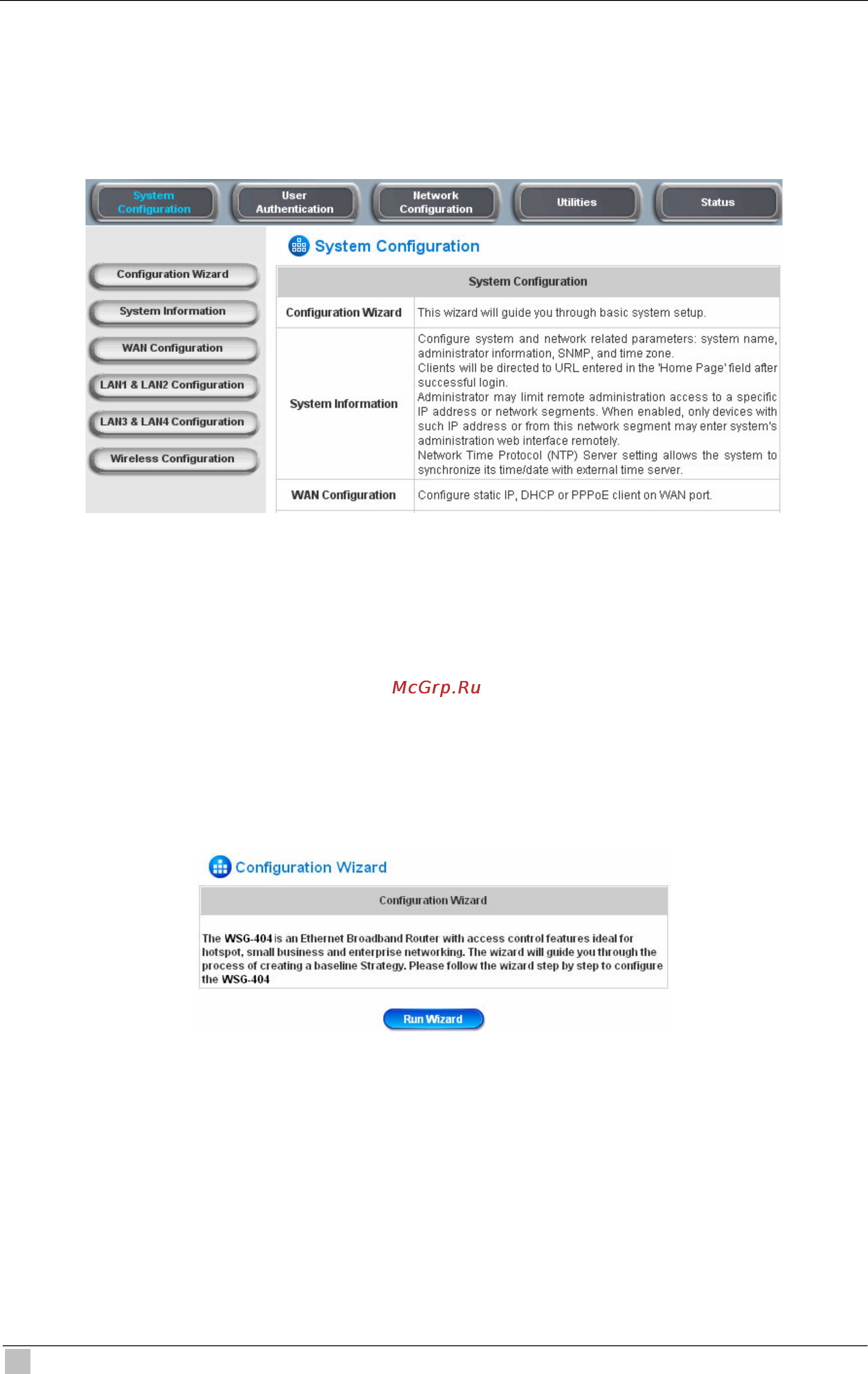

3.1 System Configuration
This section includes the following functions:
Configuration Wizard, System Information, WAN Configuration, LAN1 & LAN2 Configuration,
LAN3 & LAN4 Configuration and Wireless Configuration.
3.1.1 Configuration Wizard
There are two ways to configure the system: using Configuration Wizard or change the setting by
demands manually. The Configuration Wizard has 7 steps providing a simple and easy way to go
through the basic setups of PLANET WSG-404 and is served as Quick Configuration. Please
refer to 2.3.1 Quick Configuration for the introduction and description of Configuration Wizard.
