Wireless Subscriber Gateway
33

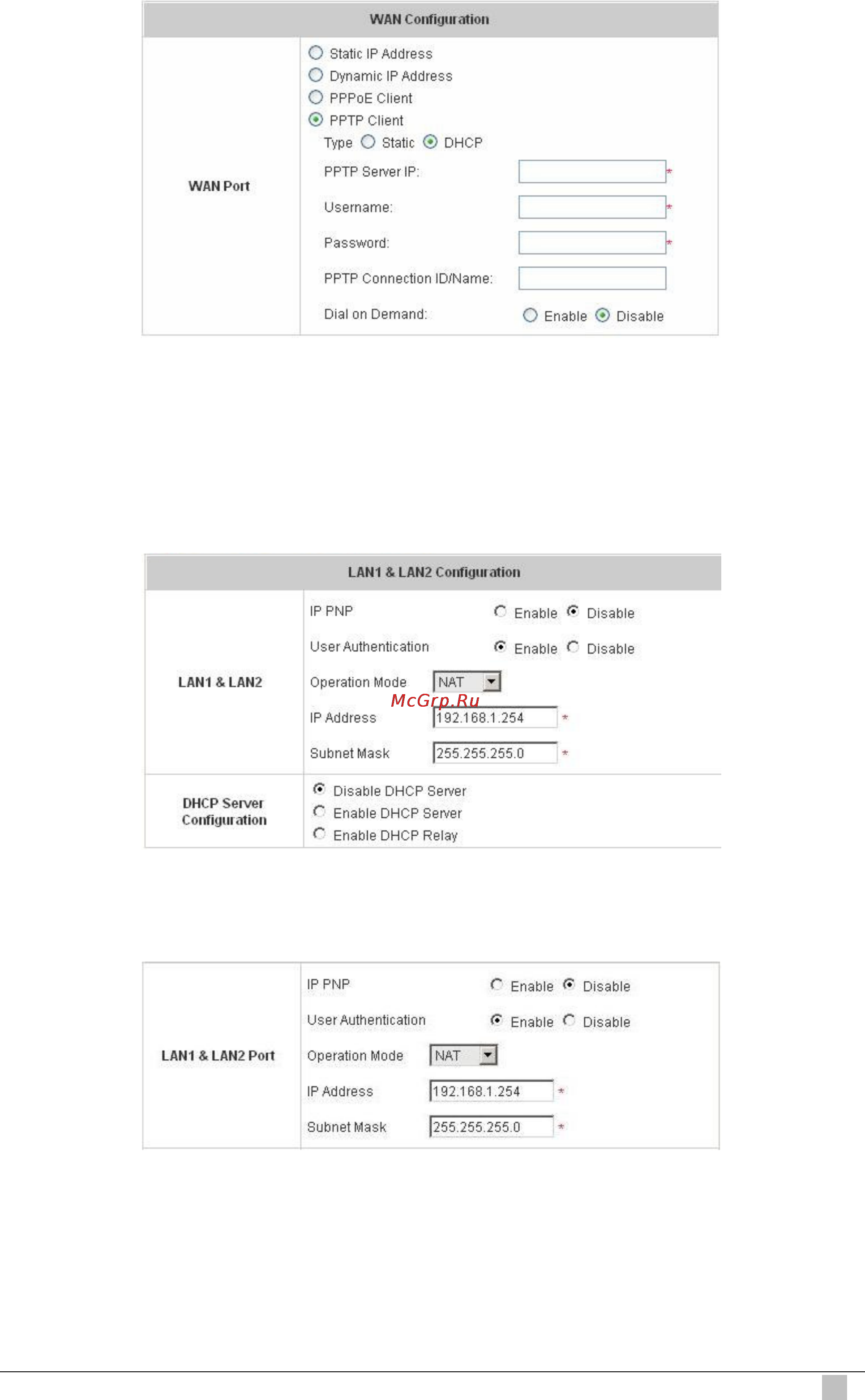

3.1.4 LAN1 & LAN2 Configuration
User authentication for the two LAN ports can be enabled or disabled.
LAN1 & LAN2 Port
IP PNP: Users can use static IP address to connect to the system. Regardless of what the IP
address at the user end is, users can still be authenticated through PLANET WSG-404 and
access the network.
