WSG-404 User Guide
32

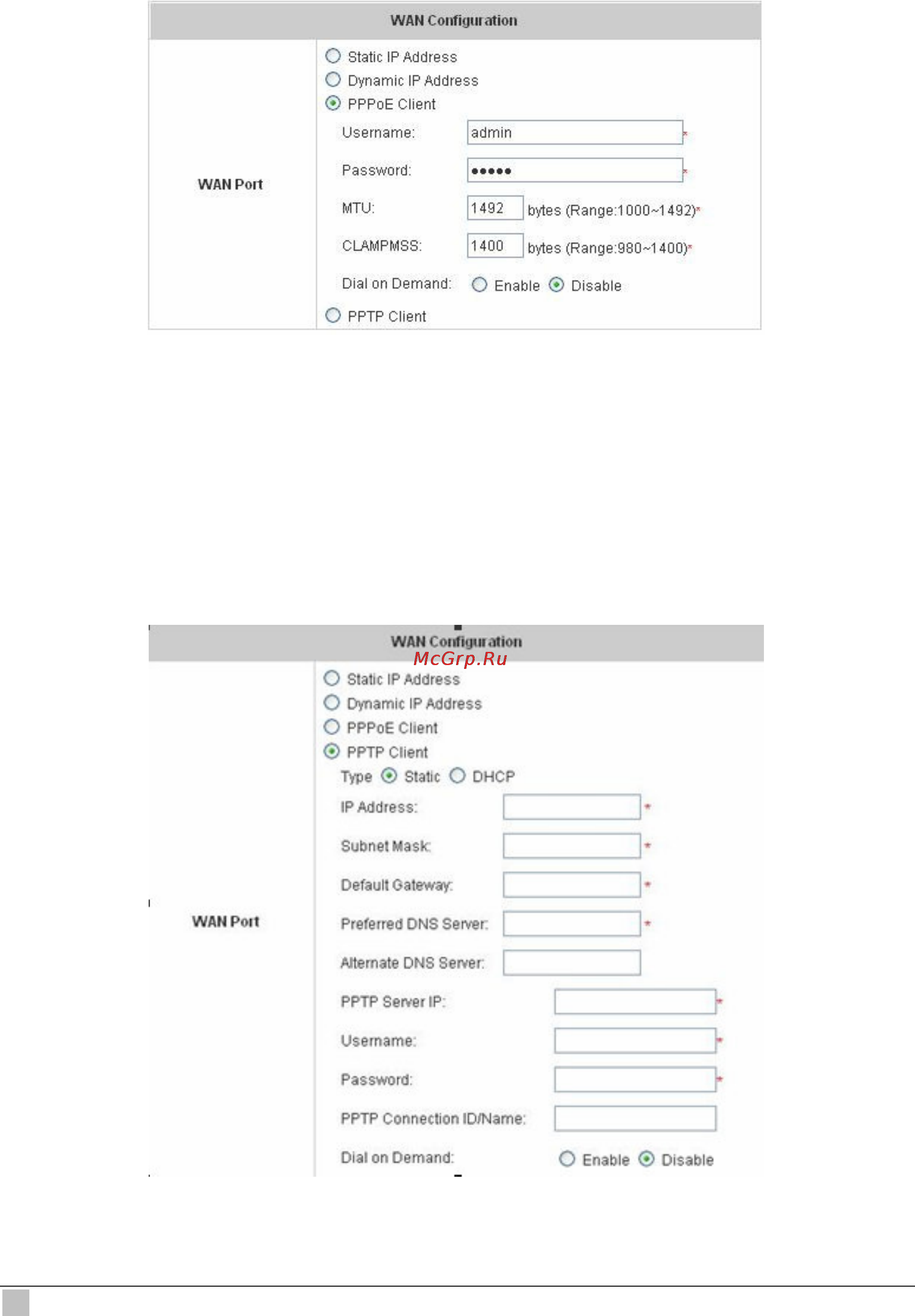

PPPoE Client: When selecting PPPoE to connect to the network, please set the “User Name”,
“Password”, “MTU” and “CLAMPMSS”. There is a Dial on demand function under PPPoE. If
this function is enabled, a Maximum Idle Time can be set. When the idle time is reached, the
system will automatically disconnect itself.
PPTP Client: Select STATIC to specify the IP address of the PPTP Client manually or select
DHCP to get the IP address automatically. The fields with red asterisks are required to be filled
in. There is a Dial on demand function under PPPoE. If this function is enabled, a Maximum
Idle Time can be set. When the idle time is reached, the system will automatically disconnect
itself.
