WSG-404 User Guide
110

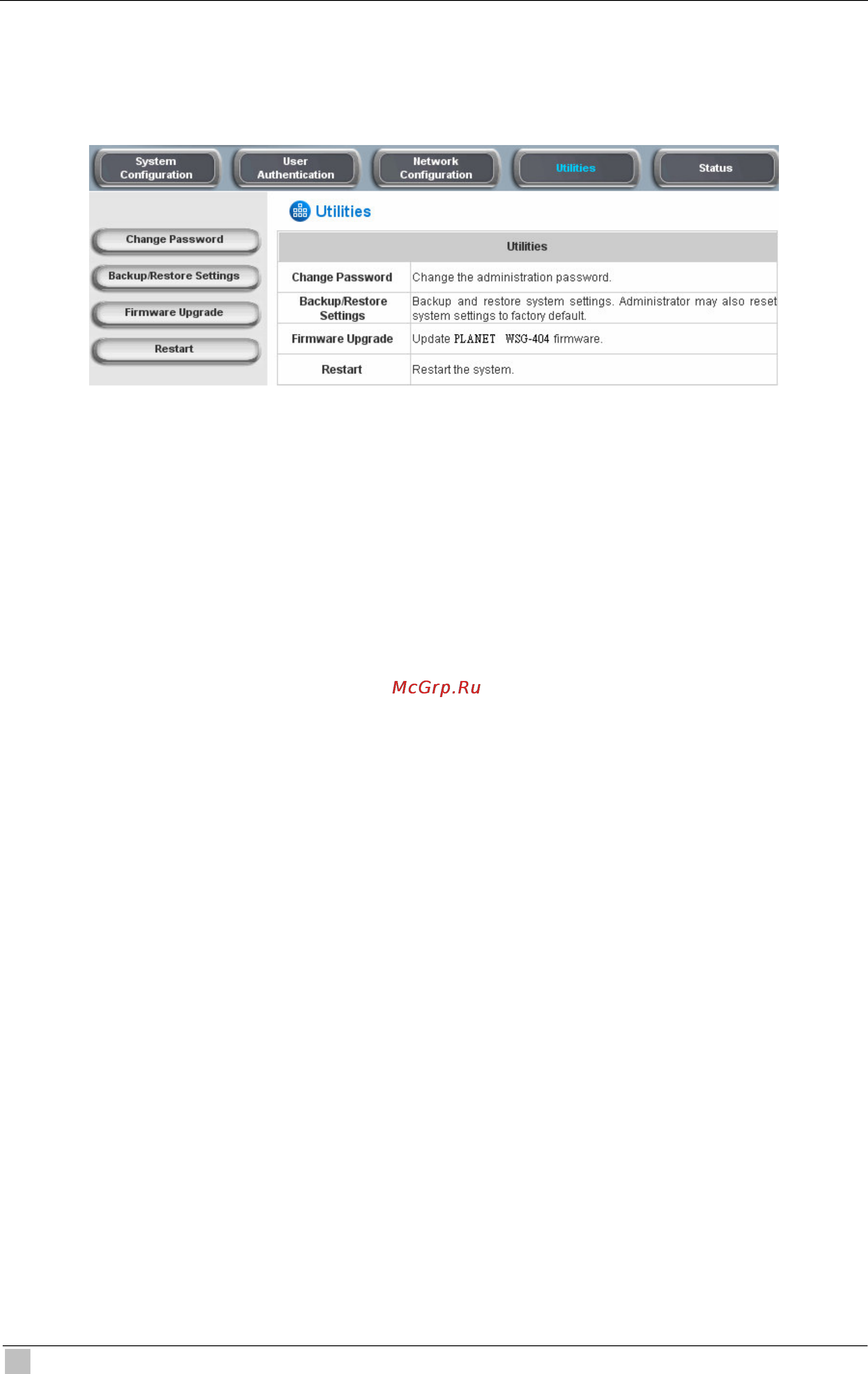

3.4 Utilities
This section provides four utilities to customize and maintain the system including Change
Password, Backup/Restore Setting, Firmware Upgrade and Restart.
3.4.1 Change Password
There are three levels of authorities to use: admin, manager or operator. The default usernames
and passwords are as follow:
Admin: The administrator can access all configuration pages of the PLANET WSG-404.
User Name: admin
Password: admin
Manager: The manager can only access the configuration pages under User Authentication to
manage the user accounts, but has no permission to change the settings of the profiles for Firewall,
Specific Route and Schedule.
User Name: manager
Password: manager
Operator: The operator can only access the configuration page of Create On-demand User to
create and print out the new on-demand user accounts.
User Name: operator
Password: operator
