Wireless Subscriber Gateway
119
If the History Email has been entered under the Notify Configuration page, then the system will
automatically send out the history information to that email address.

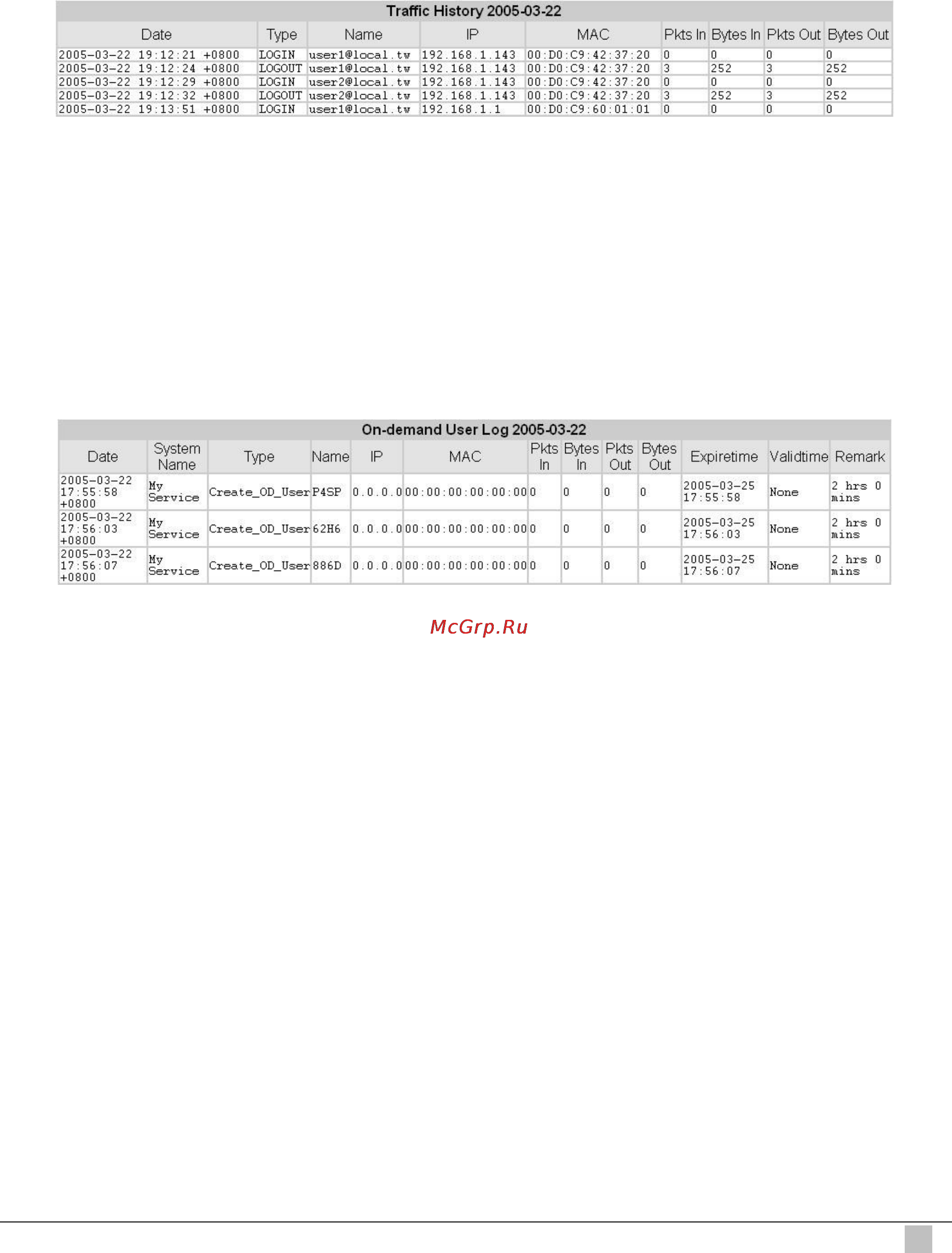

Traffic History
As shown in the following figure, each line is a traffic history record consisting of 9 fields, Date,
Type, Name, IP, MAC, Pkts In, Bytes In, Pkts Out, and Bytes Out, of user activities.
On-demand User Log
As shown in the following figure, each line is a on-demand user log record consisting of 13 fields,
Date, System Name, Type, Name, IP, MAC, Pkts In, Bytes In, Pkts Out, Bytes Out,
Expiretime, Validtime and Remark, of user activities.
