WSG-404 User Guide
106

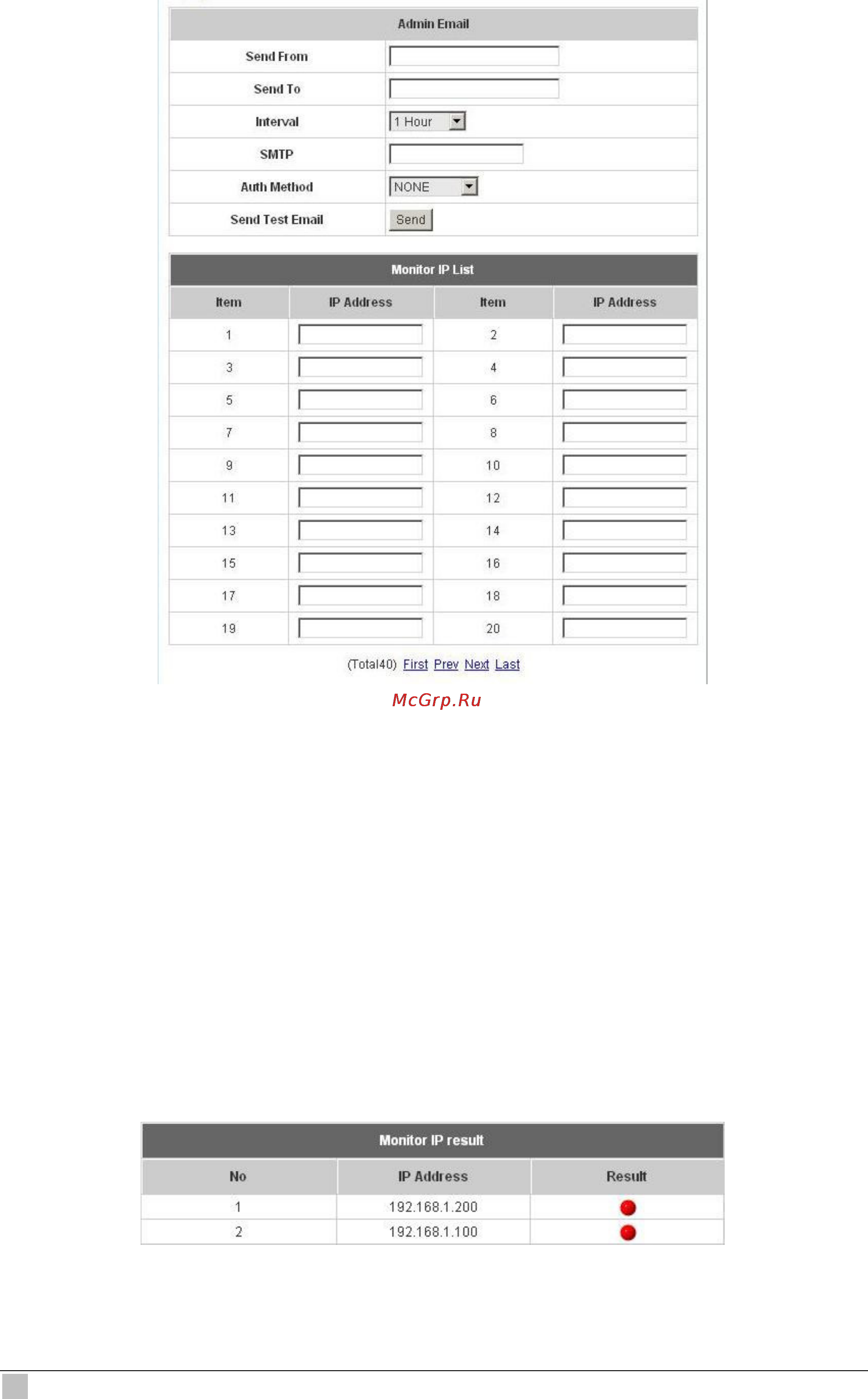

Send From: The e-mail address of the administrator in charge of the monitoring. This will show
up as the sender’s e-mail.
Send To: The e-mail address of the person whom the monitoring result is for. This will be the
receiver’s e-mail.
Interval: The time interval to send the e-mail report.
SMTP Server: The IP address of the SMTP server.
Auth Method: The system provides four authentication methods, Plain, Login, CRAM-MD5
and NTLMv1, or “None” to use none of the above. Depending on which authentication method
selected, enter the Account Name, Password and Domain.
Send Test Email: To test the settings correct or not.
Monitor IP Address: The IP addresses under monitoring.
