Wireless Subscriber Gateway
121
Send Test Email: To test the settings correct or not.
Syslog Server: It specifies the IP and Port of the Syslog server.
3.6 Help

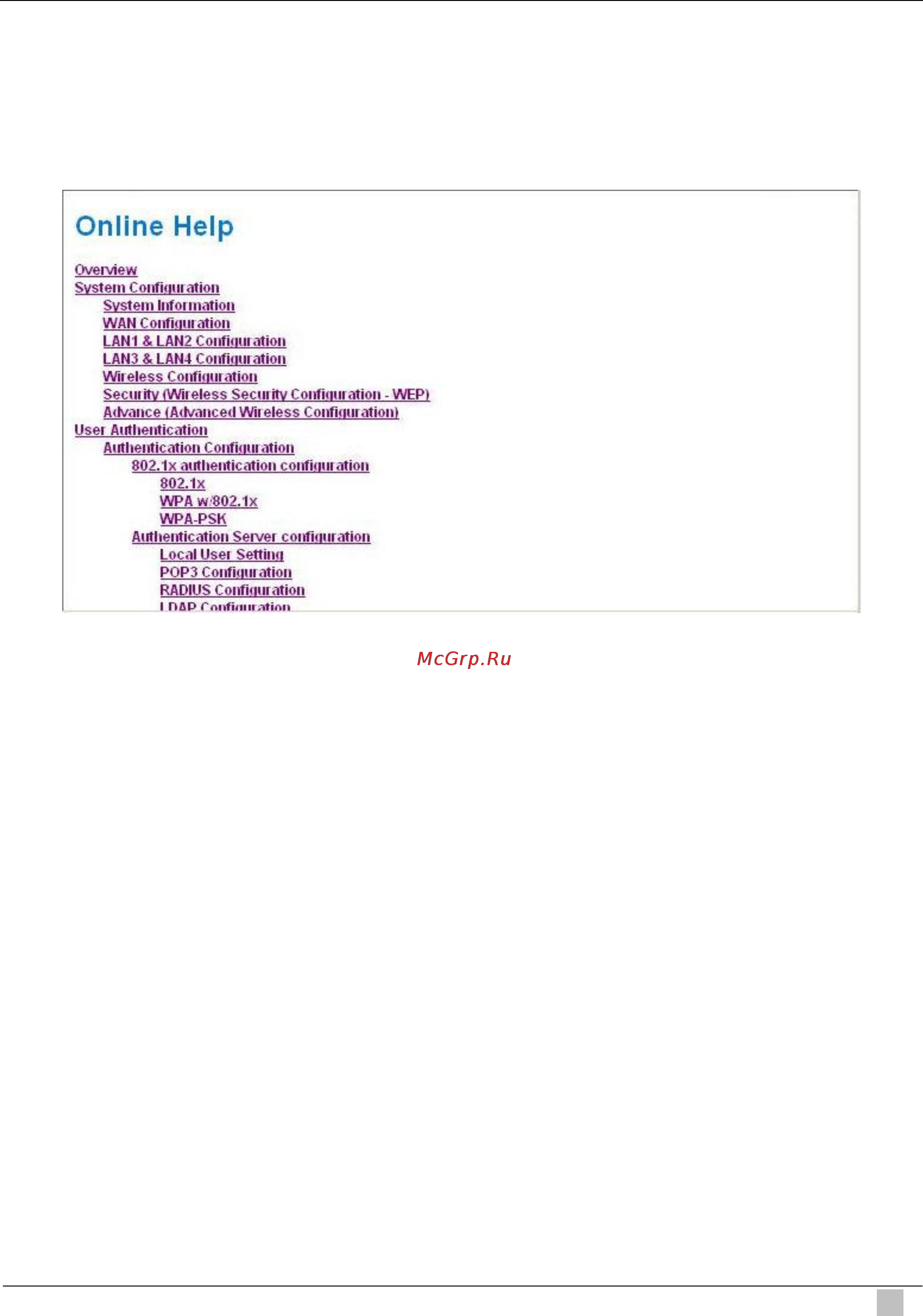

On the screen, the Help button is on the upper right corner.
Click Help to the Online Help window and then click the hyperlink of the items to get the
information.
