Wireless Subscriber Gateway
131

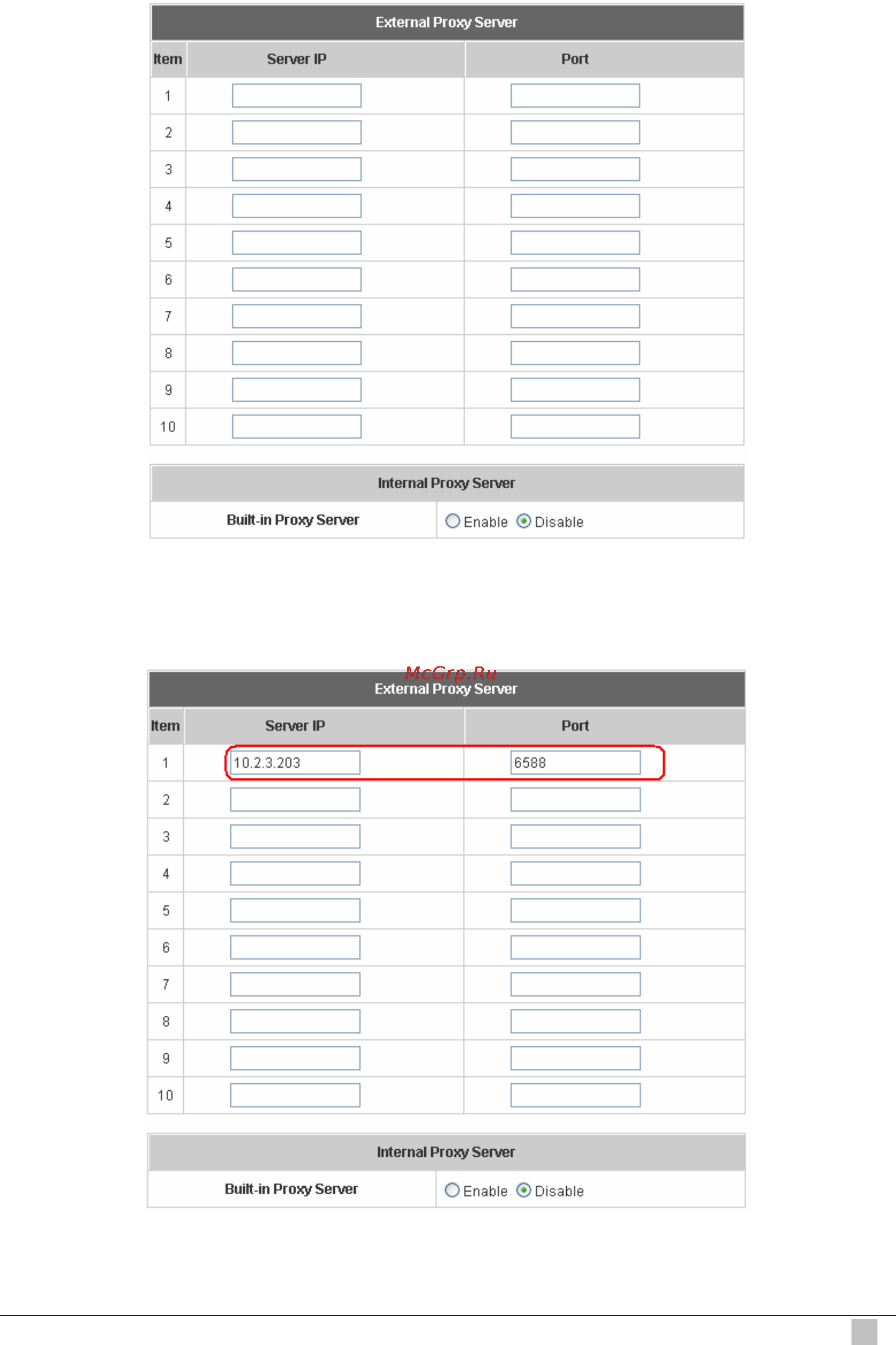

3. Click the Proxy Server Properties from left menu and the homepage of the Proxy Server
Properties will appear.
4. Add the ISP’s proxy Server IP and Port into External Proxy Server Setting.
