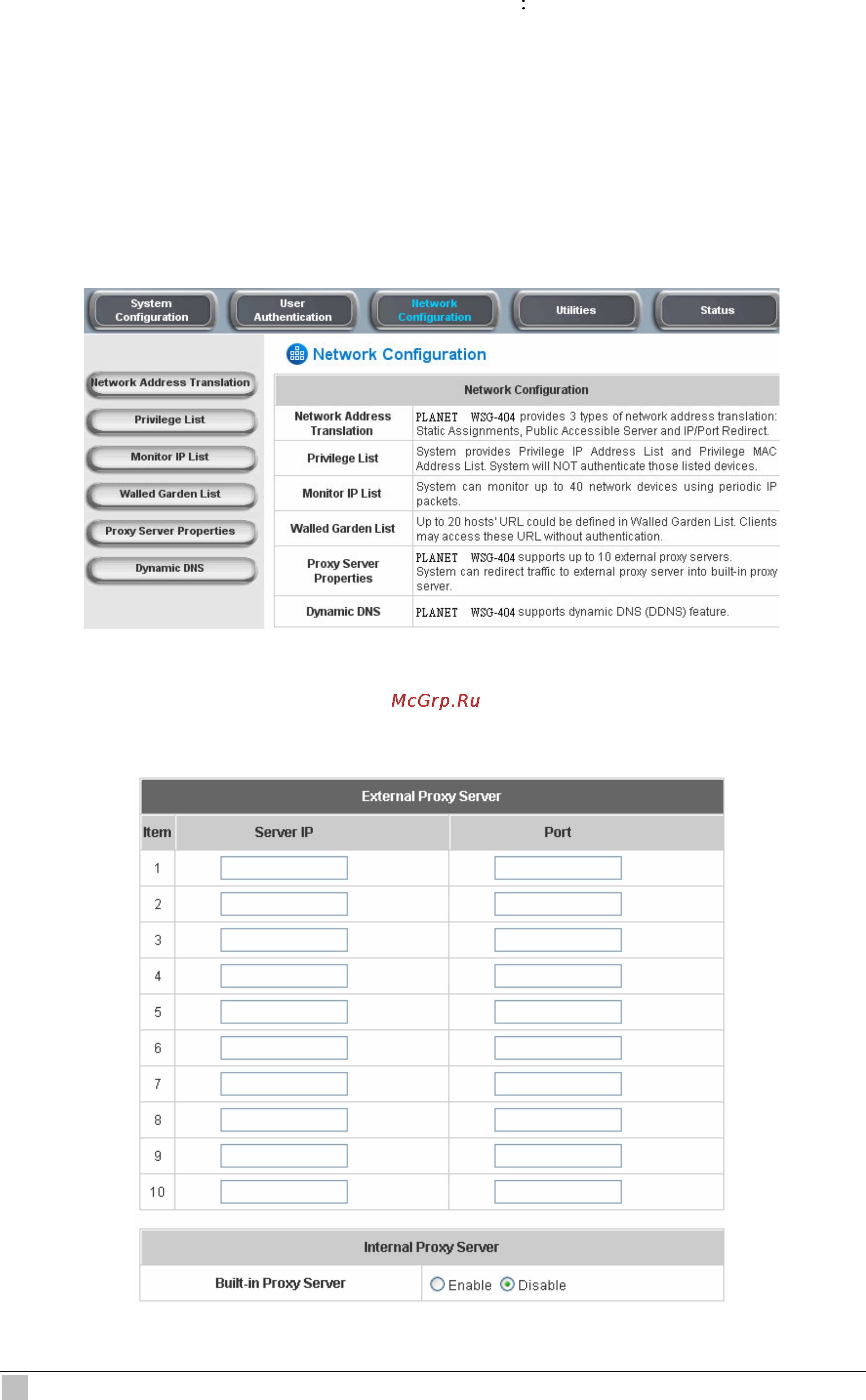

WSG-404 User Guide
134
Please follow the steps to complete the proxy configuration
Gateway setting
1. Login Gateway by using “admin”.
2. Click the Network Configuration from top menu and the homepage of the Network
Configuration will appear.
3. Click the Proxy Server Properties from left menu and the homepage of the Proxy Server
Properties will appear.
