WSG-404 User Guide
136
6. Click Apply to save the settings.
Note:
If your proxy server is disabled, it will make the user authentication operation abnormal. When
users open the browser, the login page won’t appear because the proxy server is down. Please
make sure your proxy server is always available.
Client setting
It is necessary for clients to add default gateway IP address into proxy exception information so
the user login successful page can show up normally.

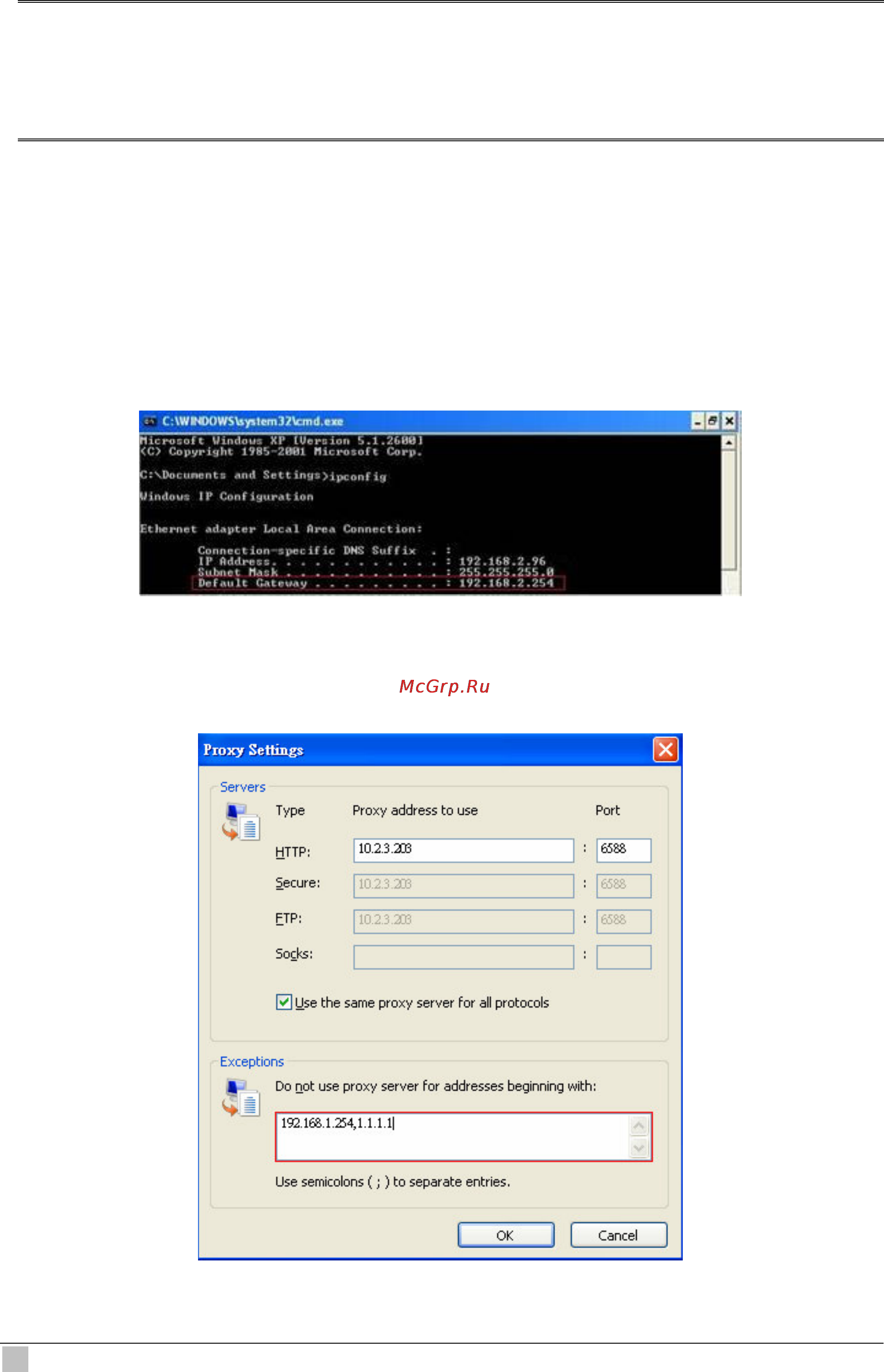

1. Use command “ipconfig” to get Default Gateway IP Address.
2. Open browser to add default gateway IP address (e.g. 192.168.1.254) and logout page IP
address “1.1.1.1” into proxy exception information.
For I.E
