Wireless Subscriber Gateway
17

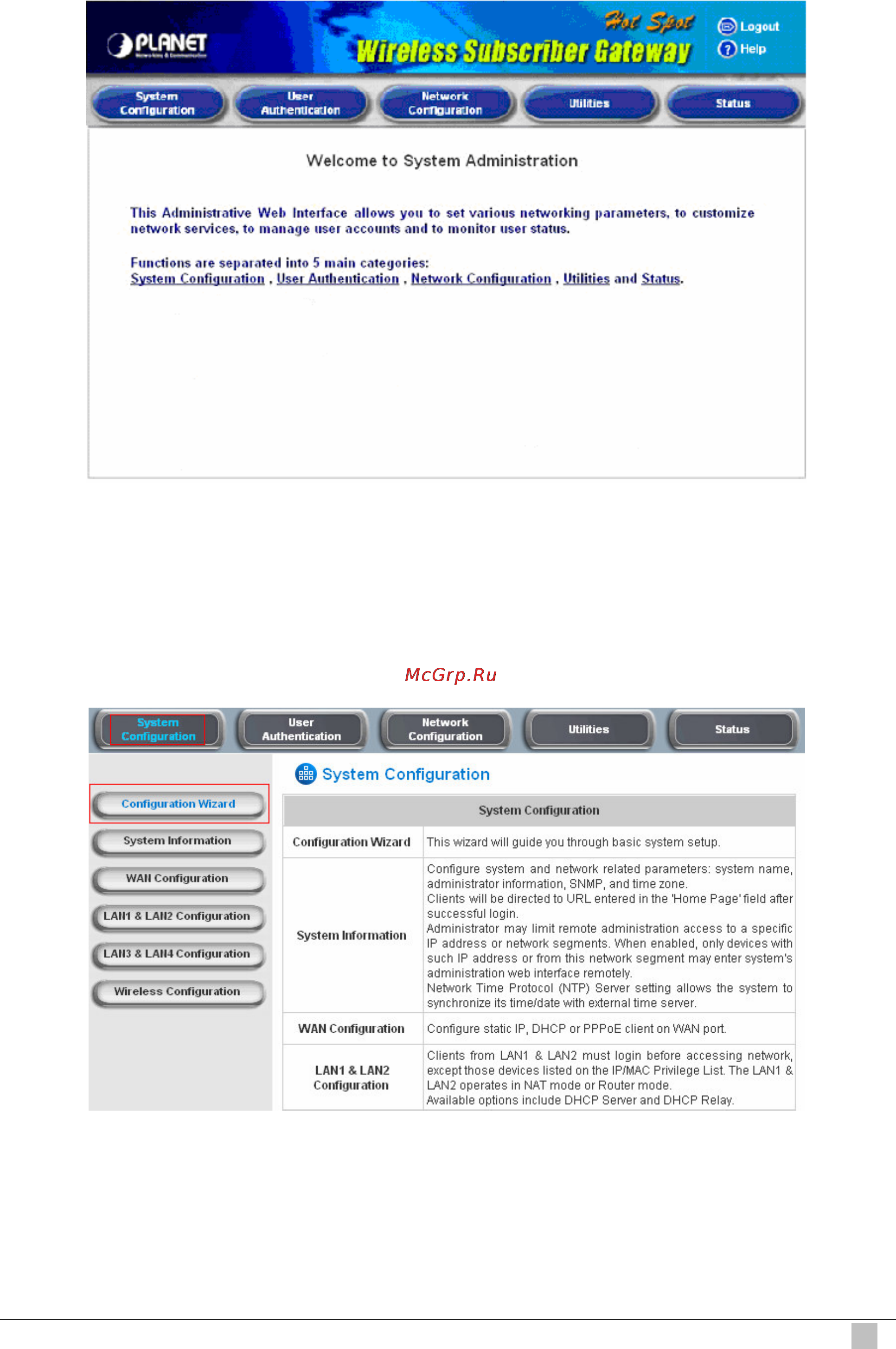

After successfully logging into WSG-404, a web management interface with a welcome message
will appear.
Click System Configuration to the System Configuration screen and run the Configuration
Wizard to help you complete the configuration.
