Wireless Subscriber Gateway
25

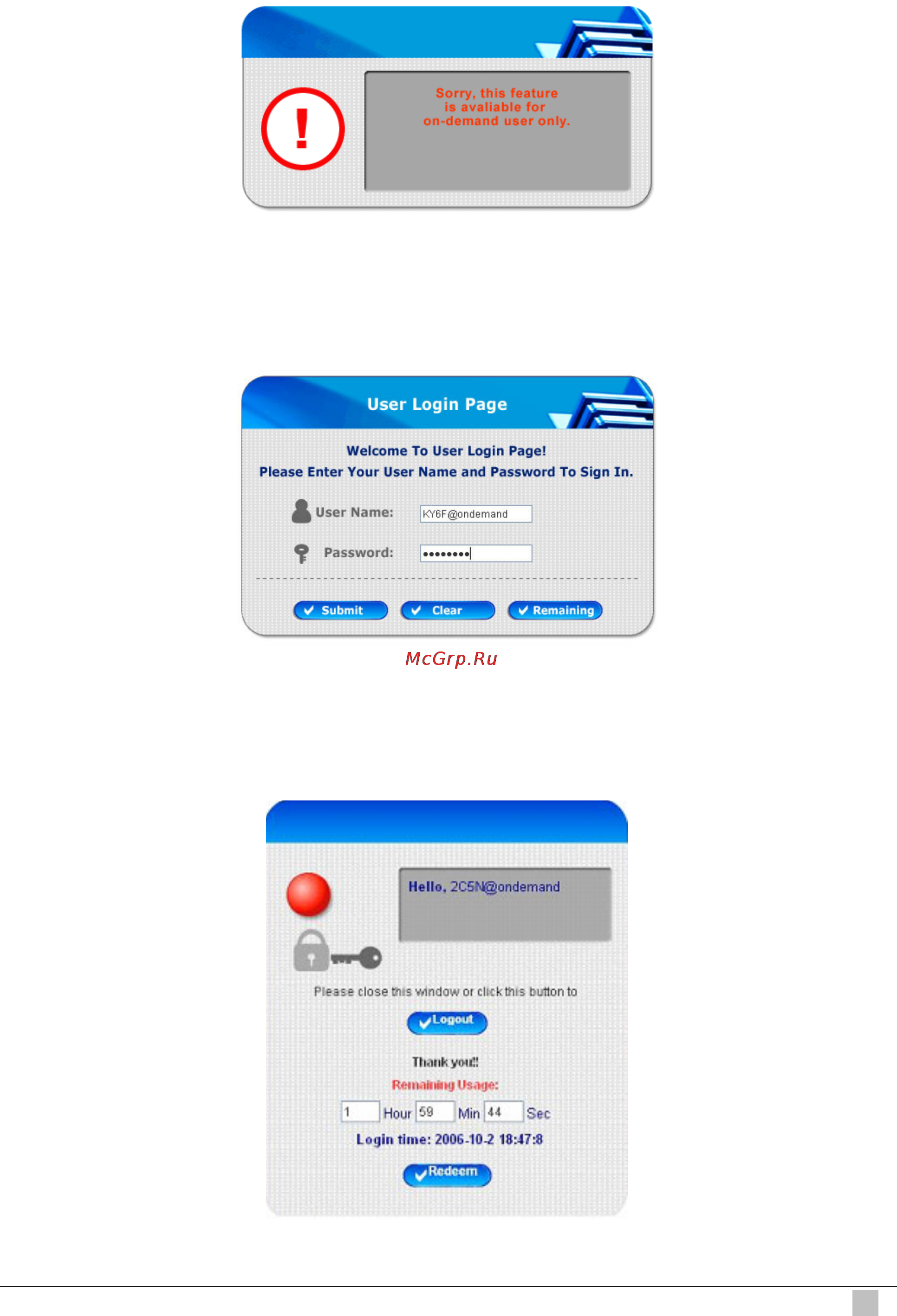

3. If the screen shows “Sorry, this feature is available for on-demand user only”, the
“Remaining” button has been clicked. This button is only for on-demand users. For users other
than on-demand users, please click the Submit button.
4. An on-demand user can enter the username and password in the “User Login Page” and
click the Remaining button to view the remaining time the account.
5. When an on-demand user logs in successfully, the following Login Successfully screen will
appear. There is an extra line showing “Remaining usage” and a “Redeem” button.
