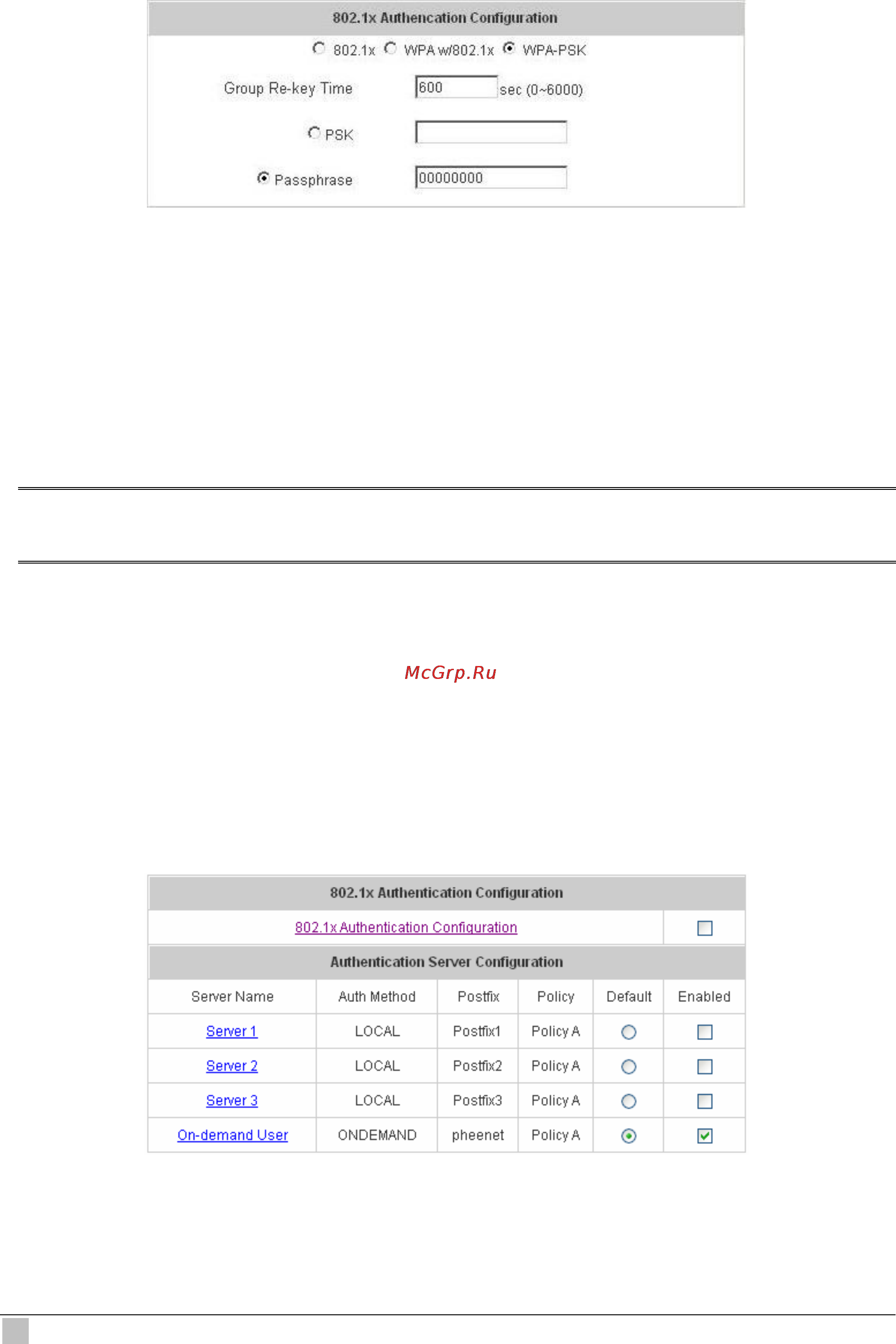

WSG-404 User Guide
48
3. WPA-PSK: Wireless Protection Access-PreShared Key, a kind of encryption mechanism
supporting WPA-SOHO. When using WPA-PSK, there is no user authentication required.
Group Re-key Time: Time interval for re-keying broadcast/multicast keys in seconds. The
maximum is 6000 sec.
PSK: The Pre-Shared Key uses 64 hexadecimal.
Passphrase: A kind of password using 8 to 63 ASCII characters.
Note:
After clicking Apply, there will be a restart message. You must click Restart to apply the settings.
Authentication Server Configuration
The system provides 3 servers and one on-demand server that the administrator can apply with
different policy. Click on the server name to set the related configurations for that particular
server. After completing and clicking Apply to save the settings, go back to the previous page to
choose a server to be the default server and enable or disable any server on the list. Users can
log into the default server without the postfix to allow faster login process.
