Wireless Subscriber Gateway
53

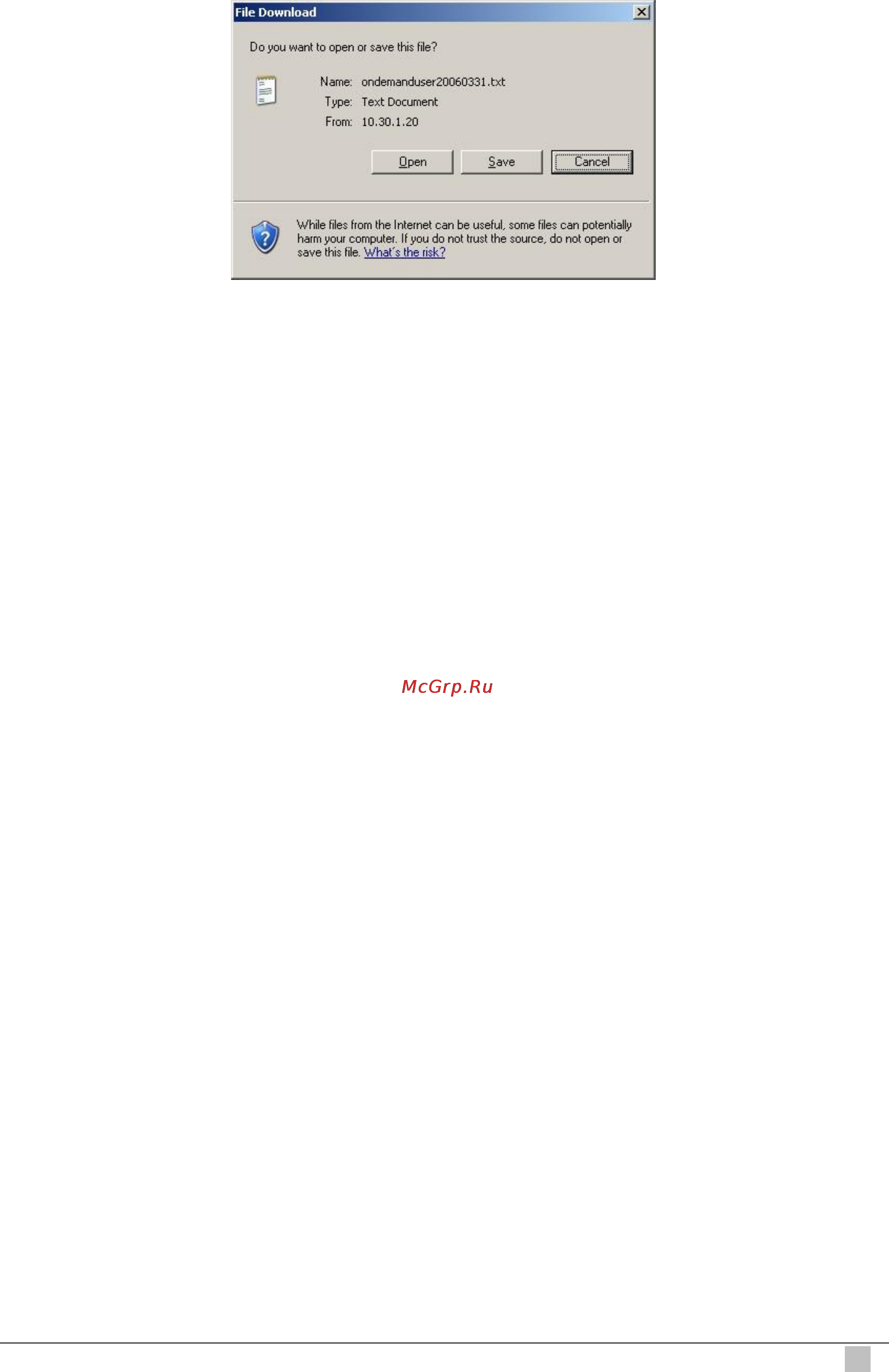

Download User: Click this to create a .txt file and then save it on disk.
Search: Enter a keyword of a username that needs to be searched in the text field and
click this button to perform the search. All usernames matching the keyword will be
listed.
Username: The login name of the on-demand user.
Password: The login password of the on-demand user.
Remaining Time/Volume: The total time/Volume that the user can use currently.
Status: The status of the account. Normal indicates that the account is not in-use and
not overdue. Online indicates that the account is in-use and not overdue. Expire
indicates that the account is overdue and cannot be used.
Expiration Time: The expiration time of the account.
Del All: This will delete all the users at once.
Delete: This will delete the users individually.
