Wireless Subscriber Gateway
59

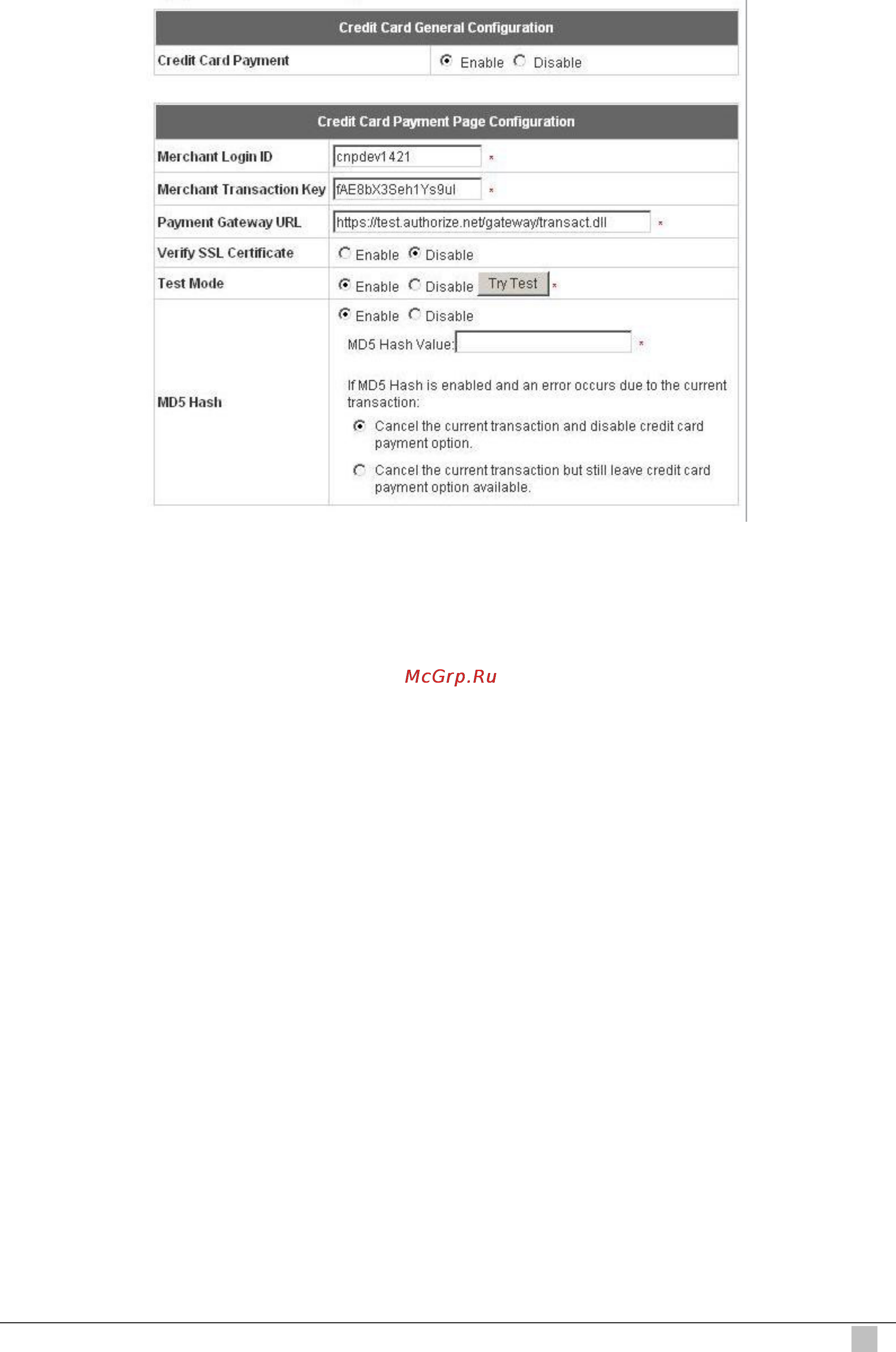

After getting an Authorize.Net account, set the following configuration in Credit Card
Configuration of PLANET WSG-404.
Credit Card General Configuration
Credit Card Payment: Click Enable to turn on this function or click Disable to turn off
this function.
Credit Card Payment Page Configuration
Merchant ID: The merchant ID is similar to a username and is used by the Payment
Gateway to authenticate transactions.
Merchant Transaction Key: The merchant transaction key is similar to a password and
is used by the Payment Gateway to authenticate transactions.
Payment Gateway URL: The Payment Gateway verifies the URL specified in the post
string against the URLs in this field.
Verify SSL Certificate: Secure Sockets Layer, a protocol developed by Netscape for
transmitting private documents via the Internet. SSL uses a cryptographic system that
uses two keys to encrypt data − a public key known to everyone and a private or secret
key known only to the recipient of the message. Both Netscape Navigator and Internet
Explorer support SSL, and many Web sites use the protocol to obtain confidential user
information, such as credit card numbers. By convention, URLs that require an SSL
connection start with https: instead of http:.
Test Mode: It is possible to submit a test transaction to the payment gateway.
Transactions that are submitted while Test Mode is enabled are NOT actually
processed. The example as follows:
