WSG-404 User Guide
70

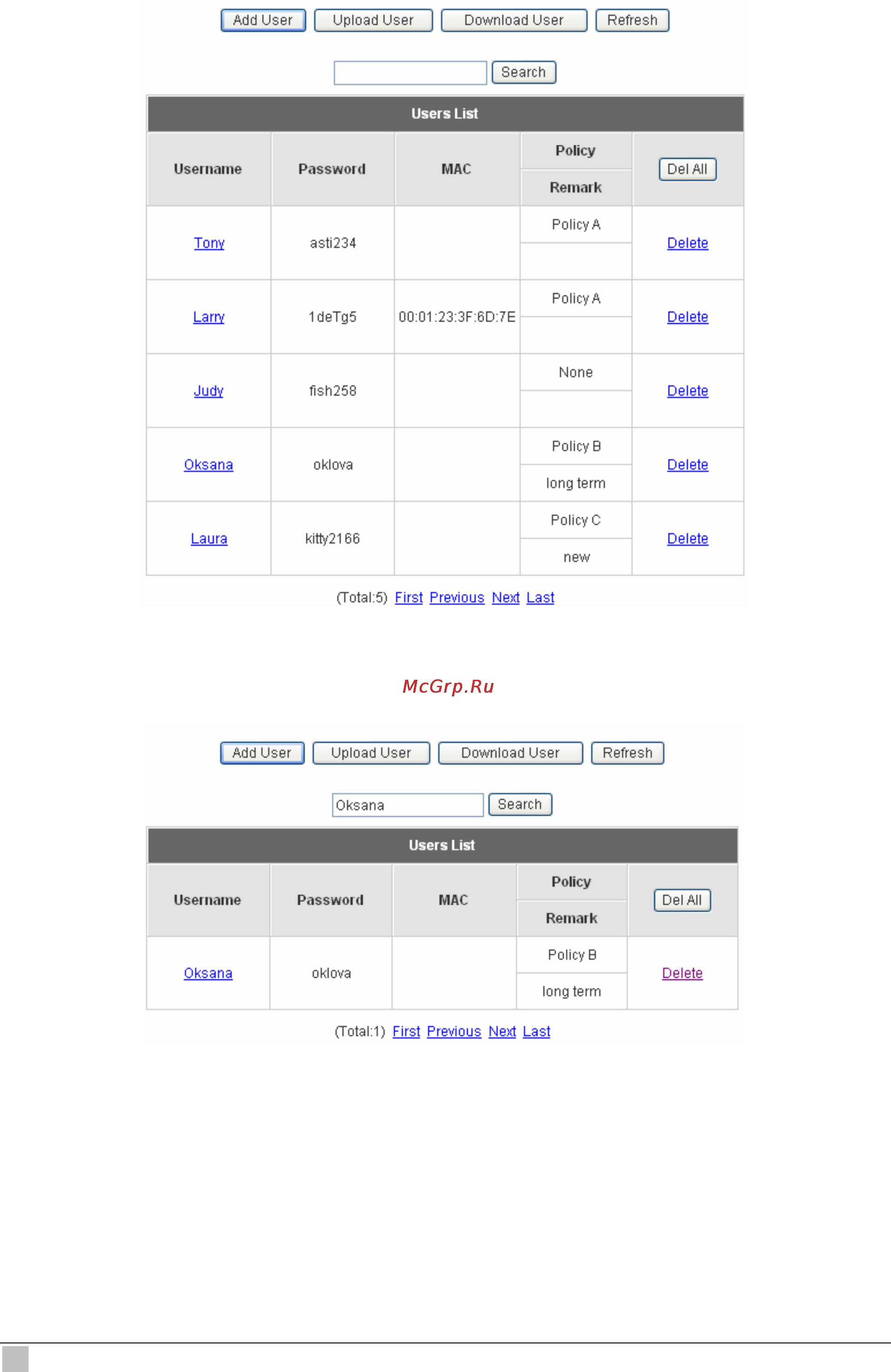

Refresh: Click this to renew the user list.
Search: Enter a keyword of a username to be searched in the text field and click this button to
perform the search. All usernames matching the keyword will be listed.
Del All: This will delete all the users at once.
Delete: This will delete the users individually.
Edit User: If editing the content of individual user account is desired, click the username of the
desired user account to enter the Edit User Interface for that particular user, and then modify or
add any desired information such as “Username”, “Password”, “MAC” (optional) and
“Remark” (optional). Then, click Apply to complete the modification.
