Wireless Subscriber Gateway
77

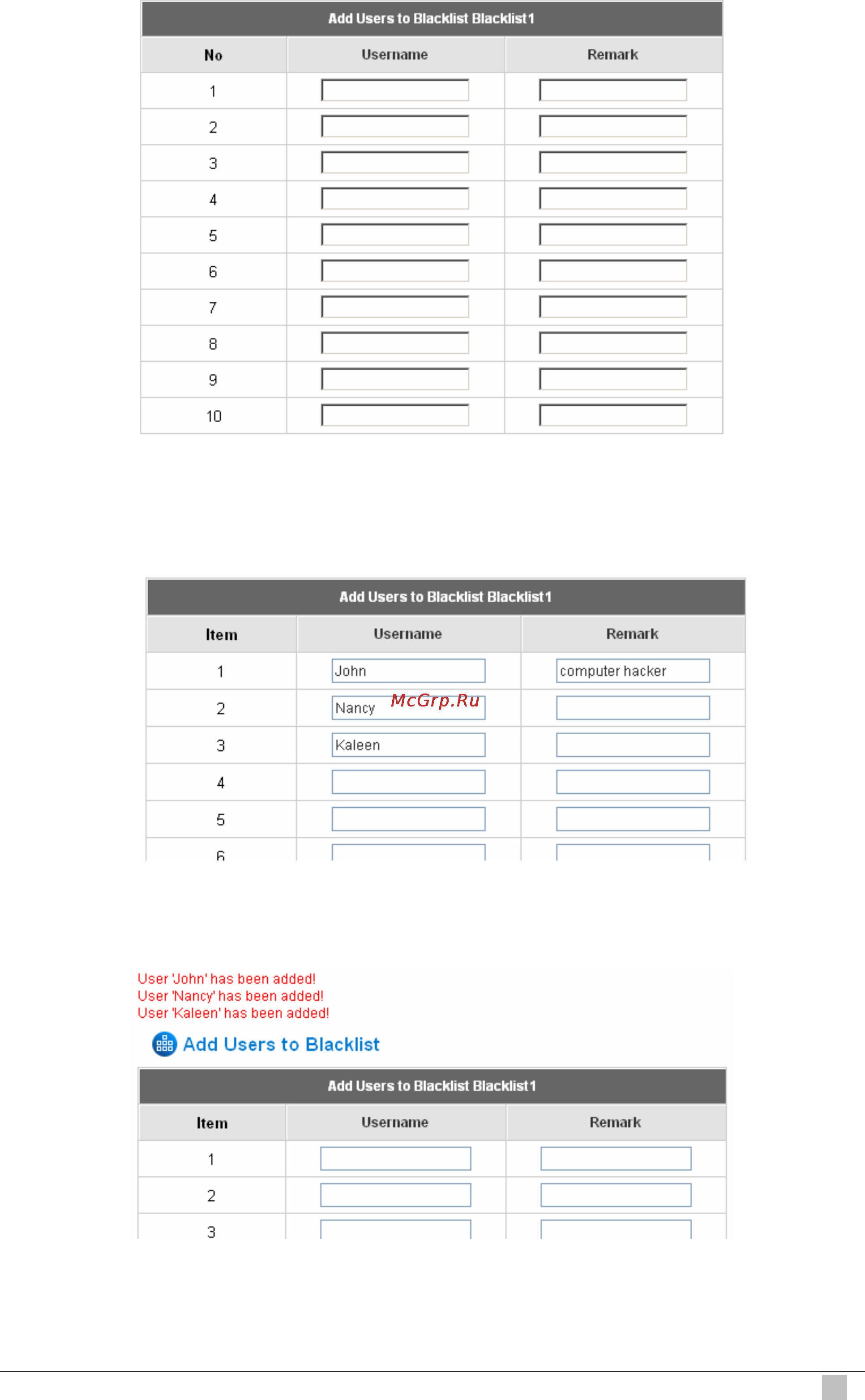

After entering the usernames in the “Username” blanks and the related information in the
“Remark” blank (not required).
Click Apply to add the users.
