Wireless Subscriber Gateway
87

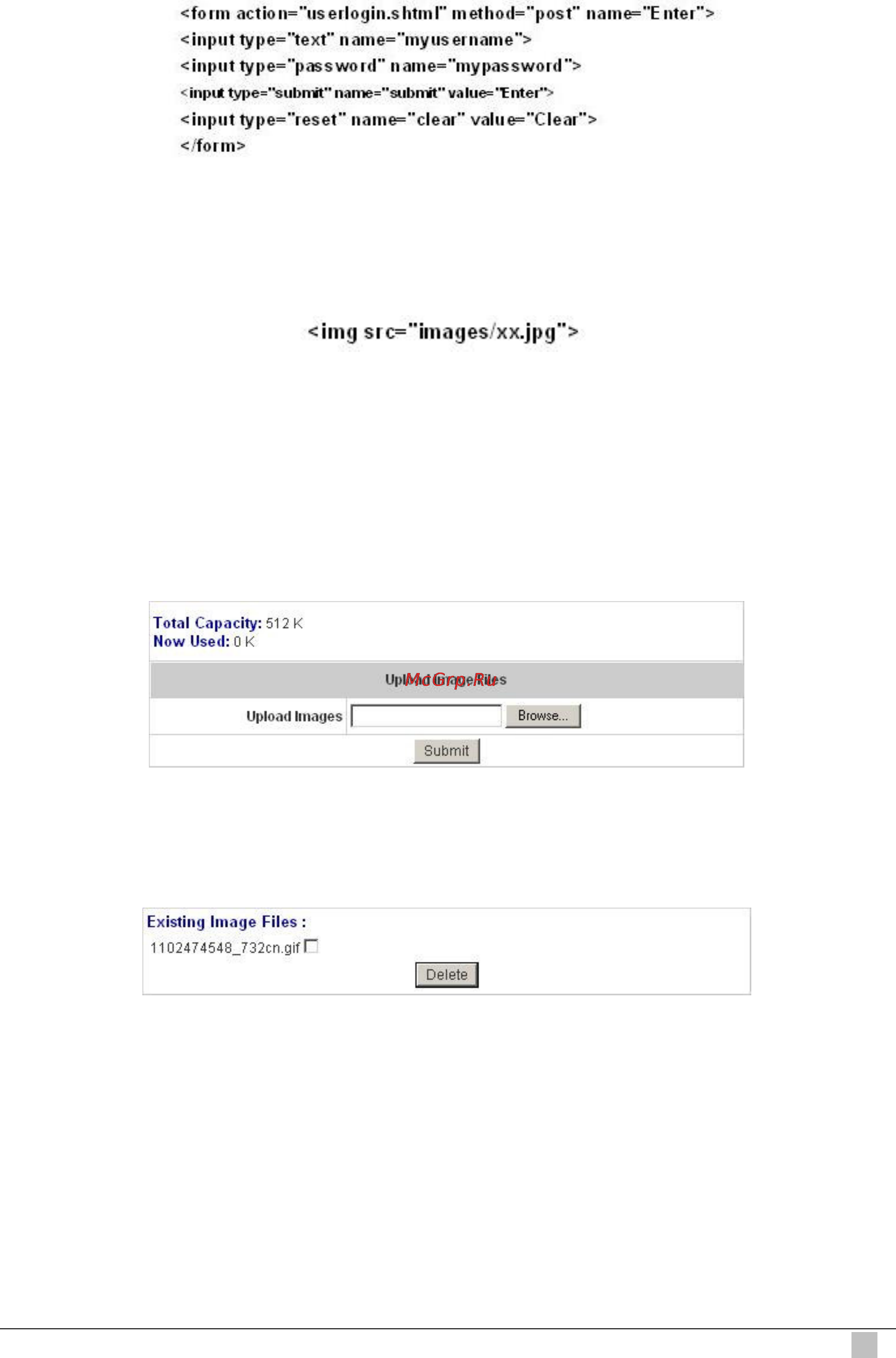

The user-defined login page must include the following HTML codes to provide the
necessary fields for username and password.
If the user-defined login page includes an image file, the image file path in the HTML code
must be the image file to be uploaded.
Then, enter or browse the filename of the images to upload in the Upload Images field on
the Upload Images Files page and then click Submit. The system will show the used
space and the maximum size of the image file of 512K. If the administrator wishes to
restore the factory default of the login page, click the Use Default Page button to restore
it to default.
After the image file is uploaded, the file name will show on the “Existing Image Files”
field. Check the file and click Delete to delete the file.
