WSG-404 User Guide
90

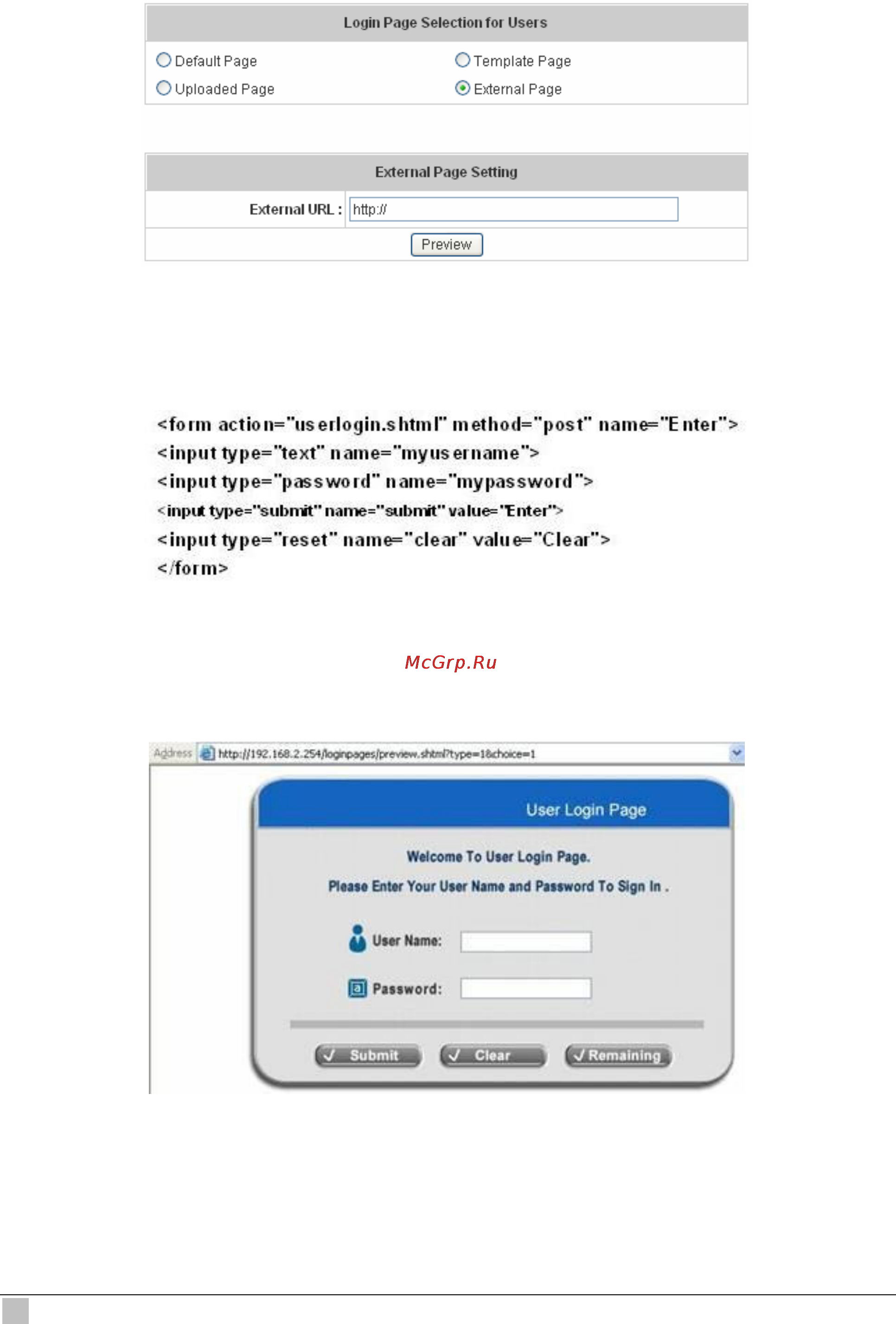

d. Choose the External Page selection and get the login page from the specific
website. Enter the website address in the “External Page Setting” field and then click
Apply.
The External Page prepared to be loaded here needs to have the following code as well
to let the system work properly
After applying the setting, the new login page can be previewed by clicking Preview
button at the bottom of this page.
