Wireless Subscriber Gateway
99

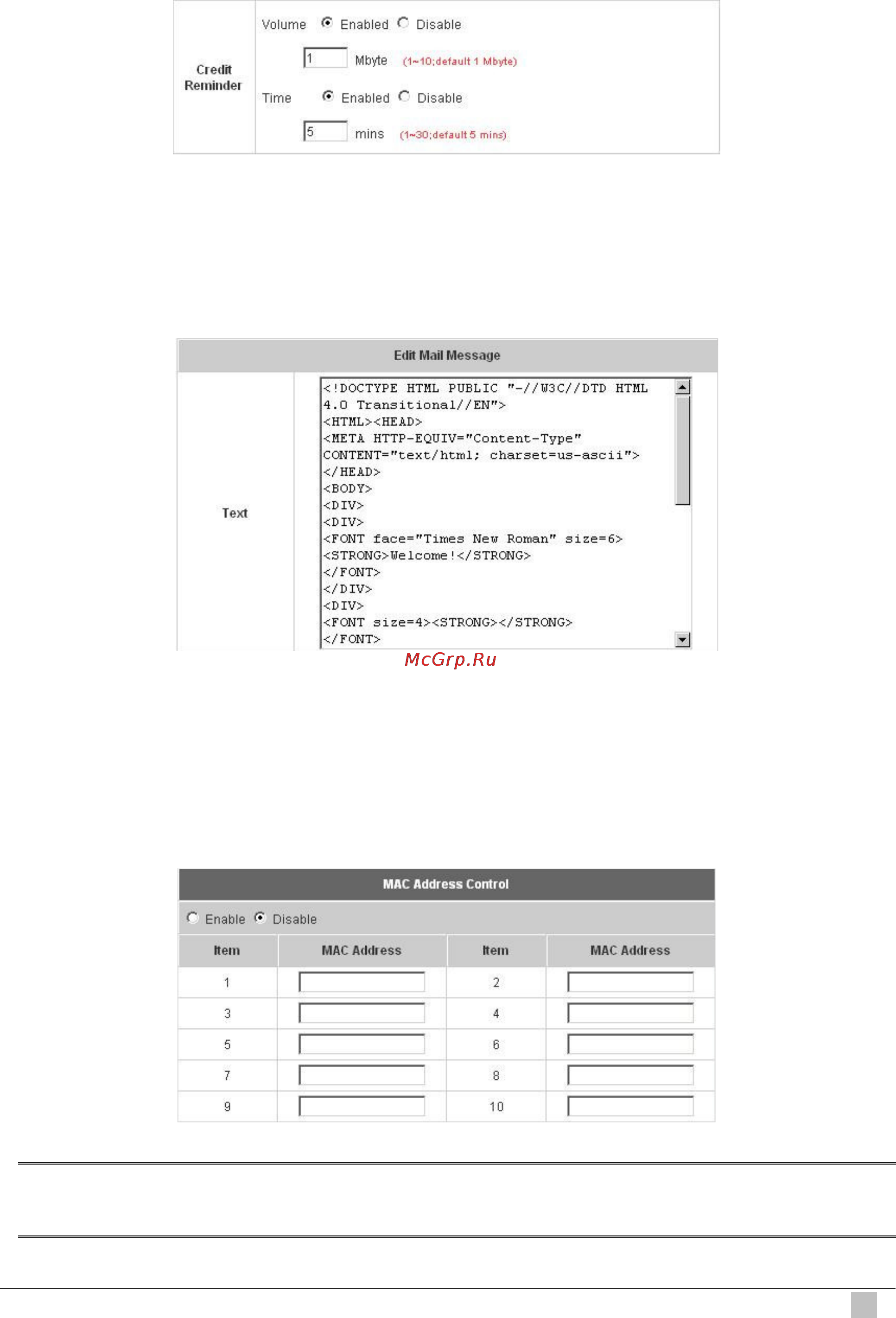

Credit Reminder: The administrator can enable this function to remind the on-demand users
before their credit run out. There are two kinds of reminder, Volume and Time. The default
reminding trigger level for Volume is 1Mbyte and the level for Time is 5 minutes.
POP3 Message: Before the users log into the network with their usernames and passwords, the
users will receive a welcome mail from PLANET WSG-404. The administrator can edit the
contents.
Enhance User Authentication: With this function, only the users with their MAC addresses in
this list can log into PLANET WSG-404. However, user authentication is still required for these
users. Please enter the MAC Address to fill in these MAC addresses, select Enable, and then
click Apply.
Note:
The format of the MAC address is: xx:xx:xx:xx:xx:xx or xx-xx-xx-xx-xx-xx.
