User’s Manual of IGS-801M

4.4.1 Port Trunk

This function provides to cascade two Switch devices with a double bandwidth.

 4 Trunk Group per system, up to 8 ports per Trunk Group.

The Port Trunking configuration screen in Figure 4-4-1 appears.

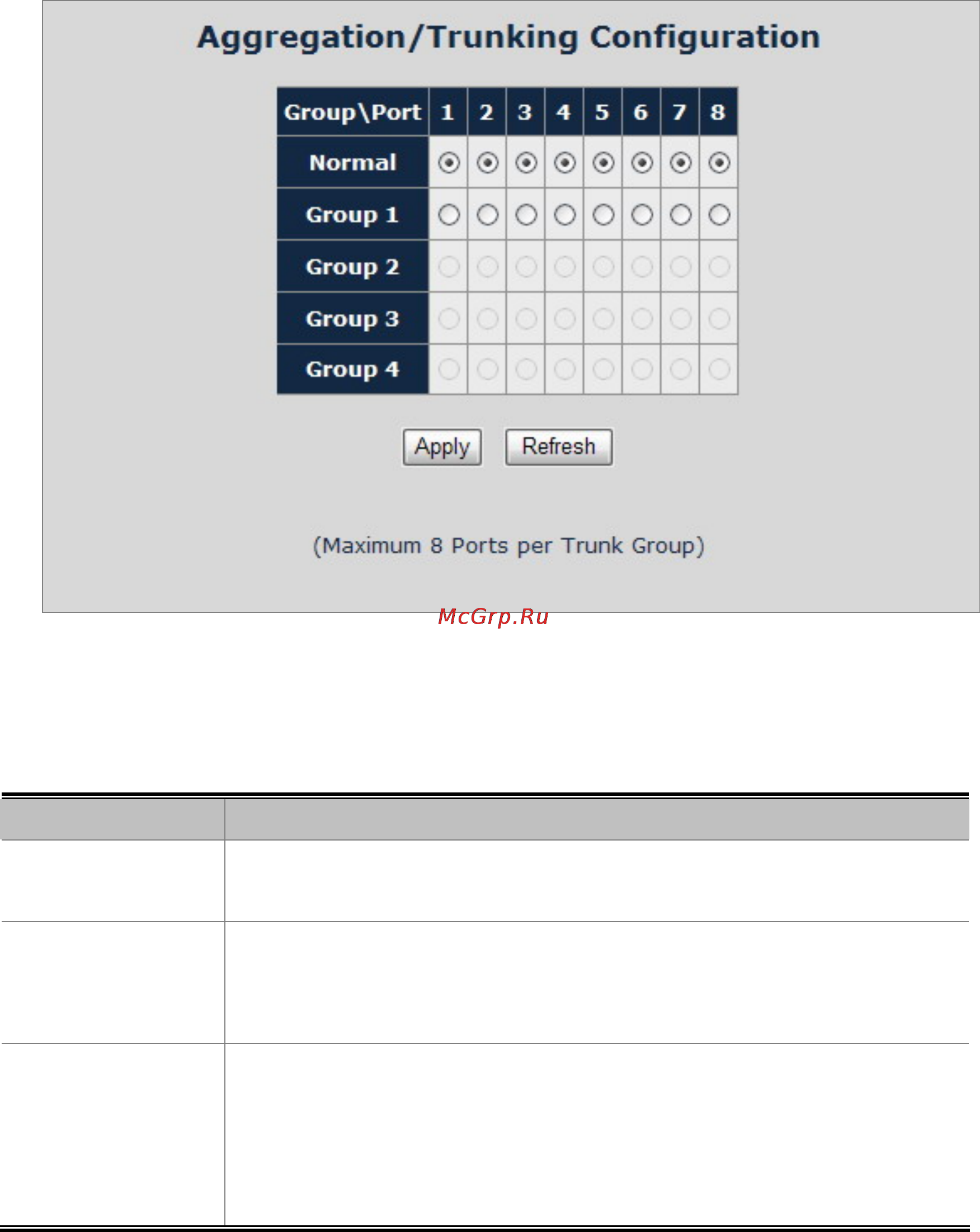

Figure 4-4-1 Aggregation/Trunking Configuration screen

The page includes the following fields:

Object Description

Port

Indicate port 1 to port 8.

Normal

While a port is checked as “Normal”, the port is not joining to any Static Trunk

Group.

Group

Specify the Joined Trunk Group. There’re maximum 4 trunk groups per system

and the maximum 8 ports in a trunk group:

Note. A port can be assigned to only one Trunk Group.
