User’s Manual of IGS-801M

4.5.3 VLAN setting example:

4.5.3.1 Two separate 802.1Q

The diagram shows how the switch handl roup 2 and VLAN

Group 3 are separated VLAN. Each VL the

same VLAN members. The screen in Fi ation of switch.

VLAN

e Tagged and Untagged traffic flow for two VLANs. VLAN G

AN isolate network traffic so only members of the VLAN receive traffic from

gure 4-5-6 appears and Table 4-1 describes the port configur

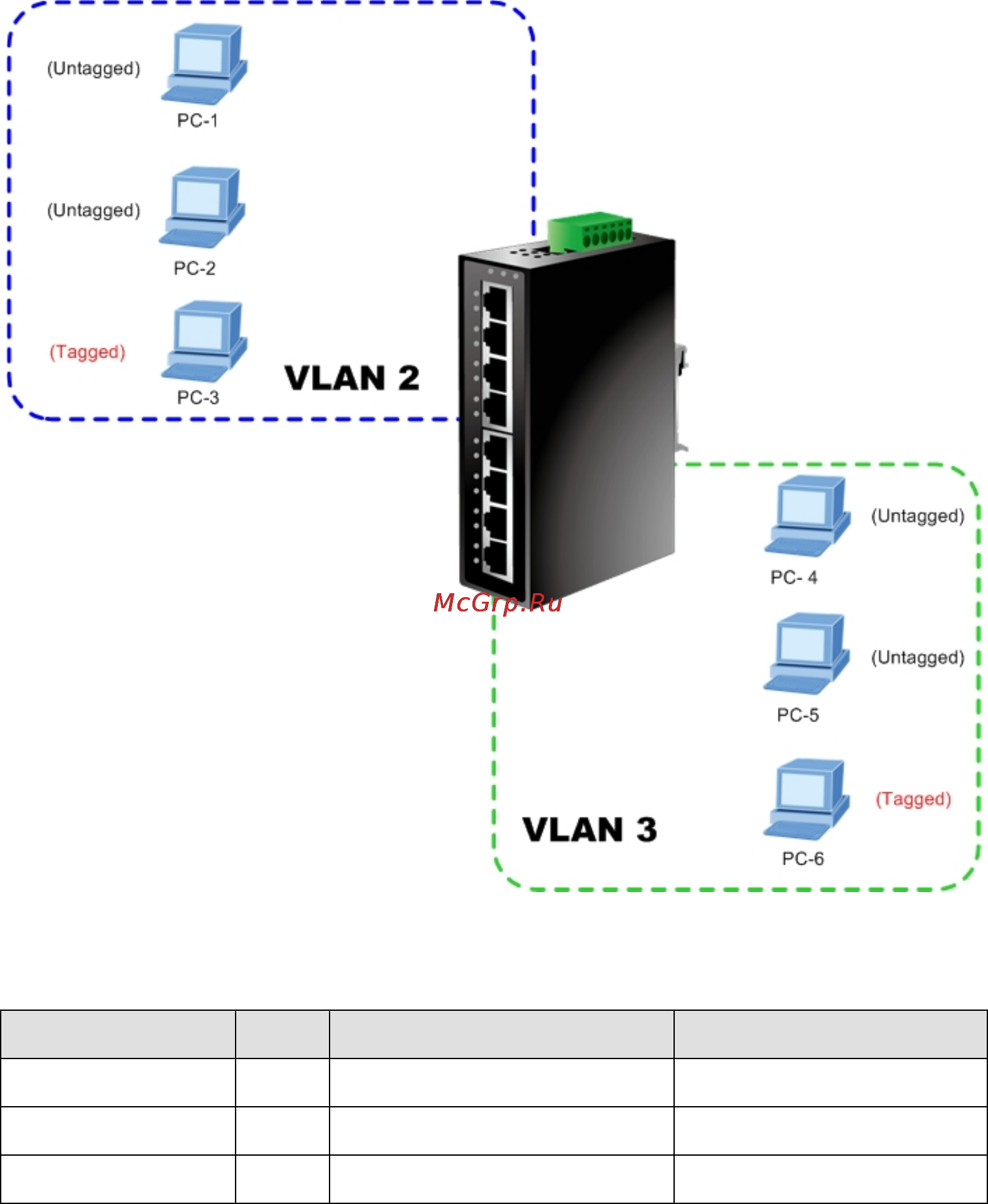

Figure 4-5-6 two separate VLAN diagram

VLAN Group VID Untagged Members Tagged Members

VLAN Group 1 1 Port-7~Port-8 N/A

VLAN Group 2 2 Port-1,Port-2 Port-3

VLAN Group 3 3 Port-4,Port-5 Port-6

Table 4-1 VLAN and Port Configuration

The scenario described as follow:



Untagged packet entering VALN 2

While [PC-1] transmit an untagged packet enters Port-1, the switch will tag it with a VLAN Tag=2. [PC-2] and

[PC-3] will received the packet through Port-2 and Port-3.

[PC-4],[PC-5] and [PC-6] received no packet.
