User’s Manual of IGS-801M

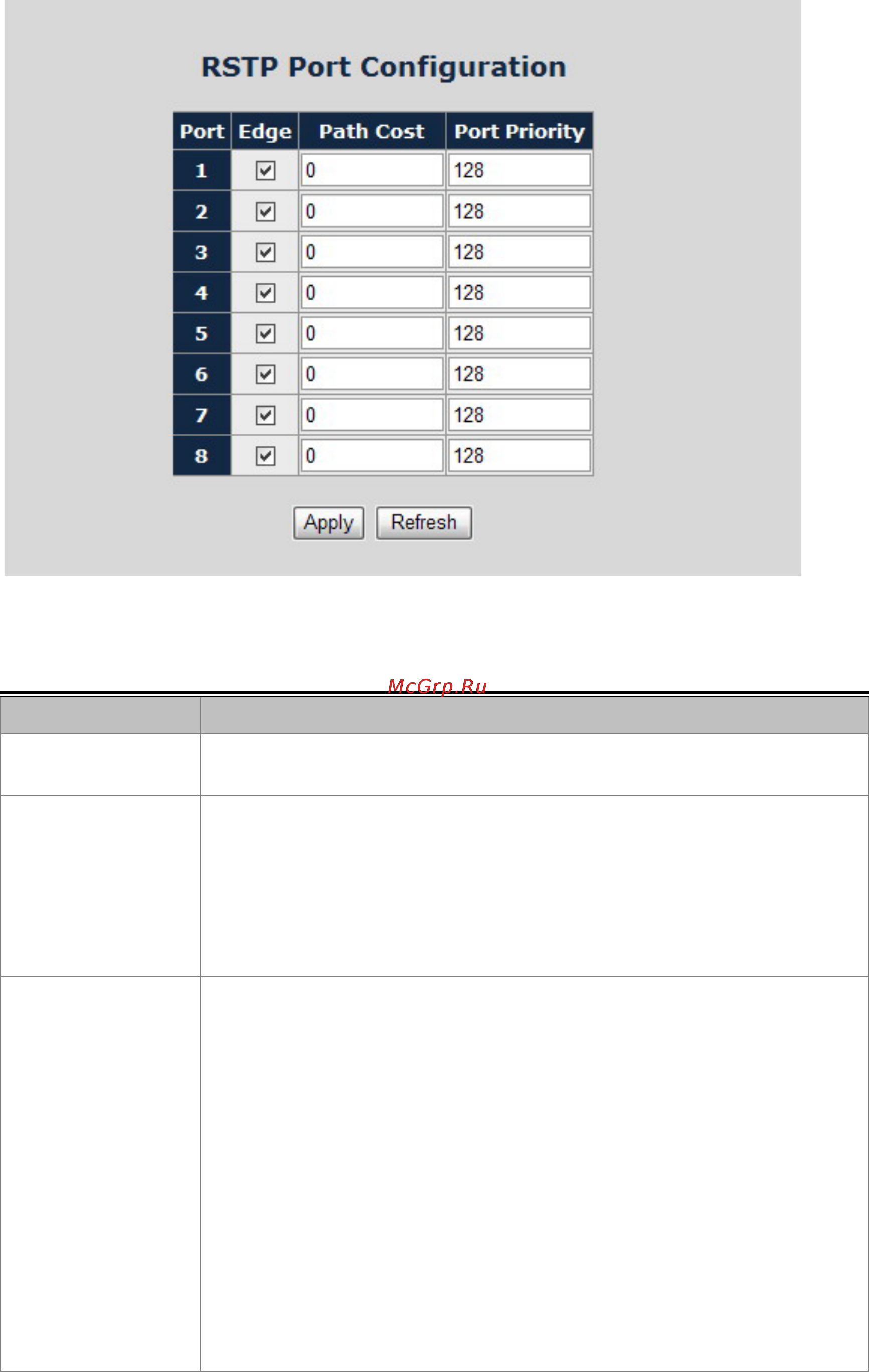

Figure 4-6-5 RSTP Port Configuration

The page includes the following fields:

Object Description

Port

Indicate port 1 to port 24.

Edge

Indicates whether the port is enabled as an edge port.

Edge port cannot create loops, but it loses edge port status if a topology change

creates a potential for a loop. An edge port normally should not receive BPDU

packets. If a BPDU packet is received it automatically loses edge port status.

Path Cost

The port contribution to the root path cost. The path cost is adjusted to a higher or

Value Rage : 1-20000000.

cally set by the

port speed and the default path cost method. The default values for path costs

are:

- Ethernet – 2000000.

- 200000.

lower value, and is used to forward traffic when a path being rerouted.

Default Path Cost -- The default path cost of the port is automati

- Fast Ethernet

- Gigabit Ethernet - 20000.
