Planet IGS-801 [55/120] Add a vlan group

User’s Manual of IGS-801M

4.5.1.1 Add a VLAN Group

o 64 active VLAN groups and the range for the VLAN ID is 1-4094.

094) and please press “Add” button, the new VLAN Setup

w in Figure 4-5-2 and Figure 4-5-3

The Gigabit Ethernet Switch supports up t

1. To add a VLAN group, filed in the VLAN ID (from 1-4

screen will pop out.

2. Checked the Member box to select the members for the VLAN group.

3. After setup completed, please press “Apply” to take affect.

As sho

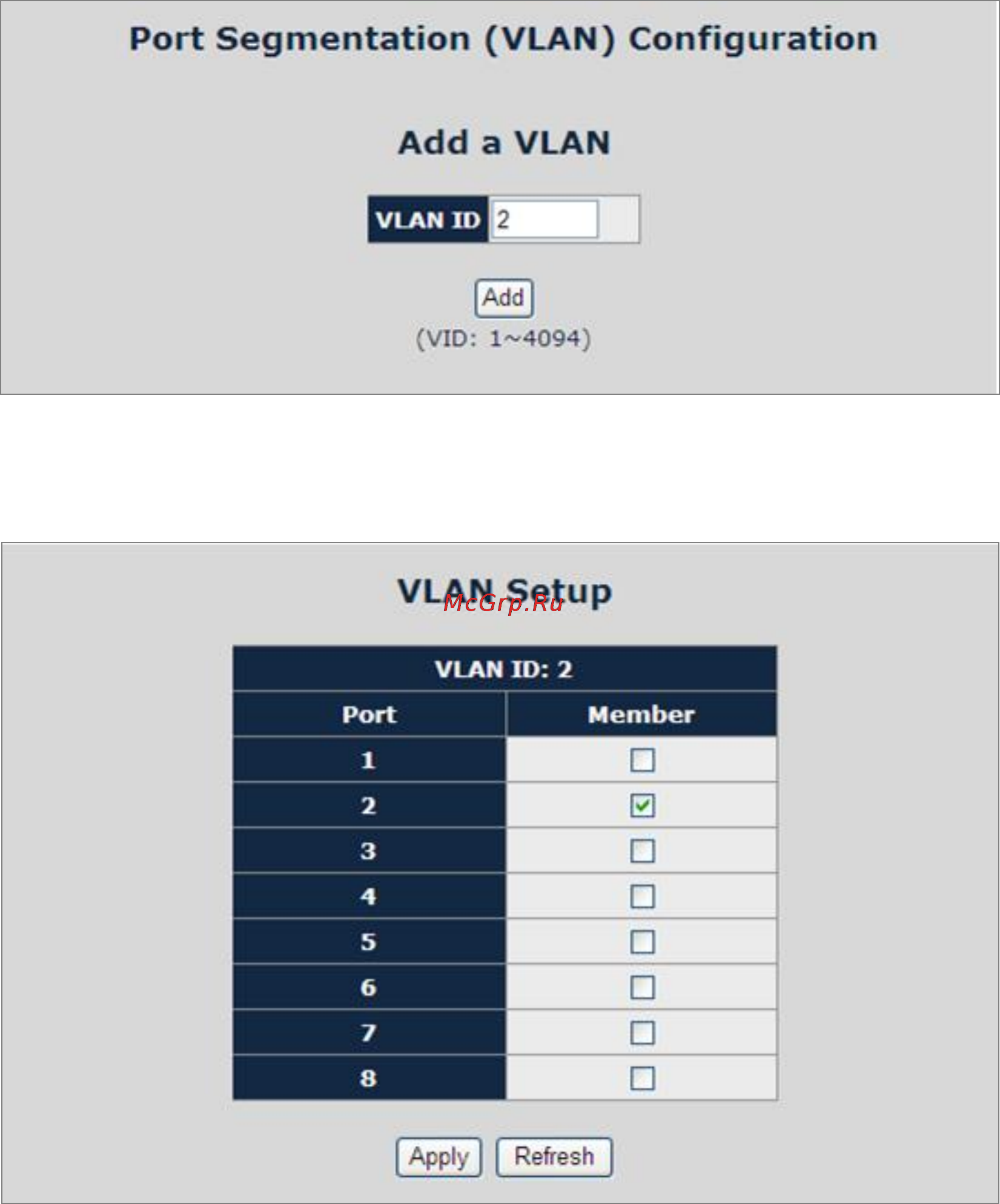

Figure 4-5-2 Add a VLAN screen

Figure 4-5-3 VLAN Member Setup screen
