User’s Manual of IGS-801M

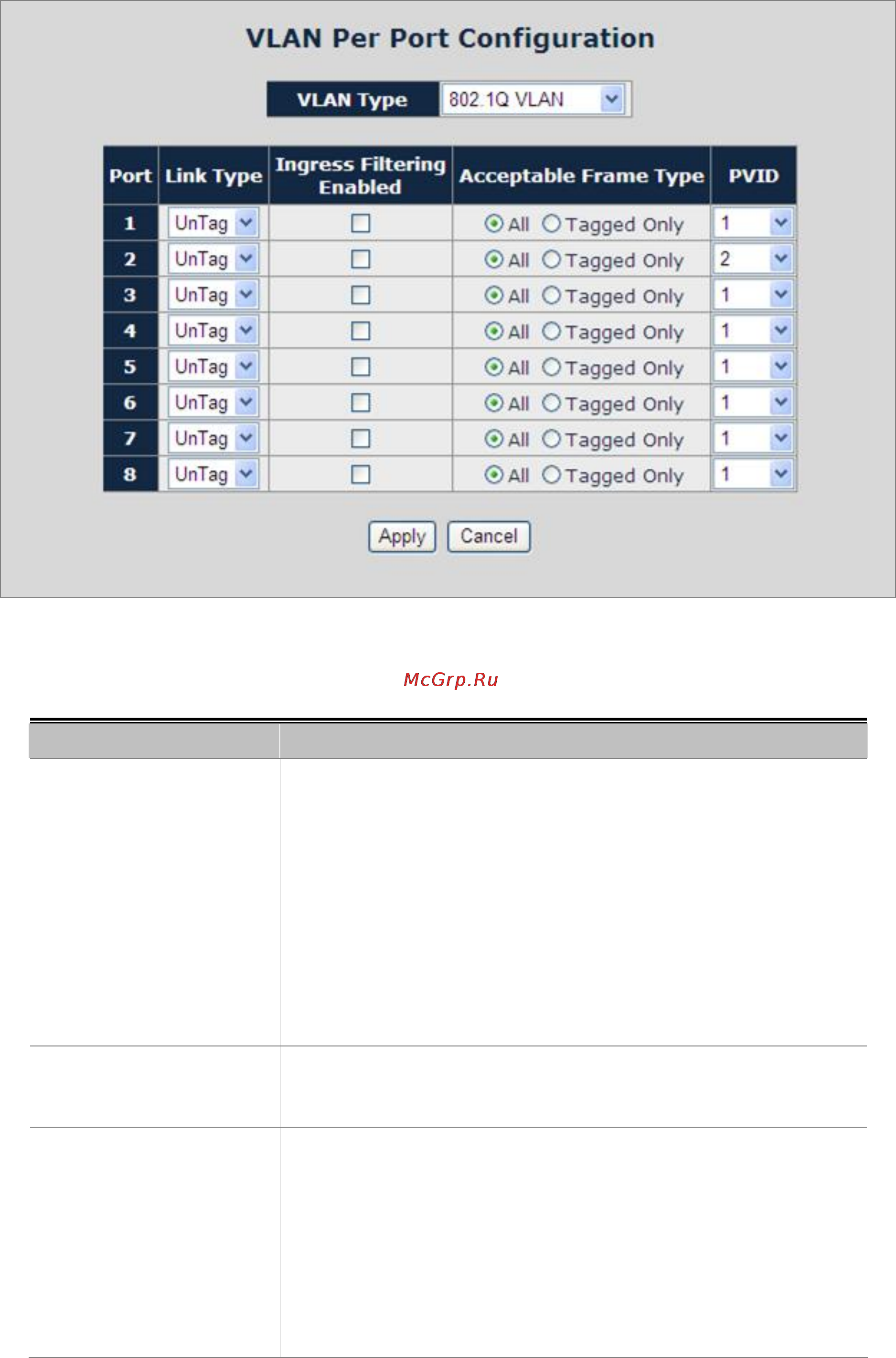

Figure 4-5-5 VLAN Port Configuration
The page includes the following fields:
Object Description
VLAN Type
There’re two VLAN mode support – 802.1Q VLAN and Port-Bas VLAN
• 802.1Q – Packets income will be tagged with VID as the PVID setting.
All ports on the switch belong to default VLAN (VID 1).
• Port-Base - Packets can only be broadcast among other members of
the same VLAN group. Note all unselected ports are treated as
belonging to the default system VLAN.
If port-based VLAN are enabled, then VLAN-tagging feature is ignored.
Port
Select the physical interface for which you want to display or configure
data.
Link Type
Allow 802.1Q Untagged or Tagged VLAN for selected port.
When adding a VLAN to selected port, it tells the switch whether to keep or
remove the tag from a frame on egress.
• Untag: outgoing frames without VLAN-Tagged.
• Tagged: outgoing frames with VLAN-Tagged.
58
