User’s Manual of IGS-801M
4.9.2 RADIUS Server Configuration
This page allows you to configure the IEEE 802.1X authentication system and port settings. The IEEE 802.1X standard
defines a port-based access control procedure that prevents unauthorized access to a network by requiring users to first
submit credentials for authentication. A central server, the RADIUS server, determines whether the user is allowed access
to the network.
This page is to configure the RADIUS server connection features. The screen in Figure 4-9-3 appears.

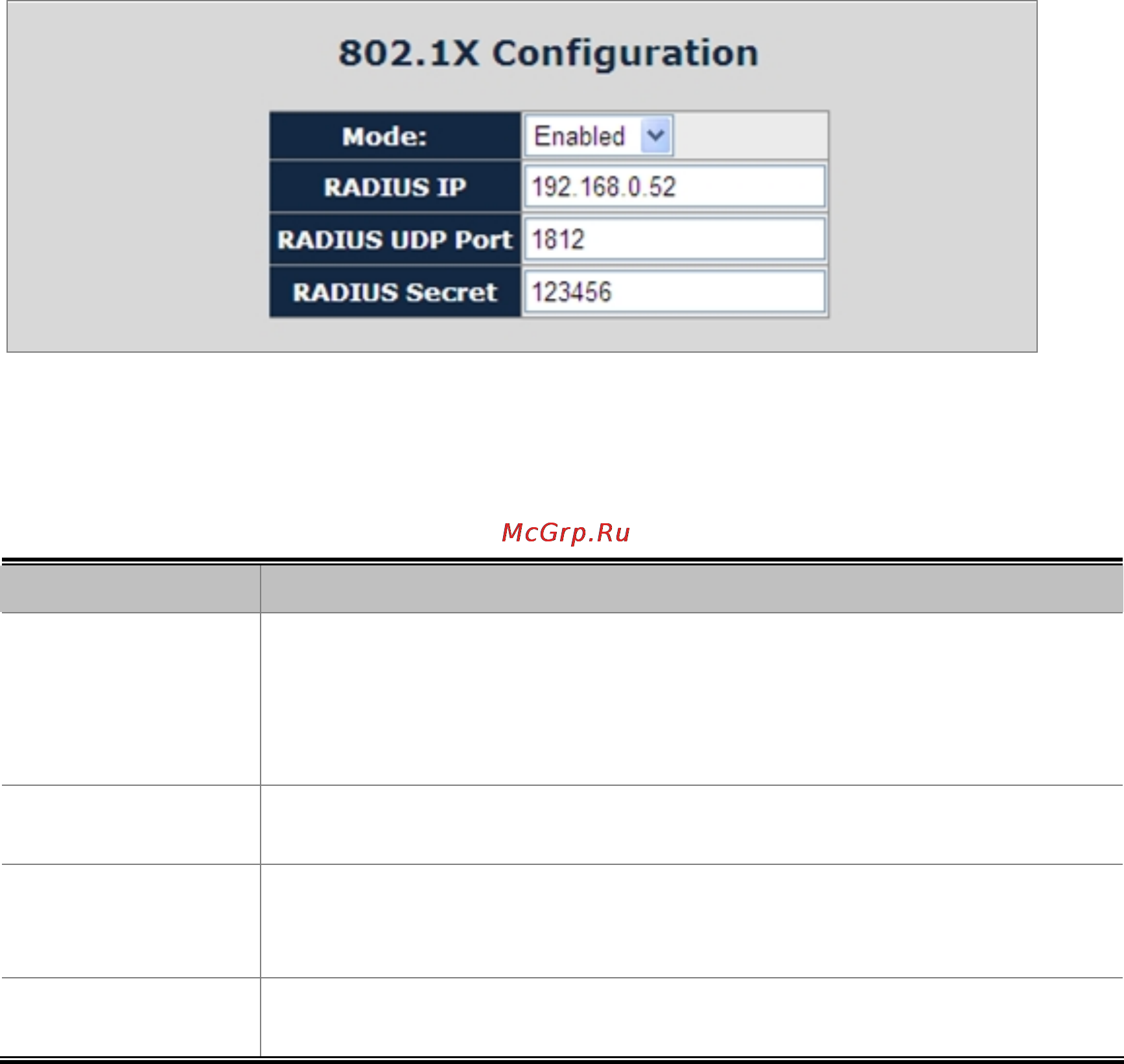

Figure 4 screen
lowing fields:
-9-3 RADIUS Server configuration table
The RADIUS Server configuration table includes the fol
Object Description
• Mode
To Enable/Disable the port access control administrative mode.
This selector lists the two options for administrative mode: enable and disable.
The default value is disabled.
•
The IP address of the RADIUS server being added.
RADIUS Server IP
• RADIUS UDP Port
The default UDP Port No. is
1812
The UDP port used by this server. The valid range is 0 - 65535.
• RADIUS Secret
Indicates if the shared secret for this server has been configured.
Setup the RADIUS server and assign the client IP address to the Web-Smart switch. In this case, field in the default IP
Address of the Web-Smart switch with 192.168.0.100. And also make sure the shared secret key is as same as the one
you had set at the switch RADIUS server – 123456 at this case.
99
