User’s Manual of IGS-801M

 LACP Aggregation Overview Table

The LACP Aggregatio d mapped Group. It also indicates the Partner Port

number of th

n Overview Table lists the active LACP ports an

e other LACP aware switches. The screen in Figure 4-4-4 appears.

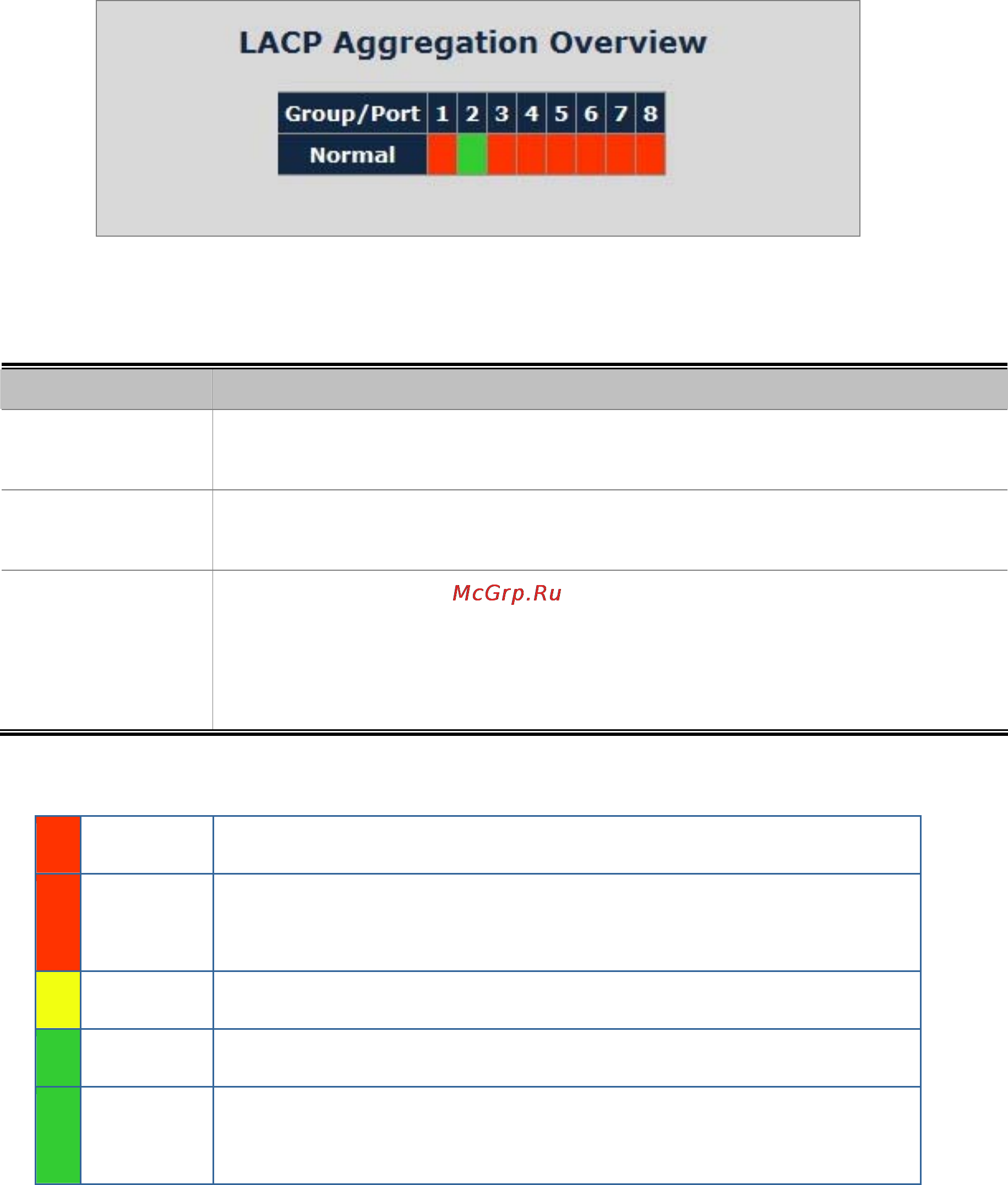

Figure 4-4-4 LACP Aggregation Overview

The page includes the following fields:

Object Description

Group / Port

Indicate port 1 to port 8.

Normal

While a port is checked as “Normal”, the port is not joining to any LACP Trunk Group.

Group #

port ID of the LACP group

Port 7 and Port 8 as a LACP group-> Group 7.

The Linked LACP aggregation group. The Group ID is the fist

member.

Ex.

The Color and ID legend

Down Port link down.

0 Blocked

Port Blocked by RSTP. Number is Partner port number if other switch has LACP

enabled.

0 Learning Port Learning by RSTP.

Forwarding Port link up and forwarding frames.

0 Forwarding

Port link up and forwarding by RSTP. Number is Partner port number if other

switch has LACP enabled.

 LACP Port Status Table

The LACP Port Status Table lists the active LACP ports and the Partner Port number with the operational Port Key value.

The screen in Figure 4-4-5 appears.
