User’s Manual of IGS-801M

2. Assign VLAN Member :

VLAN 2 : Port-1,Port-2 and Port-3

VLAN 3 : Port-4, Port-5 and Port-6

VLAN 1 : All other ports – Port-7~Port-8

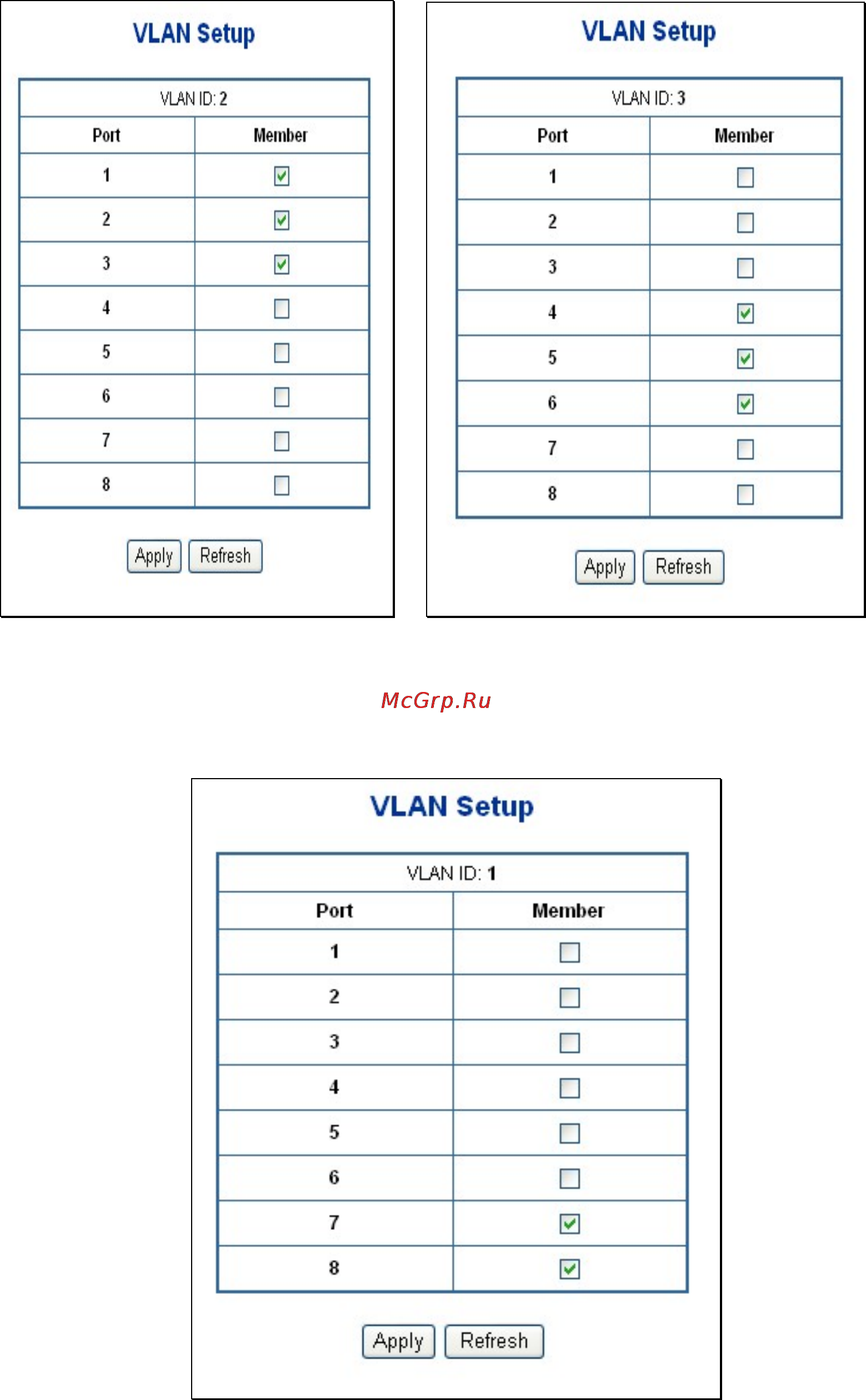

Figure 4-5-8 Assign VLAN members for VLAN 2 and VLAN 3

Remember to remove the Port 1 – Port 6 from VLAN 1 membership, since the Port 1 – Port 6 had been assigned to

VLAN 2 and VLAN 3.

Figure 4-5-9 Remove specify ports from VLAN 1 member
