User’s Manual of IGS-801M

3. Define a VLAN 1 as a “Public Area” that overlapping with both VLAN 2 members and VLAN 3 members.

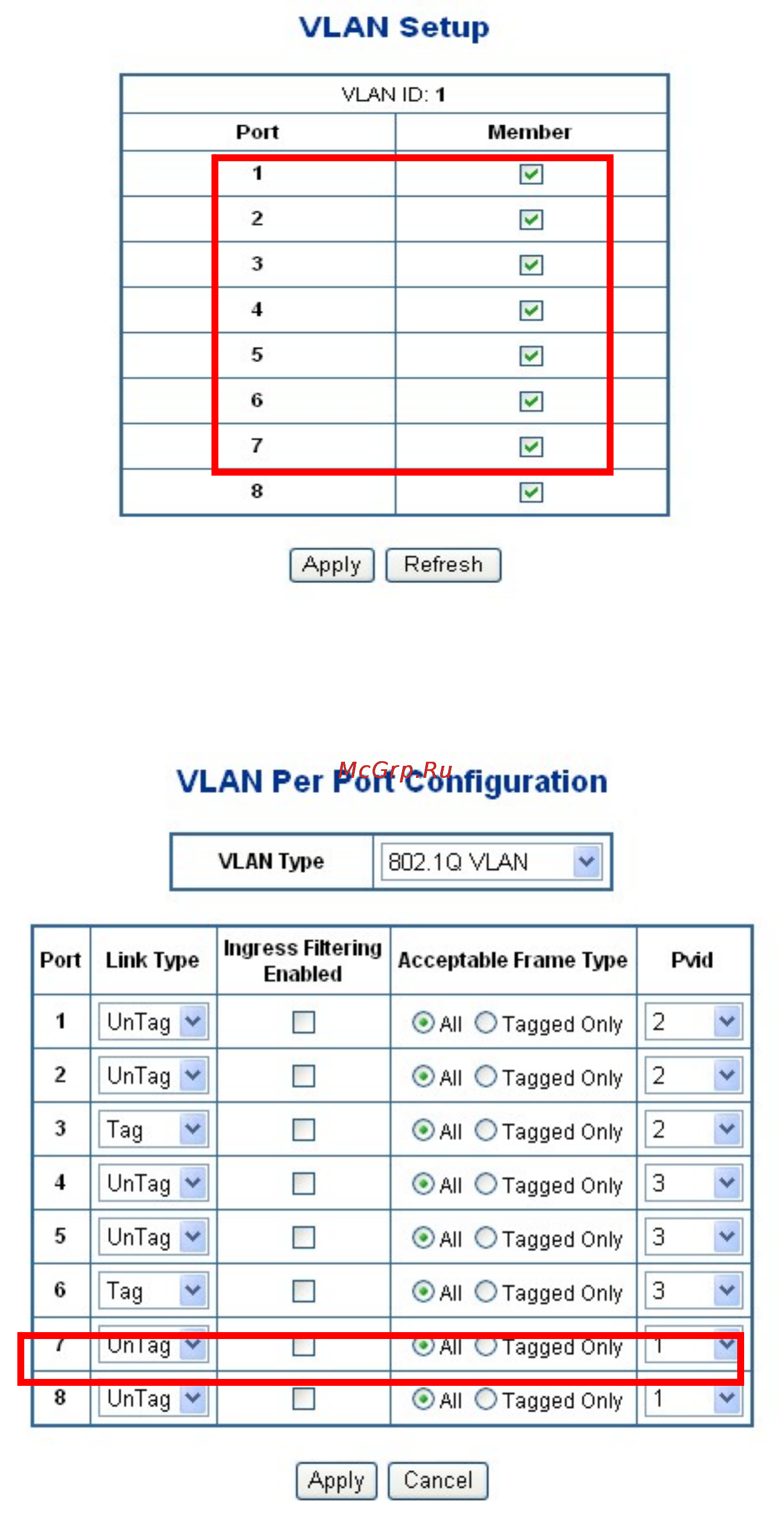

Figure 4-5-13 VLAN 1 – The public area member assign

4. Setup Port-7 with “PVID=1” at VLAN per Port Configuration page. The screen in Figure 4-5-14 appears.

Figure 4-5-14 Setup Port-7 with PVID-1
