User’s Manual of IGS-801M
The page includes the following fields:
Object Description
VLAN Id
Identifies VLANs associated with the Rapid Spanning Tree.
Bridge IDd
Identifies the Bridge priority and MAC address.
Hello Time
Minimum time between transmissions of Configuration BPDUs.
Max Age
Path Cost to the Designated Root for the spanning tree.
Forward Delay
Derived value of the Root Port Bridge Forward Delay parameter.
Topology
Specifies the Tolology change status of the current operation. If no topology
change happened, the table show “Steady”.
Root Id
Identifies the Root Bridge priority and MAC address.
RSTP Port Status
The information of the RSTP Per Port and Trunk group shows in the RSTP Port Status table. The screen in Figure 4-6-8
appears.

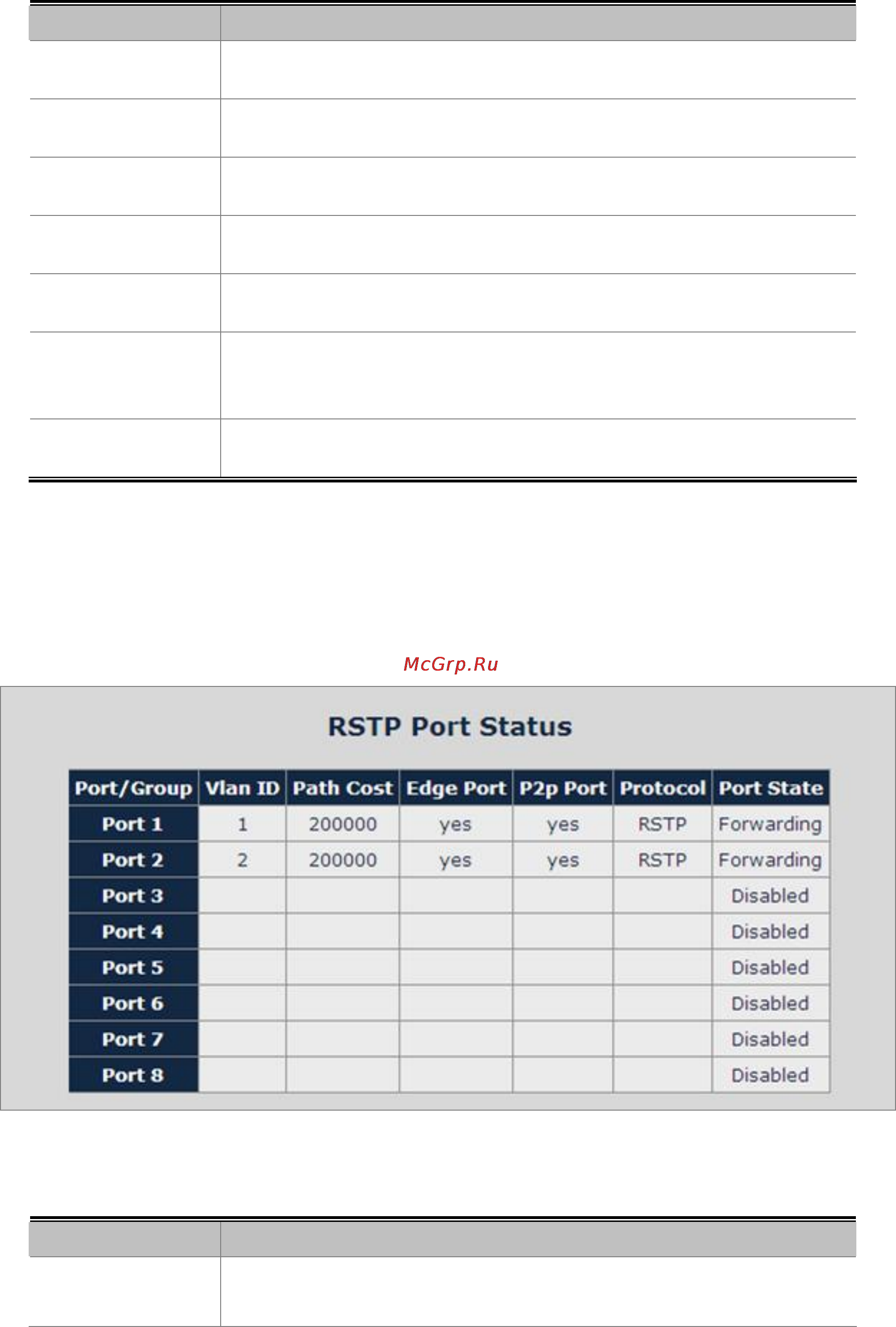

Figure 4-6-8 RSTP Status screen
The page includes the following fields:
Object Description
Port/Group
Port or Link Aggregation group on which Rapid STP is enabled
79
