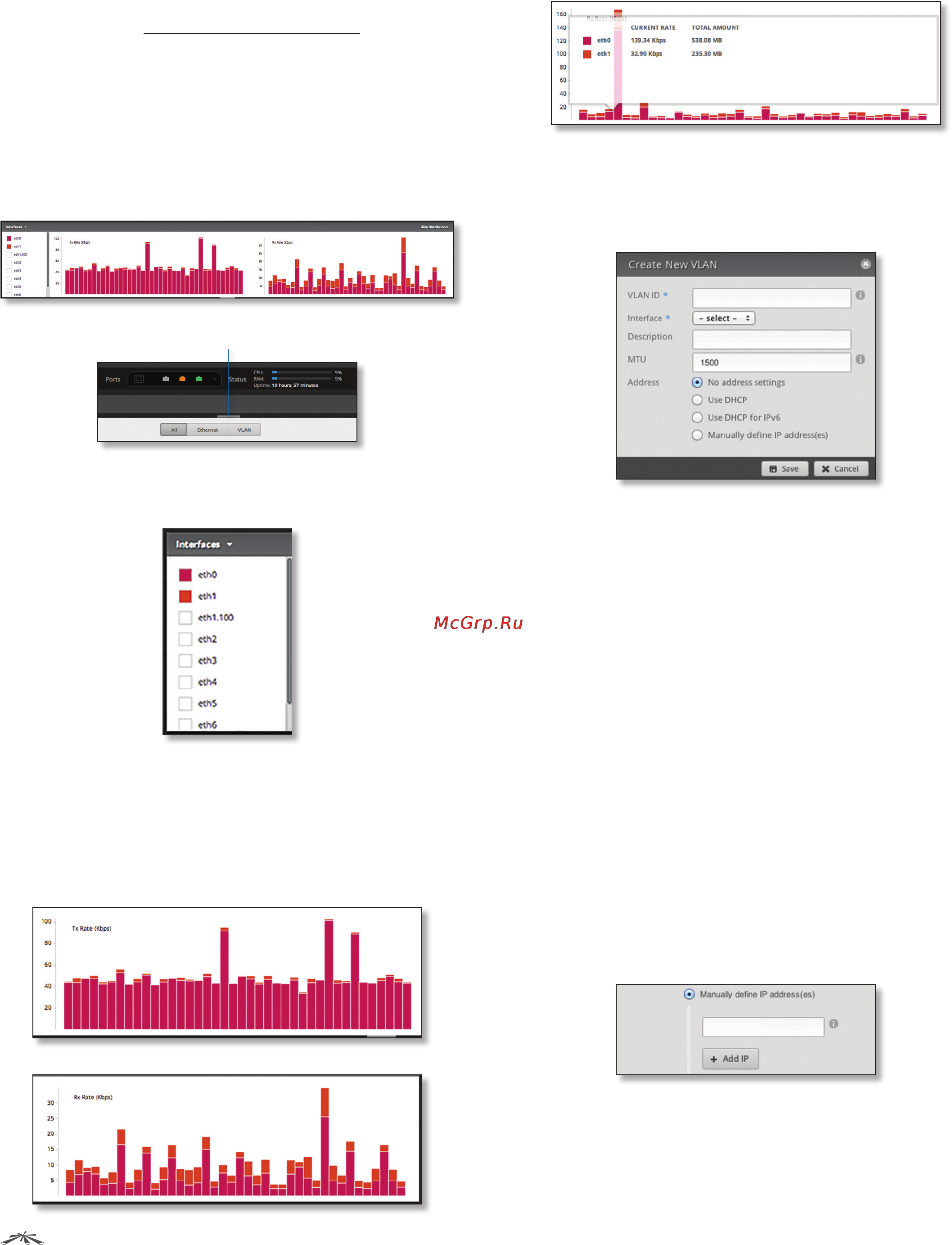

Chapter 3: Dashboard TabEdgeOS
™
User Guide
Ubiquiti Networks, Inc.
DHCP
The DHCP server status and numbers of active and
inactive servers are displayed. Click DHCP to display the
Services tab. Go to “DHCP Server” on page 30 for more
information.
Interfaces
Distribution
Click Hide Distribution to hide the Interfaces > Distribution
section. Click the remaining open/close tab to display the
Interfaces > Distribution section again.
Open/Close Tab
Select the physical or virtual interfaces you want to display
from the Interfaces column.
The TX Rate and RX Rate bar graphs display the
current data traffic, which is color‑coded to match the
corresponding interface. The graph scale and throughput
dimension (Mbps, for example) change dynamically
depending on the mean throughput value. The statistics
are updated automatically.
Place your mouse over a bar to view the Current Rate and
Total Amount of traffic for the selected interfaces.
All/Ethernet/VLAN
Add VLAN To create a new VLAN, click Add VLAN.
The Create a New VLAN screen appears.
• VLAN ID The VLAN ID is a unique value assigned to
each VLAN at a single device; every VLAN ID represents
a different VLAN. The VLAN ID range is 2 to 4094.
• Interface Select the appropriate interface.
• Description Enter keywords to describe this VLAN.
• MTU Enter the MTU (Maximum Transmission Unit)
value, which is the maximum packet size (in bytes) that a
network interface can transmit. The default is 1500.
• Address Select one of the following:
‑ No address settings The VLAN uses no address
settings. (In most cases, an address is needed.)
‑ Use DHCP The VLAN acquires network settings from
a DHCPv4 server.
‑ Use DHCP for IPv6 The VLAN acquires network
settings from a DHCPv6 server.
‑ Manually define IP address(es) Enter the
static IP address (example: 192.0.2.1/24 for IPv4
or 2001:db8::1/32 for IPv6). Click Add IP to enter
additional IP addresses.
Click Save to apply your changes, or click Cancel.
Search Allows you to search for specific text. Begin
typing; there is no need to press enter. The results are
filtered in real time as soon as you type two or more
characters.
