10
Chapter 3: Dashboard TabEdgeOS
™
User Guide
Ubiquiti Networks, Inc.
All/Ethernet/VLAN Click the appropriate tab to filter the
interfaces as needed.
• All All interfaces are displayed by default.
• Ethernet All of the Ethernet interfaces are displayed.
• VLAN All VLANs are displayed.
A table displays the following information about each
interface. Click a column heading to sort by that heading.
Description The keywords you entered to describe the
interface are displayed.
Interface The name of the interface is displayed.
Note: A switch interface is created by default
(EdgeRouter PoE only); however, there are no
switched ports by default. To configure ports for the
switch interface, click Actions > Config and go to
“Configure the Switch” on page 12.
Type The type of interface is displayed.
PoE (Available for the EdgeRouter PoE only.) The status
(off) or voltage (24v/48v) of the PoE feature is displayed.
IP Addr The IP address of the interface is displayed.
MTU The MTU (Maximum Transmission Unit) value of the
interface is displayed. This is the maximum packet size (in
bytes) that the interface can transmit.
TX The transmit speed of the interface is displayed.
RX The receive speed of the interface is displayed.
Status The connection status of the interface is displayed.
Actions Click the Actions button to access the following
options:
• Config To configure the interface, click Config.
If the interface is a physical port, go to the Configure the
Interface section.
If the interface is a VLAN, go to “Configure the VLAN”
on page 11.
If the interface is a switch (available for the EdgeRouter
PoE only), go to “Configure the Switch” on page 12.
• PoE (Available for the EdgeRouter PoE only.) To
configure the PoE settings, click PoE. Go to “Configure
the PoE Settings” on page 12.
• Disable Disable the interface while keeping its
configuration. (The switch interface cannot be disabled.)
Note: If you disable a port, its PoE functionality
remains. (This applies only to the EdgeRouter PoE.)
• Delete (Available for VLANs only.) Delete the VLAN from
the EdgeRouter configuration.

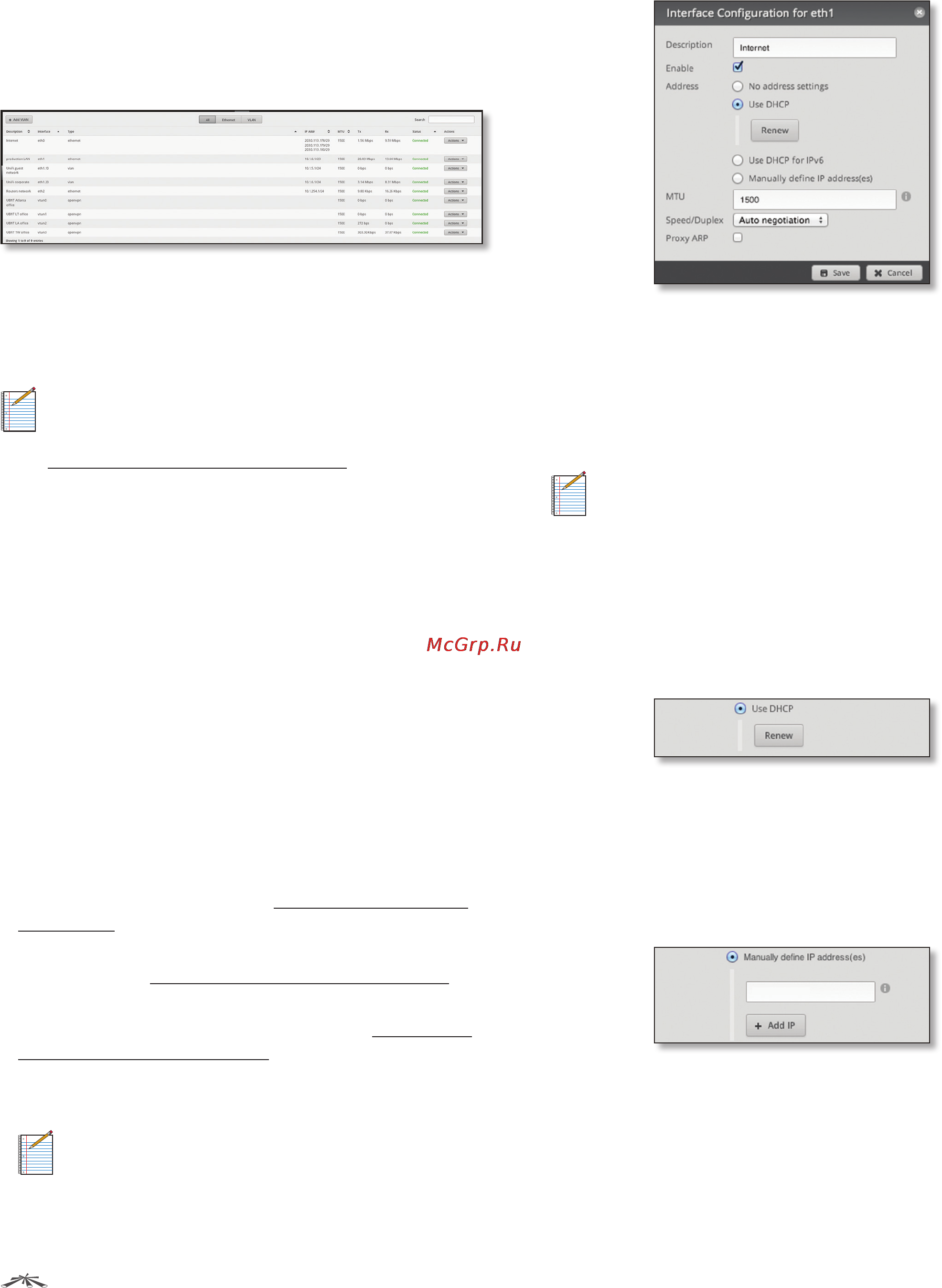

Configure the Interface
After you click Config, the Interface Configuration screen
appears.
Make changes as needed.
• Description Enter keywords to describe this interface.
• Enable Check the box to enable the interface. All of
the interfaces are saved in the system configuration file;
however, only the enabled interfaces are active on the
device.
Note: If you disable a port, its PoE functionality
remains. (This applies only to the EdgeRouter PoE.)
• Address Select one of the following:
‑ No address settings The interface uses no address
settings. (In most cases, an address is needed.)
‑ Use DHCP The interface acquires network settings
from a DHCPv4 server. Click the Renew button to
acquire fresh network settings.
‑ Use DHCP for IPv6 The interface acquires network
settings from a DHCPv6 server.
‑ Manually define IP address(es) Enter the
static IP address (example: 192.0.2.1/24 for IPv4
or 2001:db8::1/32 for IPv6). Click Add IP to enter
additional IP addresses.
• MTU Enter the MTU (Maximum Transmission Unit)
value, which is the maximum packet size (in bytes) that a
network interface can transmit. The default is 1500.
