24
Chapter 5: Security TabEdgeOS
™
User Guide
Ubiquiti Networks, Inc.
• Week Days Enter the days of the week when the rule
should be applied. Enter Sun, Mon, Tue, Wed, Thu, Fri,
or Sat. If you enter more than one day, use commas to
separate the days (example: Mon, Tue, Wed).
- Match all week days except for these Match all days
of the week except for the selected days.
• Start Date Enter the date the rule should start being
applied. Use the YYYY-MM-DD (year-month-day) format.
• Start Time Enter the time the rule should start
being applied. Use the 24-hour format, HH:MM:SS
(hours:minutes:seconds).
• Stop Date Enter the date the rule should stop being
applied. Use the YYYY-MM-DD (year-month-day) format.
• Stop Time Enter the time the rule should stop
being applied. Use the 24-hour format, HH:MM:SS
(hours:minutes:seconds).
• Interpret dates and times as UTC Check the box if
your network uses UTC.
Click Save to apply your changes, or click Cancel.
Configuration
Name The name of this policy is displayed.
Description Enter keywords to describe this policy.
Default action All policies have a default action if the
packets do not match any rule. Select the appropriate
default action:
• Drop Packets are blocked with no message.
• Reject Packets are blocked, and an ICMP (Internet
Control Message Protocol) message is sent saying the
destination is unreachable.
• Accept Packets are allowed.

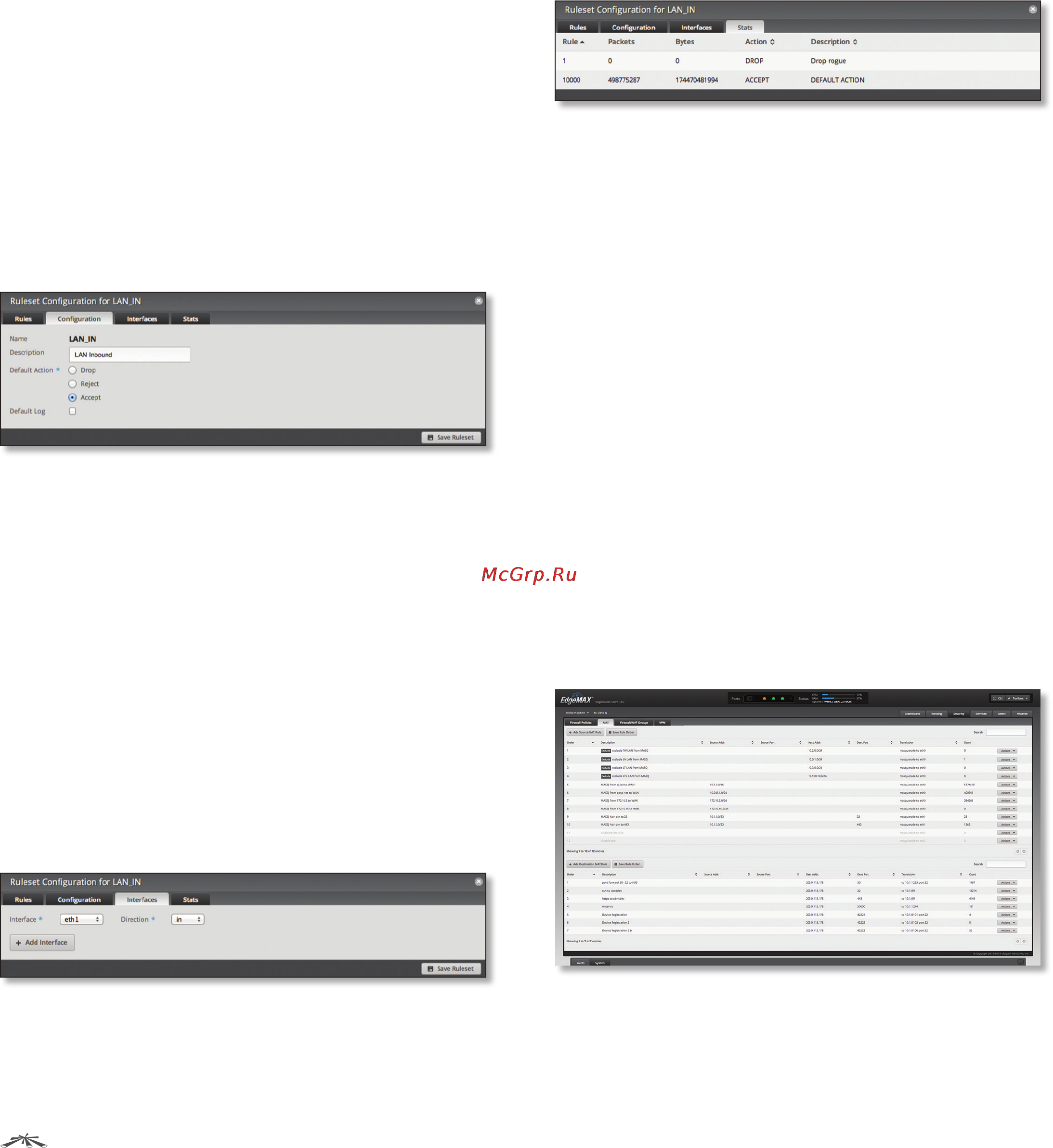

Default Log Check this box to log packets that trigger the
default action.
Click Save Ruleset to apply your changes.
Interfaces
• Interface Select the appropriate interface from the
drop-down list.
• Direction Select the direction of the traffic flow.
- in Match inbound packets.
- out Match outbound packets.
- local Match local packets.
• Add Interface Click Add Interface to enter more
interfaces.
Click Save Ruleset to apply your changes.
Stats
A table displays the following statistics about each rule.
Click a column heading to sort by that heading.
Rule The rules are applied in the order specified. The
number of the rule in this order is displayed.
Packets The number of packets that triggered this rule is
displayed.
Bytes The number of bytes that triggered this rule is
displayed.
Action The action specified by this rule is displayed.
Description The keywords you entered to describe this
rule are displayed.
NAT
NAT changes the addressing of packets. A NAT rule tells
the EdgeRouter what action to take with a specific packet.
Define the following:
• Criteria for matching packets
• Action to take with matching packets
Rules are organized into a set and applied in the specified
Rule Order. If the packets match a rule’s criteria, then its
action is performed. If not, then the next rule is applied.
