Chapter 6: Services Tab EdgeOS
™
User Guide
Ubiquiti Networks, Inc.

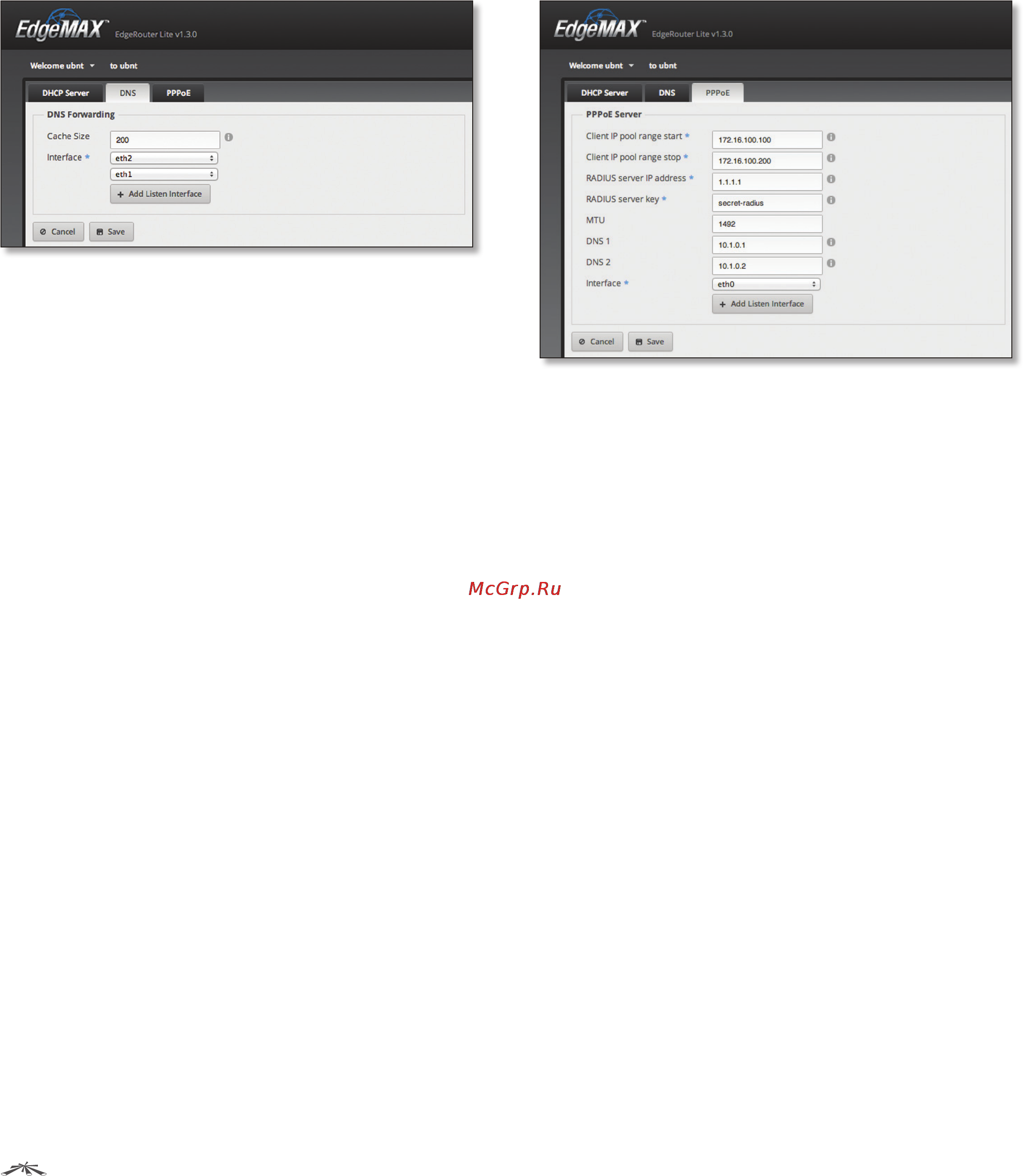

DNS
The EdgeRouter receives all LAN DNS requests and
forwards them to the service provider’s DNS server. The
EdgeRouter receives responses from the DNS server and
forwards them to the LAN clients.
DNS Forwarding
Cache Size Completed DNS requests are cached so
response time is faster for cached entries, and there is less
traffic traveling to the DNS server. Enter the maximum
number of DNS queries to cache.
Interface Select the appropriate interface that the
EdgeRouter will listen to so it can forward DNS requests.
Add Listen Interface You can select multiple interfaces.
To add another interface for DNS forwarding, click Add
Listen Interface. From the new Interface drop-down
menu, select the appropriate interface.
Click Save to apply your changes, or click Cancel.
PPPoE
The EdgeRouter can function as a PPPoE (Point-to-Point
Protocol over Ethernet) server so a remote PPPoE client
can establish a tunnel to the EdgeRouter for network
access.
PPPoE Server
Client IP pool range start The client IP pool is the pool of
IP addresses that remote PPPoE clients will use. Enter the
starting IP address of the range (this address must in a /24
subnet).
Client IP pool range stop Enter the last IP address of the
range.
RADIUS server IP address The RADIUS (Remote Access
Dial-In User Service) server provides authentication to
help secure PPPoE connections. Enter the IP address of the
RADIUS server.
RADIUS server key Enter the key shared with the RADIUS
server.
MTU Enter the MTU (Maximum Transmission Unit)
value, which is the maximum packet size (in bytes) that a
network interface can transmit. The default is 1492 for the
PPPoE connection.
DNS 1 Enter the IP address of the primary remote access
DNS server that your PPPoE client will use.
DNS 2 Enter the IP address of the secondary remote
access DNS server.
Interface Select the appropriate interface that the
EdgeRouter will listen to so it can forward PPPoE requests.
Add Listen Interface You can select multiple interfaces.
To add another interface for PPPoE connections, click
Add Listen Interface. From the new Interface drop-down
menu, select the appropriate interface.
Click Save to apply your changes, or click Cancel.
